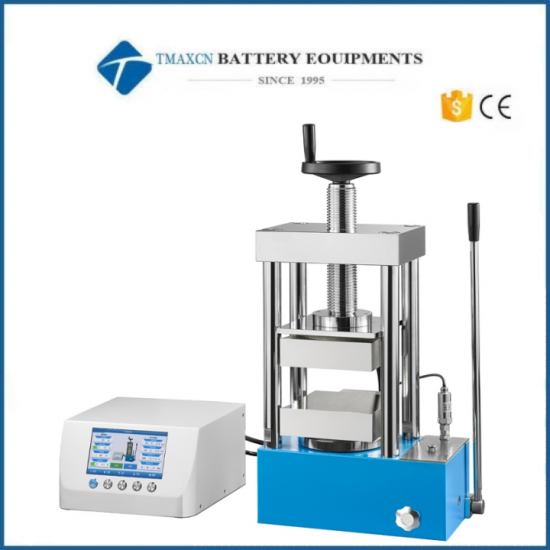

30T 300℃ Lab Manual Double Plate Hydraulic Hot Press Machine

Model Number:
TMAX-RYJ-600D
Compliance:
CE certificate
Warranty:
Two years limited warranty with lifetime support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

30T 300℃ Lab Manual Double Plate Hydraulic Hot Press Machine

The hot press is mainly used by laboratory users who need to perform high temperature and high pressure sample preparation or testing on powder samples, granular samples, plastic films, rubber materials and other solid materials. The particles or powders of the samples are heated and pressurized to make chemical It has the advantages of improved stability, not easy to break, and good for cutting and preservation. It is an ideal supporting equipment for the engineering and technical personnel of universities and research institutes to perform spectroscopy detection and analysis. This machine can be used as a machine for multiple purposes, equipped with suitable pressure molds, and can also be used as an ordinary manual powder tablet press. At the same time, the machine is also suitable for other working occasions that require corresponding pressure, as a press to test various objects The degree of pressure resistance and so on.
The RYJ-600D series double-plate electric heating tablet press is a high-temperature double-plate heat press developed by our company in accordance with market demand and based on the original old heat press. This hot-pressing tablet press has a wide range of applications and meets the needs of some customers for large tonnage pressure, especially for heating samples at high temperatures. The main engine adopts integrated patented technology, the main board, oil sump, and oil cylinder are on the same main body. There is no sealed connection, which reduces the oil leakage point and reduces the oil leakage probability of the heat press. It is deeply loved by users at home and abroad.

Technical parameters

Model	RYJ-600D1	RYJ-600D2	RYJ-600DG1	RYJ-600DG2
Pressure range	0-30T（0-31.5MPa）
Pressure conversion	1T=1.05Mpa
Piston diameter	Φ110mm chrome-plated cylinder
Max. cylinder stroke	40mm

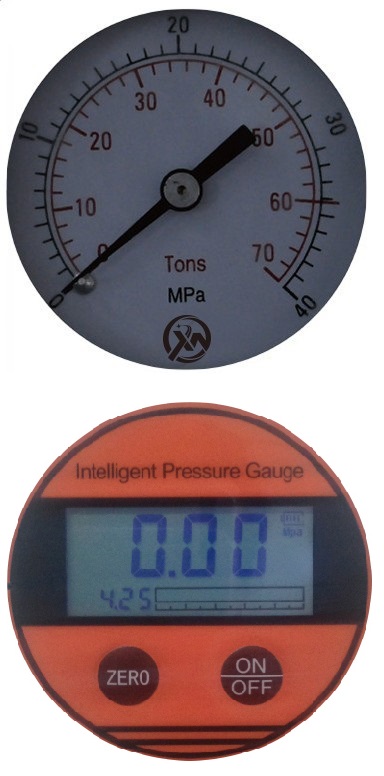

Pressure gauge Type	Pointer gauge, double scale display of pressure tonnage and pressure MPa
Digital pressure gauge	Digital display 0.00-40.00Mpa/0.01Mpa (optional, only "S" type)
Pressure method	Manual pressure
Thermostat type	PID temperature controller
Number of thermostats	2 sets
Temperature control range of thermostat	RT -600.0℃/0.1℃
Mold heating type	Heating of upper and lower two plates (double plate/polished surface)
Mold heating temperature	RT-300.0℃		RT-500.0℃
Mold cooling method	Water cooling		Water cooling
Equipment insulation method	Imported heat insulation board		Imported heat insulation board + stainless steel water-cooled heat insulation board
Heating mold size	180×180mm	200×200mm	180×180mm	200×200mm
Power	220V/1000W		220V/2000W
structure	Split structure
Host size	405×260×525mm
over dimension	1200×470×525mm
Weight	About 200kg
Standard configuration	1 press machine, molds are purchased separately

Pressure conversion table

Model No.	RYJ-600D manual heat press pressure conversion table
Actual output pressure	Pressure gauge system pressure	Pressure gauge type
1 T	1.05 MPa
3 T	3.10 MPa
5 T	5.20 MPa
8 T	8.40 MPa
10 T	10.5 MPa
15 T	15.7 MPa
20 T	21.0 MPa
25 T	26.3 MPa
30 T	31.5 MPa
Pressure calculation formula	The area of the oil cylinder/the area of the mold × the reading of the pressure gauge = the actual pressure of the mold (Mpa)
Note	The system pressure (ie pressure gauge reading) should not exceed 31.5MPa, otherwise it will affect the service life of the equipment
