25T 300℃ Lab Automatic Double Plate Hot Press Machine

  • Model Number:

    TMAX-RYJ-600Z1
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

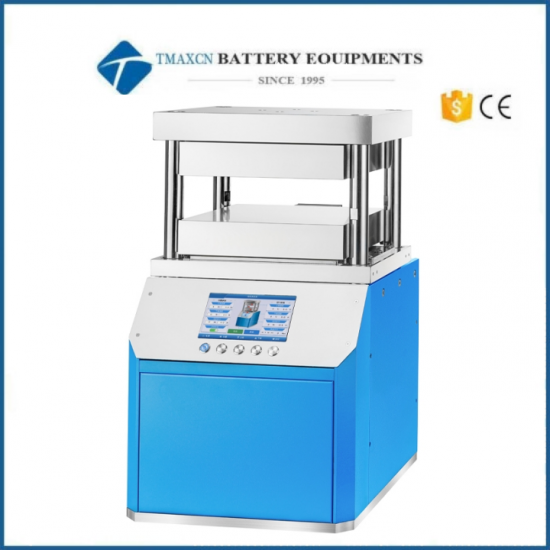

25T 300℃ Lab Automatic Double Plate Hot Press Machine


RYJ-600Z series electric heating tablet press is a fully automatic, integrated, widened hot press developed by our company in accordance with market demand, based on the original manual hot press and split hot press . This hydraulic machine is widely used to meet the needs of some customers for large tonnage pressure and large area sample heating. The hot press is mainly used in some laboratories and units that need to perform high temperature and high pressure sample preparation or testing on powder samples, granular samples, plastic films and other solid samples. The particles or powders of the samples are heated and pressurized to make them chemically stable It has the advantages of improved performance, not easy to break and good for cutting and preservation. It is an ideal supporting equipment for the engineering and technical personnel of various universities, colleges and research institutes to carry out spectroscopy detection and analysis.


Technical parameters

Model

RYJ-600Z1

RYJ-600Z2

RYJ-600Z3

RYJ-600Z4

Pressure range

1-25T/0.1t

1-30T/0.1t

1-50T/0.1t

Pressurization process

Fully automatic, program pressurization/slow pressurization-program pressure maintenance-program pressure compensation-timing pressure relief

compress time

0-999.59(min, s)

Temperature control range of thermostat

RT -600℃

Thermostat display accuracy

0.1℃

Mold heating temperature

RT-300.0℃

Insulation method

Imported insulation board

Mold cooling method

Rapid cooling by water cooling cycle (optional for water cooler)

Heating mold size

80×180mm

200×200mm

300×300mm

400×400mm

Dimension

280×420×620mm

280×420×620mm

400×500×720mm

500×600×760mm

Power

220V/2000W

220V/2000W

220V/3000W

220V/6000W

Weight

About 150kg

About 160kg

About 300kg

About 400kg

structure

Integrated structure, fully automatic program control pressure and temperature

Heating mold type

Double plate heating up and down

Number of heating mold

Two heating plates up and down, polished surface

Note: A larger size double-plate heat press can be customized according to customer needs! ! !
