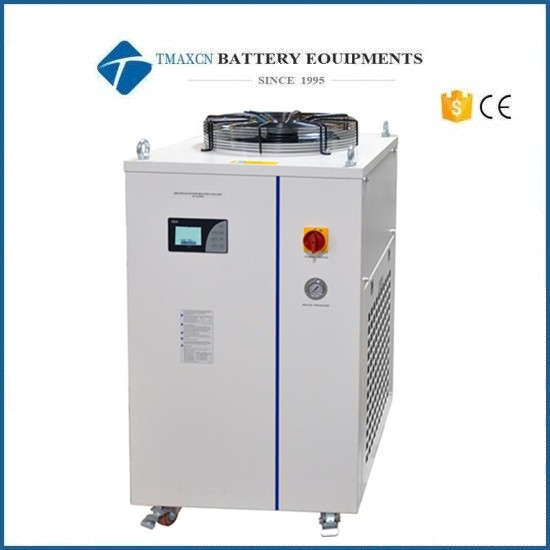

58L / min Flow, 17K BTU/hr Larger Digital Temperature Controlled Recirculating Water Chiller

  • Model Number:

    TMAX-KJ6200
  • Input Power:

    800W
  • Dimension(L*W*H):

    60 X 47 X 89 cm
  • Net Weight:

    About 300 lbs
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • :

    Xiamen Port
  • Delivery Time:

    10 days
contact now
DESCRIPTION

Larger Digital Temperature Controlled Recirculating Water Chiller


TMAX-KJ6200 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 58L/min  ( 15 G/min ). It eliminates scale buildup, sewerage cost, and tap water cooling expenses.
This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy moving. Temperature range can be adjusted from 5 to 35°C.


SPECIFICATIONS:

Power Supply AC 208 -240V ( 50Hz or 60Hz can be selected in options bar ).
Max Power Input 800W
Cooling Capacity 5004W (17500Btu/hour)
Compressor Rotary Compressor (1.68 KW)
Refrigerant R22
Temperature Control 5~30 °C
Temperature Accuracy ± 0.3 °C
Heating Exchanger Stainless steel
Water Flow Rate (Head Pressure) 58 Liter / minute    ( 28 meters high, 40psi )
Water Tank
  • 15 Liters  made of stainless steel
  • Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.
  • Use coolant instead of water for longer service life.
  • Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
Pipe Connection
  • Φ12mm PTC connector
  • 8mm I.D, 12mm O.D. polyurethane tube is included
 Water Filter
  • One water filter is included for immediate use.
  • Replace water filter every 3 to 6 months based on water quality and usage. Please click pictures below to learn more.
    Noise 80dBA
    Protection Protected from over-temperature and Min 2 L/min water flow
Overall Dimensions 60 X 47 X 89 cm
Shipping Weight 300 lbs
Compliance
  • CE approval
  • MET Certification (UL 1450) is available upon request at extra cost, please contact our sales representatives for a quote.
Warranty  One-year limited warranty with lifetime support
Application Notes
  • Must use Rust Protection coolants to prevent rust and corrosiom The use of tap water is prohibited.
  • Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction







 battery equipment

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
