16L/min Flow , 7K BTU/hr Middle Size Digital Temperature Controlled Recirculating Water Chiller

  • Model Number:

    TMAX-KJ5300
  • Input Power:

    600W
  • Dimension(L*W*H):

    59 X 38 X 74 cm
  • Net Weight:

    About 50Kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • :

    Xiamen Port
  • Delivery Time:

    10 days
contact now
DESCRIPTION

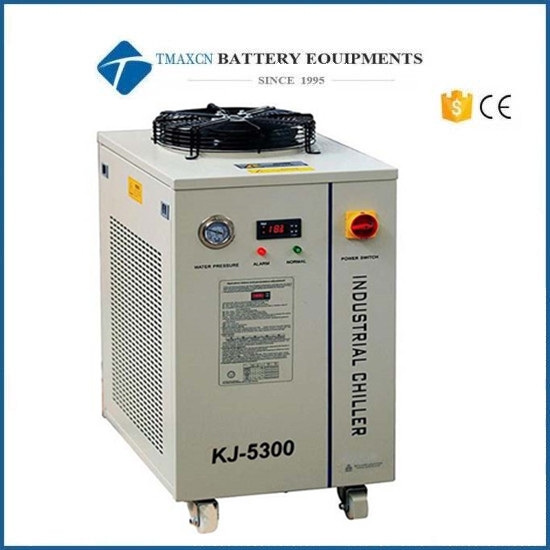

Middle Size Digital Temperature Controlled Recirculating Water Chiller

 TMAX-K5300 recirculating chiller provides a clean, reliable source of temperature-controlled fluid for both open tanks and closed loop systems up to 16L/min. It eliminates scale buildup, sewerage cost, and tap water cooling expenses. This recirculating chiller provides high cooling at low cost and has a convenient digital reading and setting display. The standard magnetic drive centrifugal pump quietly produces high flow at moderate pressure. Positive displacement pump models provide less flow but have higher adjustable pressure for more demanding applications. Chiller has a temperature stability of ± 0.3°C and four wheels on the bottom for easy transport. Temperature range can be adjusted from 5 to 35°C.


SPECIFICATIONS:

Power Supply AC 110V or 220V AC 50/60Hz ( please select in the options bar ).
Working Current
  • 220V: 0.8~4.5A
  • 110V: 1~6.5A
Compressor Power 0.6 KW (0.8HP)
Cooling Capacity 2000W (7000Btu/hour)
Refrigerant R22/R410-a (650g)
Temperature Control 5~30 °C
Temperature Accuracy ± 0.3 °C
Heating Exchanger Stainless steel
Water Pump Power 0.1KW
Water Flow Rate (Head Pressure) 16 Liter / minute    ( 25 meters high, 35psi )
Water Tank & Water
  • 12 Liters made of stainless steel
  • Water chiller should not be connected to a system with the capacity more than the tank's capacity itself.
  • Use coolant instead of water for longer service life.
  • Do not use deionized water as the cooling agent, DI water may cause the copper pipe to corrode, mainly pitting, and leak over time.
Pipe Connectors
  • Φ12mm PTC connector
  • 8mm I.D, 12mm O.D. polyurethane tube is included

Water Filter
  • One water filter is included for immediate use.
  • Replace water filter every 3 to 6 months based on water quality and usage. Please click pic below to order

Protection Protected from over-temperature and Min 2 L/min water flow
Net Weight 50Kg
Overall Dimensions 59 X 38 X 74 cm
Shipping Dimensions 48" x 40" x 40"
Shipping Weight 250 lbs
Compliance
  • CE approval
  • MET Certification (UL 1450) is available upon request at extra cost, please contact our sales representatives for the quote.
Warranty  One year limited warranty with lifetime support
Application Notes
  • Must use Rust Protection coolants to prevent rust and corrosion.
    The use of tap water is prohibited.
  • Please connect the chiller water outlet to the equipment water inlet, and the chiller water inlet to the equipment outlet. Otherwise, the water flow sensor on the equipment may fail to work due to wrong water flow direction
