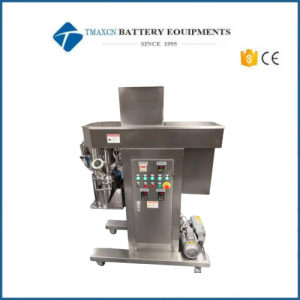

5L Vacuum Planetary Mixer for Battery Slurry Mixing
Model Number:
TMAX-QG -5LType:
Planetary Mixer MachineMax. Loading Capacity:
5L/30L/60LNet Weight:
About 300kgCompliance:
CE certificateWarranty:
2 Years with lifetime supportDelivery Time:
3 days

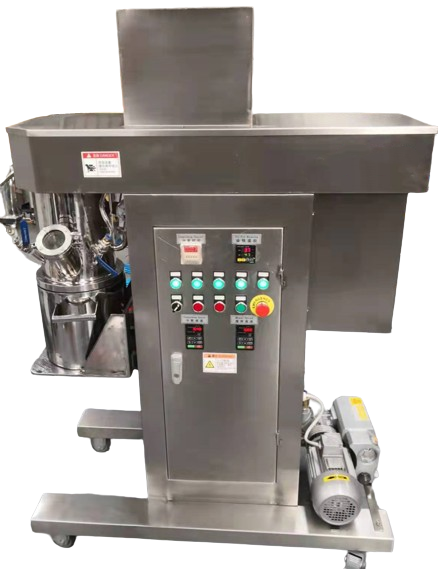

5L Vacuum Planetary Mixer for Battery Slurry Mixing
Section
Description
1-1 Product Name and Model
A. Planetary Mixer;
B. Specification/Model: TMAX-QG -5L
1-2 Basic Structure
A. Motorized pot body lifting type;
B. Single direct temperature measurement mode;
C. Dual stirring shafts
1-3 Barrel (Mixing Barrel)
A. Design volume: 10L; Effective volume: 5L;
B. Material: Inner liner and outer layer are SUS304;
C. Inner liner mirror polished for good roundness;
D. Matching flange on top of mixing barrel with upper barrel flange; E. Pure jacket direct cooling/heating with G1/2" inlet/outlet; jacket suitable for cold/hot water (oil)
1-4 Upper Barrel Body (Kettle Lid)
A. Material: SUS304;
B. One powder/liquid hopper that can be quickly opened/closed; with spotlight, two small windows for viewing and light, reserved vacuum pressure gauge port, among other necessary ports
1-5 Mixing Principle
Dual stirring paddles with low clearance design prevent dead angles and ensure thorough mixing with kneading interference and circular motions
1-6-1 Revolving/Stirring Motor and Inverter, Reducer
A. One unit;
B. Motor power: 1.5Kw/4P;
C. Inverter for variable speed control;
D. Reducer with ratio I=40.26, service factor fa=1.55
1-6-2a Planetary Revolving Speed
0~48rpm, adjustable
1-6-2b Wall Scraper (Optional)
One set;
Scraper material: SUS304 and Teflon; matches planetary revolving speed
1-6-3 Clearance Reference Values (Non-mandatory)
A. Stirring paddle and blade: 10±2.5 mm;
B. Paddle and bottom: 2~6 mm;
C. Paddle and barrel wall: 5±1.5 mm
1-7-1 Mixing Shaft/Paddle Speed
Speed: 0~86rpm, adjustable
1-7-2 Mixing Paddles
A. Material: SUS304; B. Quantity: Two (sets)
1-7-3 Mixing Paddle Type Option
A. Optional: Twisted blade
1-8-1 Dispersion Motor
1.5KW
1-8-2 Dispersion Speed (Revolution)
High-speed dispersion, (dispersion speed is 3000rpm)
1-8-3 Dispersion Shaft and Disk
Diameter: 60mm
1-9 Lifting (Pot Body)
A. Electric lifting with linear guide rails, positioning device; safe and reliable positioning;
B. Lifting motor power: 0.18KW
1-10 Vacuum System
A. Mixing and dispersion can be carried out under vacuum; Vacuum degree: ≤-0.95Mpa;
B. Vacuum pump selected based on actual working conditions;
C. Dynamic sealing: Mechanical seal; D-2 Static sealing: O-ring seal;
D. Sealing material: Dynamic sealing in PTFE and fluoro rubber combination; static sealing in fluoro rubber;
E. Can maintain pressure for 12 hours without oil leaks into the barrel during mixing or pressurized state
1-11 Positioning System
A. Equipped with positioning adjustment and locking devices, precisely locates the mixing barrel and the upper barrel, preventing rotation;
B. Precise fit between the lower flange of the upper barrel and the positioning lug of the stirring barrel ensures reasonable position and accurate positioning
1-12 Distribution Cabinet
Functions such as vacuum device operations, variable frequency speed control, temperature display (control), lighting, lifting, emergency stop, etc., are displayed and operated on the distribution cabinet; Note: Dispersion has a timing function (optional, recommended for the user, not included in the regular design)
1-13 Safe Operation
A. Relying on the inverter and limit switches, the upper barrel automatically stops when it reaches the set position through a specially designed control route;
B. The mixing and dispersion cannot start while the upper barrel is raising, and similarly, the upper barrel cannot lift while mixing materials and cannot open the mixing barrel;
C. The circuit design including proximity switches ensures that the planetary components cannot lift under vacuum;
D. Special vacuum buffer tank design prevents backflow of vacuum pump oil into the mixing barrel
1-14 Temperature Measurement
0-300℃, the temperature probe is located on the barrel wall near the bottom, in direct contact with the material
1-15 Main Engine Total Power
4.2KW;
Working voltage/frequency: 380V/50Hz/3Phase;
Control voltage: 220V
1-16 Overall Dimensions
Length × Width × Height: Refer to drawings;
Weight: Approximately 400KG
