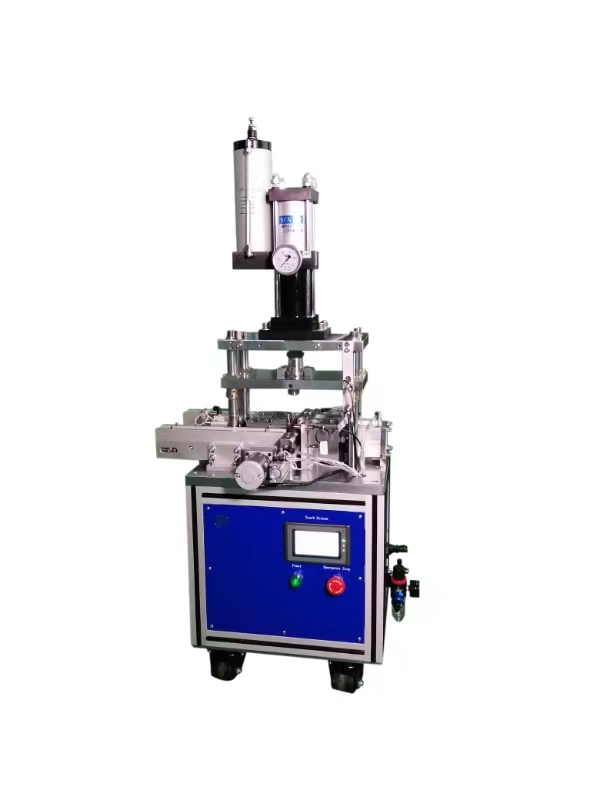

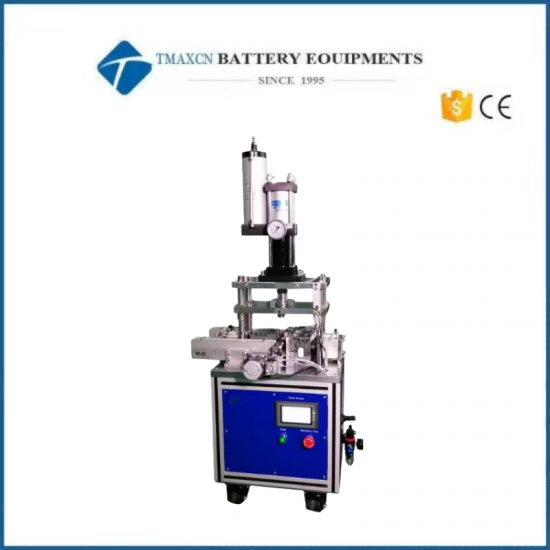

Lab Automatic 18650 Cylindrical Cell Crimper Electric Sealing Machine For Battery Assembly
Model Number:
TMAX-ZDFK700Type:
Automatic Crimping MachineDimension(L*W*H):
555mm X410mm X255mmNet Weight:
200kgCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Lab Automatic 18650 Cylindrical Cell Crimper Electric Sealing Machine For Battery Assembly
Overview
Features
*PLC touch screen operation, easy to set parameters, high degree of automation;
*Through one, two, and three squat sealing, the sealing edge is flat, with good airtightness, high dimensional accuracy, high efficiency, and good consistency
*The precise mold design ensures accurate and reliable sealing and forming, and the sturdy steel structure design ensures stable and safe use.
*Replacing the mold can process seals for various types of cylindrical batteries, such as 18650, 26650.21700
*Beautiful appearance, easy maintenance, with advantages such as small volume, easy operation, and accurate molding.
Specifications
*Sealing mold: Standard 18650 series packaging mold, optional with other specifications
*Sealing pressure: Max.3000Kg;
*Processing accuracy: ± 0.1mm
*Mold lifespan:>3 million times
*Capacity: 6PCS/min
*Power supply configuration: 220v/50Hz, power 100W
*Compressed air: 0.5MPa~0.7MPa
*External dimensions: 555mm X410mm X255mm
*Weight: 200kg
