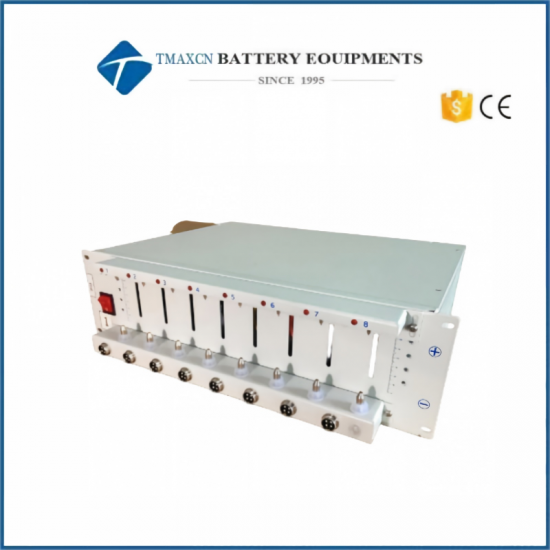

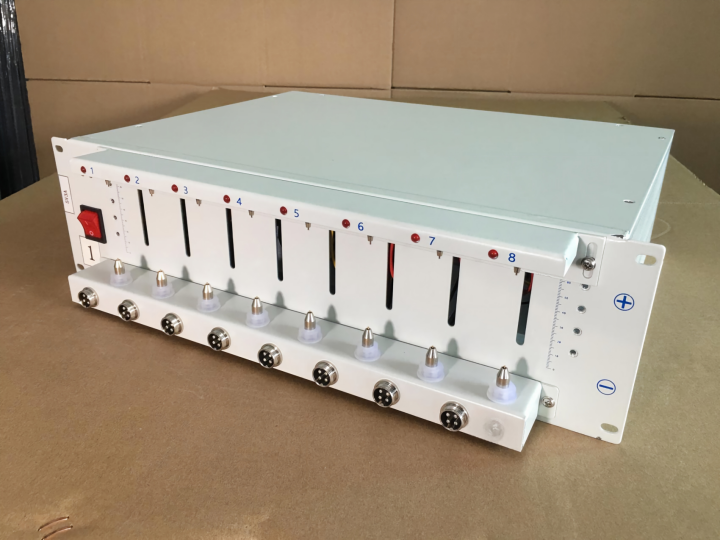

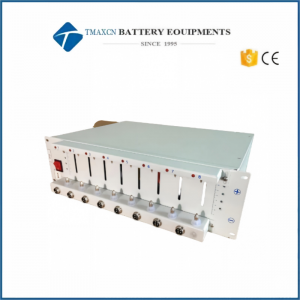

5V50mA 8 Channel Battery Analyzer Testing Machine

Model Number:
TMAX-5V50mA-08CH
Compliance:
CE certificate
Warranty:
Two Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 Days

contact now

Email:David@battery-equipments.com
Whatsapp:+86 18659217588
Wechat:18659217588

DESCRIPTION

5V50mA 8 Channel Battery Analyzer Testing Machine

1. TMAX-5V50mA Battery Test Equipment is an eight-channel battery analyzer to analyze small coin cells with a range current 0-50mah, voltage 0-5v. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software.

2. This coin cell tester system provides most applications in battery testing fields such as electrode materials research, battery performance test, small scale battery formation, capability grading, battery pack testing, etc.

3. The coin cell tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.

The triple range greatly improves the accuracy of the battery tester, and more importantly, realizes the CVD (constant voltage discharge) function. At the same time, it also helps customers save costs. At present, there are 5V10mA/50mA/6A/12A to choose from, and more models will be launched soon.

I. Technical Specifications:

Indicator Items			Indicator Parameters
unit type			TMAX-5V50mA-08CH
specification of equipment			5V/1mA/10mA/20mA/50mA
Number of equipment channels			8 channel
Channel Control Method			Each channel is independently controlled, with four-wire acquisition for current and voltage measurements.
Channel Characteristics			The constant current source and constant voltage source employ a dual closed-loop structure.
input impedence			≥1MΩ
voltage	voltage scope	charge	10 mV–5 V (Equipment port)
		discharge	0.75V–5V (equipment port); the minimum discharge voltage depends on the cable length.
	accuracy		±0.05% of FS, ambient temperature: 15°C–35°C
Current	Current scope	charge	0.1mA-50mA
		discharge	0.1mA-50mA
	accuracy		±0.05% of FS, ambient temperature: 15°C–35°C
power	Single-channel output power		0.2W
	stability		0.2% of FS
time	Current response time		≤10ms
data take notes	Recording frequency		1Hz
	Data recording conditions		Minimum time interval: 1S
			Minimum voltage interval: 1 mV
			Minimum current interval: 1 mA
charge	Charging Mode		Constant current charging, constant voltage charging, constant current–constant voltage charging, and constant power charging
	cut-off condition		Voltage, current, relative time, capacity, -ΔV
discharge	Discharge Mode		Constant current discharge, constant power discharge, and constant resistance discharge
	cut-off condition		Voltage, current, relative time, capacity, -ΔV
impulse pattern selectable	charge		Constant Current Mode, Constant Power Mode
	discharge		Constant Current Mode, Constant Power Mode
	Minimum pulse width		Recommended: 5S or higher
	cut-off condition		Voltage, Relative Time

Indicator Items		Indicator Parameters
DCIR	DCIR (Optional)	Supports custom point selection for DCIR calculation
recurrence	cycle test	Up to 399 commands can be configured, and up to 65,535 loops can be set.
	loop nesting	Supports up to 5 levels of nested loops
protect	software protection	Supports power failure data protection
		Supports restart boot (requires a UPS power supply)
		Overvoltage protection, Undervoltage protection, Capacity protection, Overcurrent protection, Undercurrent protection
		Anti-reverse connection protection
Data Export Method		Excel、PDF
cooling-down method		forced air cooling
Equipment noise		≤50dB
Communication method with the host computer		network
outline dimension
display screen
system requirements		Windows XP and later versions

II. Equipment Operating Environment Requirements:

Indicator Items	Indicator Parameters
operating temperature range	0℃-40℃
Storage temperature range	-10℃-50℃
Work environment relative humidity	≤70% RH (no water vapor condensation)
Storage environment relative humidity	≤80% RH (no water vapor condensation)
Enter active power	80W
Input power supply	AC 220V ±10%/50Hz; other power supply specifications are available upon request.

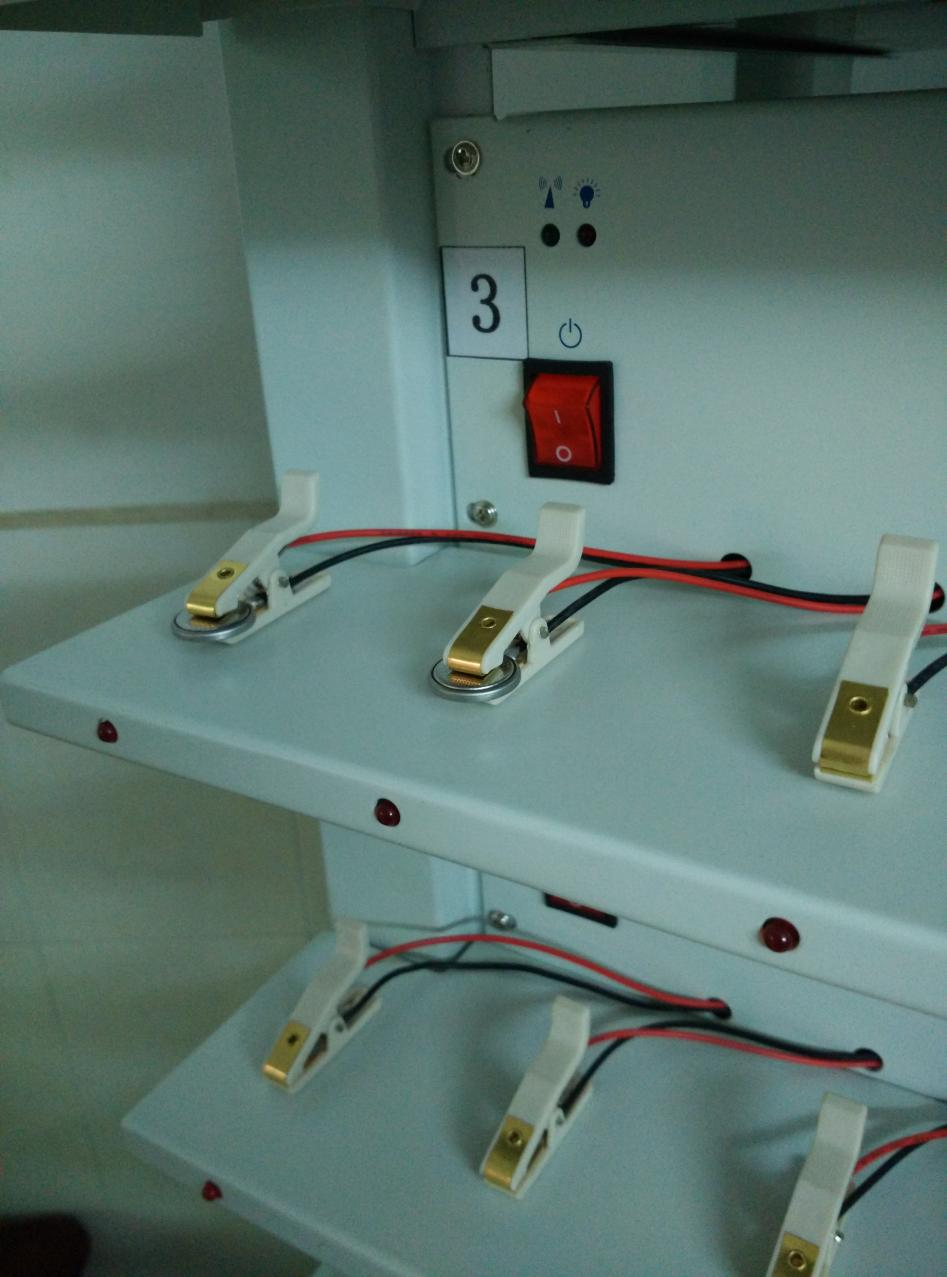

Fixture type	Button fixture, polymer fixture, or clamp fixture – any one of these options is optional.
Other requirements

battery equipment
