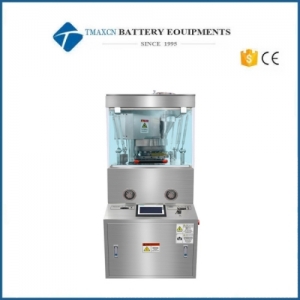

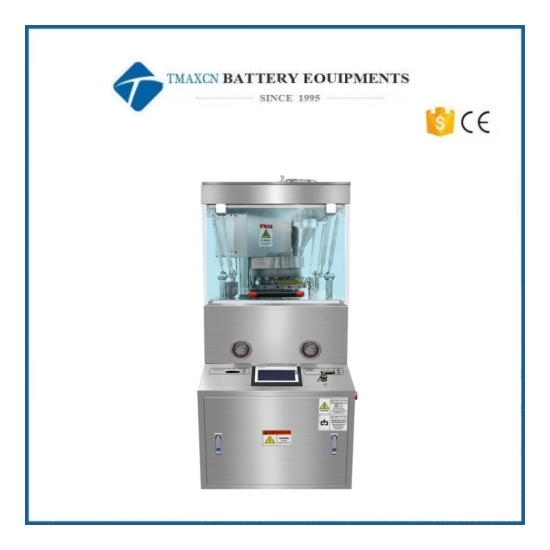

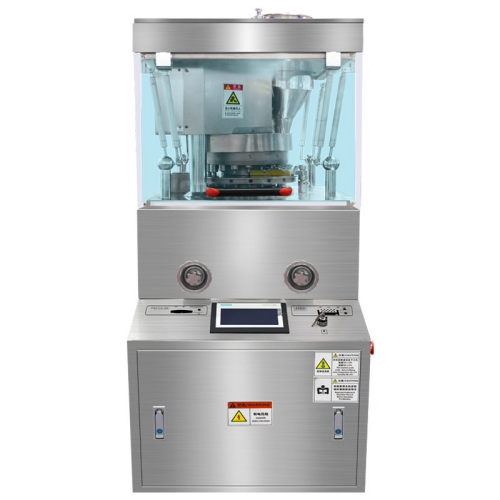

60KN 37800pcs/H Automatic Rotary Tablet Punching Press Equipment

60KN 37800pcs/H Automatic Rotary Tablet Punching Press Equipment

Introduction

ZP-17D Series tablet press machine is a kind of automatic rotary tablet press machine and is suitable for continuously highly pressing powder and particle into tablets, it is a enhance version of ZP-10,the pressure can reach 10oKN,Max diameter is 30mm,Equipped with pressure overload protection device. lt is the preferred product in pharmaceutical, chemical, electronics,food and other enterprises in middle and large production.

Main Features

This machine has high pressure and large tablet range, and can compress tablets of various shapes, such as ordinary, irregular and circular shapes.

ZP-17D series tablet press is equipped with pressure overload protection device, once overloaded, it will automatically stop to avoid equipment damage.

This tablet press is equipped with a turntable double suction, with six suction ports up and down, with good powder removal effect and a clean surface of the turntable.

The turntable is made of nodular cast iron QT5oo, pressed by solid bar material, with strong hardness, heat resistance, wear resistance and good system stability.

The oil intrusion lubrication transmission mechanism has low noise and good lubrication effect.

Technical parameters
