Aluminum Laminated Film Pouch Cell Case Forming Machine with Optional Die

  • Model Number:

    TMAX-SCK200
  • Type:

    Punch Forming Machine
  • Dimension(L*W*H):

    300mm(L) x 250mm(W) It can be customized
  • Net Weight:

    200kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

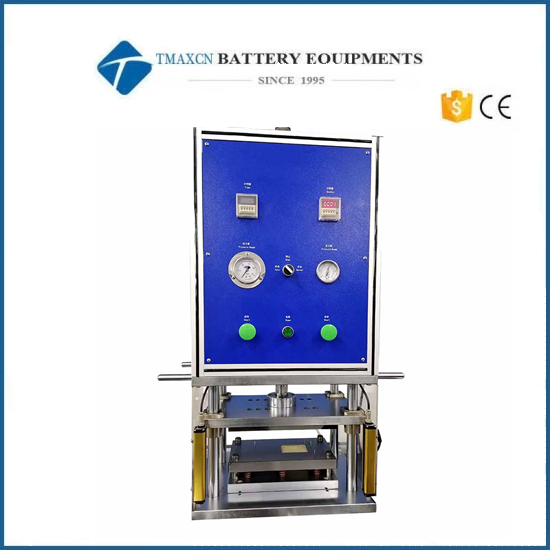

Aluminum Laminated Film Pouch Cell Case Forming Machine with Optional Die


TMAX-SCK200 is pouch cell forming machine used in the production line of making pouch cell batteries with optional size range. It is used to prepare polymer cases made of Aluminum Laminated Films. To ensure continuity and compatibility for customer's research, adjustable depth (spacers is included in standard package) to directly match the electrodes cut by electrode cutting machine.

1 TMAX-SCK200 Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the of making pouch cell batteries.

2 The machine is used to prepare polymer cases made of Aluminum Laminated Films.

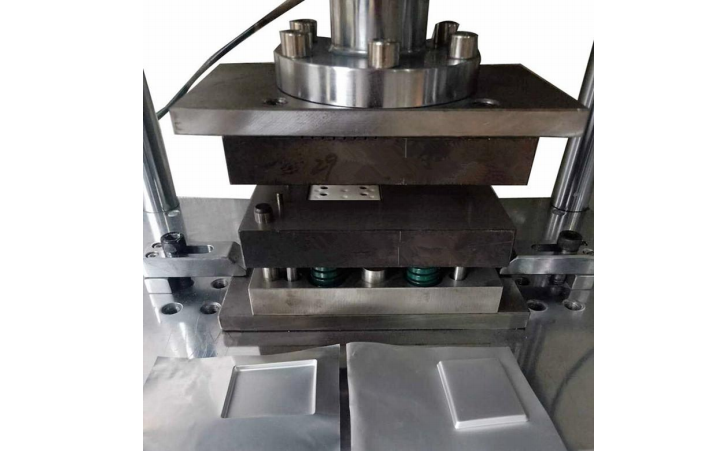

3 This lab aluminum laminated film pouch forming machine is designed with simple Spring mold with a customized size, which is more suitable for lab research.


Specifications

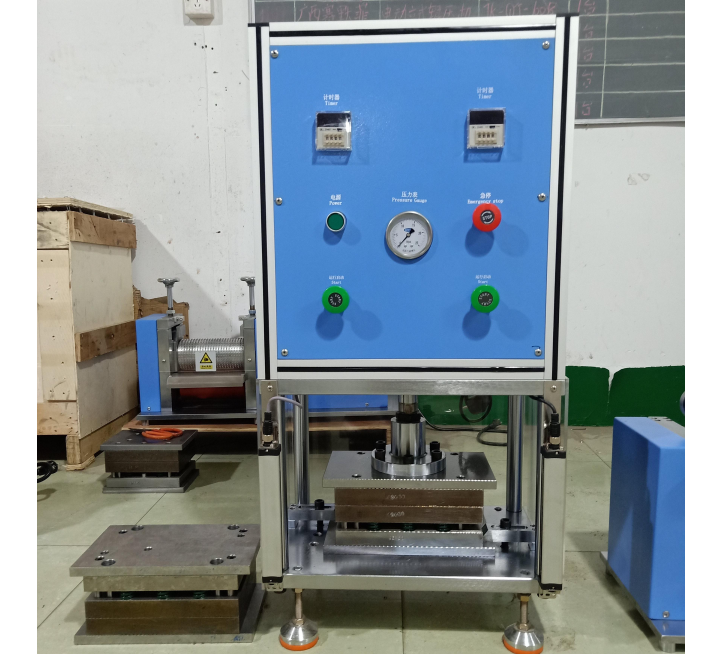

Pouch Cell Case/Cup Forming Machine

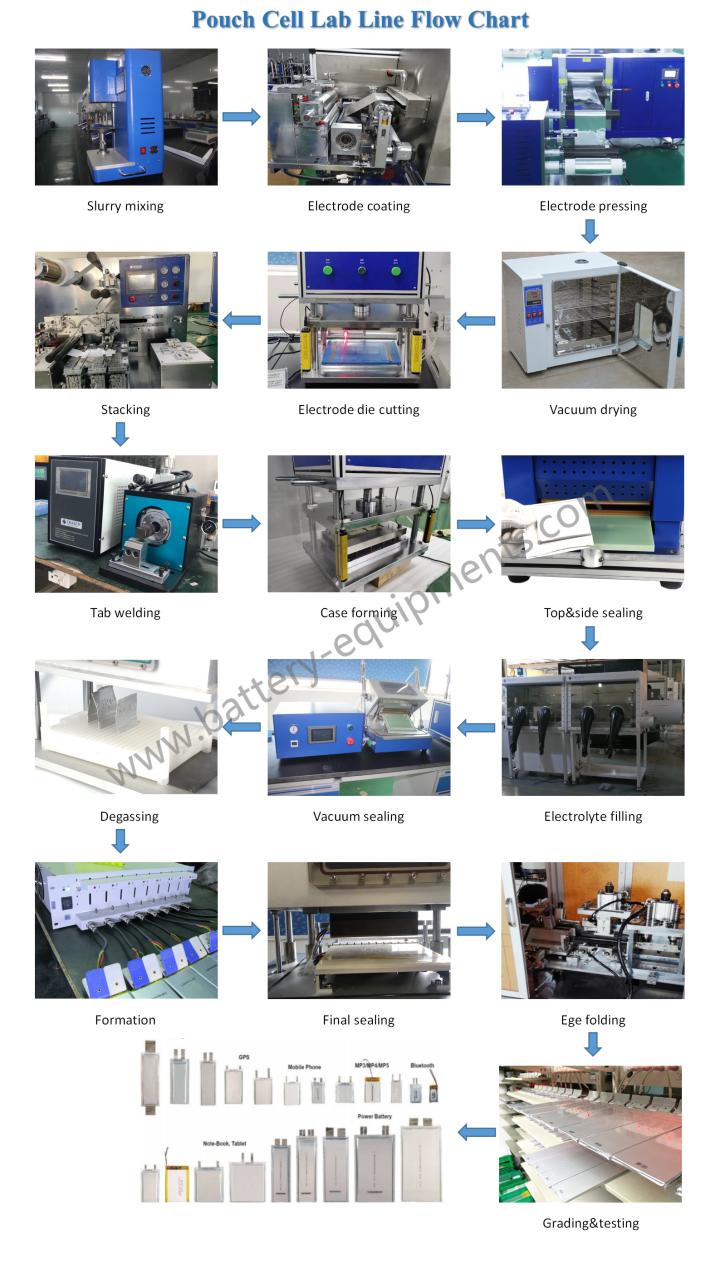

pouch cell machine

pouch cell case forming machine

pouch cell case forming machine

Pouch Cell Case/Cup Forming Machine

Pouch Cell Case/Cup Forming Machine


 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
