Au, Fe, Ni, Ag Ultrasonic Metal Spot Welder With Touch Screen Controller For Pouch Cell

Model Number:
TMAX-VS-24B
Input Power:
1500W
Compliance:
CE certificate
Warranty:
One Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Au, Fe, Ni, Ag Ultrasonic Metal Spot Welder With Touch Screen Controller For Pouch Cell

TMAX-DH is a CE Certified ultrasonic metal welder with touch-screen controller. It is designed for welding stacked electrode foils/sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells.

The 2000w battery welder can weld stacked electrode with 10-35 layers aluminum foil or copper foil with Al tab and Nickel tab. If with bigger battery with layer up to 50 layers, can choose the 3000W model, and If need to weldup to 60 layers, please choose 4500W model.

Note:If you are not quite clear about what welder would be suitable for you,please consult the sales manager with following parameters,they will find a solution for you:

1. Weld material
2. Thickness of the material

3. Layer number of material

Features	Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).
Input Voltage	AC 110V or 220V +/-10%, 50/60Hz
Max. Power Consumption	2200W→can be customized
Welding Area	4mm(L) x 4mm(W)→can be customized
Welding Head	The welding heads and welding base are included for welding both aluminum & copper current collectors from 2 to 40 layers
Ultrasonic Frequency	40K Hz→can be customized
Product Dimensions	1. Controller: 360mm(L) x 480mm(W) x 200mm(H) 2. Welder: 200mm(L) x 460mm(W) x 270mm(H)
Net Weight	70kg
Compliance	CE Certificate
Warranty	One Year limited warranty with lifetime support
Application Notes	Nickel and Aluminum Tabs can be welded onto different types current collecting substrates (Aluminum or Copper) when making battery electrodes. Copper: about 0.15~2+0.15~2mm Aluminum: about 0.2~3+0.2~3mm Nickel: about 0.1~1.2+0.1~1.2mm

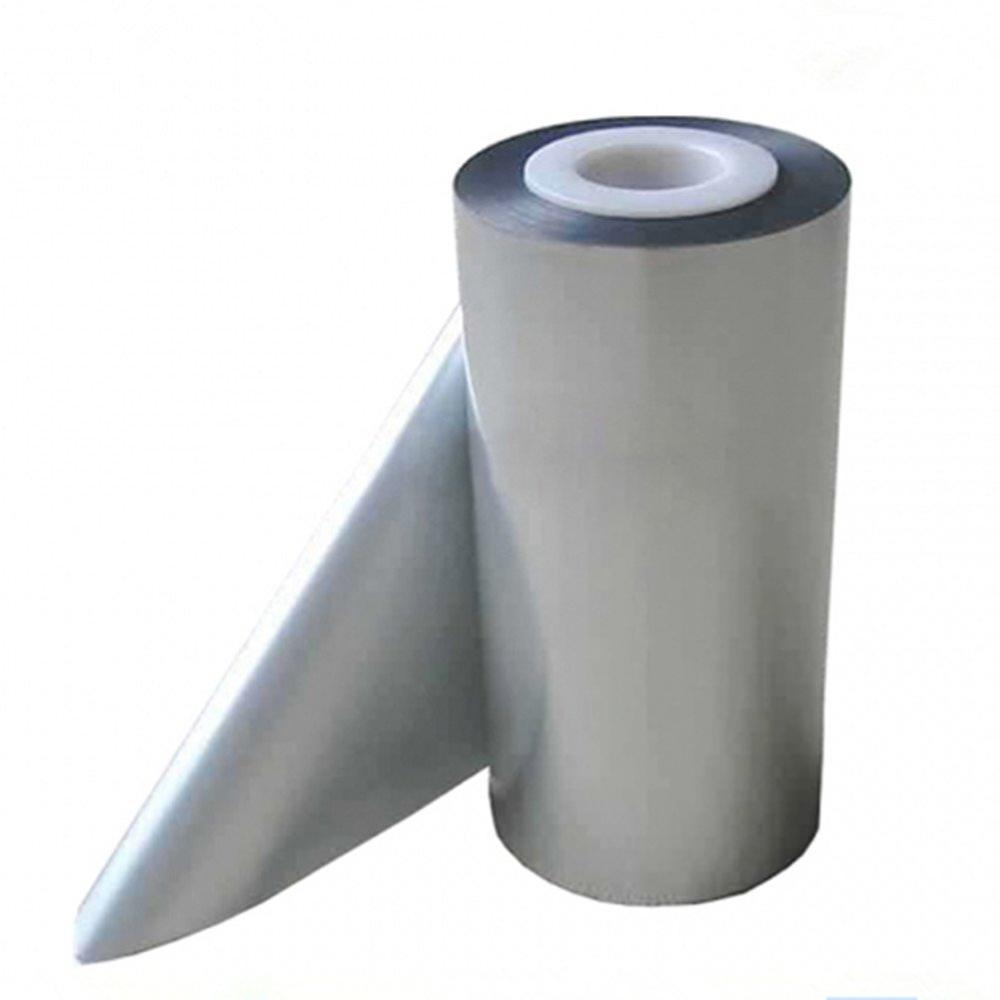

Recommendation	For the pouch cell assembly, we also recommend you the following items: Forming machine Hot sealer with tab Vacuuming seal Stacking machine Die Cutter Aluminum Laminated Film
