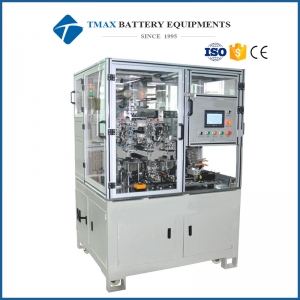

Automatic Electrode Z-Stacking Machine For Lithium Battery Electrode Assembling

  • Model Number:

    TMAX-DP-150
  • Type:

    Electrode Stacking Machine
  • Dimension(L*W*H):

    Length : 80-150mm Width : 30-90mm Thickness
  • Net Weight:

    800kg
  • Compliance:

    CE certificate
  • Warranty:

    2 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Automatic Electrode Z-Stacking Machine For Lithium Battery Electrode Assembling


SPECIFICATION

TMAX-DP-150 is a high-accuracy Semi-auto stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. It adopts "Z" glyph laminated.


Advanced Features:

1 PLC Touch Screen Control with easy condition setting

2 Continuous "Z" fashion stacking with a separator

3 Auto electrode pick-up & stacking via vacuum suction manipulator

4 Through four manipulator to remove electrode from material box placed second para platform, after calibration then place on lamination platform, laminated with automatic clamping device on stage.

5 Unreeling rotors for separator film feeding

6 Auto-tension control for separator film delivery



Model

Semi auto stacking machine  TMAX-DP-150

Suitable battery size

Thickness H (mm)

5-20

Width W (mm)

30-90

Length L (mm)

80-150

Tab length Q (mm)

Q≤20

Tab width (mm)

≤20

Technology parameter

Stacking speed

1.3-1.5s/pcs

Registration accuracy

±0.5mm

Stacking quantity

Can be set

Percent of pass

≥98%

Power

4kw

Weight

800kg

Dimension (L*W*H)

1250*1150*1850mm

Materials size

Electrode

Length : 80-150mm

Width : 30-90mm

Thickness : 0.07-0.25mm

Tab

Length : ≤20mm

Width : 8-20mm

Separator

Length : in roll

Width : 90-150mm

Thickness : 0.02-0.04mm

Inner diameter : φ76.2mm

Max out diameter : φ300
