Automatic Precision Electrolyte Injection Station for Micro/Pouch/Cylinder Batteries

Features

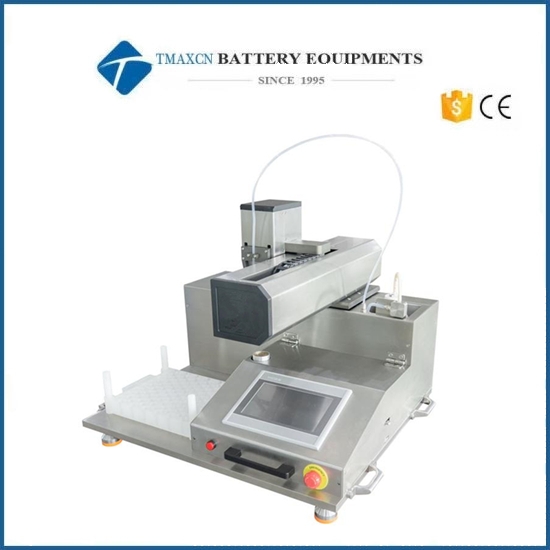

XYZ three-axis platform for liquid injection

Can be customized to be put in a glovebox

The tray clamp is optional for different shapes of the cells to achieve different liquid core injection.

It also can be applied to micro-batteries, pouch cell batteries, prismatic cell batteries, cylindrical batteries, and supercapacitors (battery size is needed when ordering)

Choice of precision rotating plunger metering pump or Hibar pump in order to achieve high-precision injection requirements for the desired accuracy

Parameters such as injection speed, injection volume, and operating speed can be freely set

Liquid shortage alarm function to prevent the sample from not being injected or less injected

All stainless steel design, rust-proof, and easy to clean

PLC control, HMI operation, easy to use

Input Power

AC 220V Single Phase 50 Hz

1KW power

Cell Fixture Plate

Cell plate design references:

Pouch cell:(TWS1054B): 2 x 5 sample plate, 10 positions in total

Cylindrical cell (18650): 8 x 4 sample plate, 32 positions in total

Injection Pump

Regular injection: a plunger pump is recommended, 0.1 - 1.8 ml/s, ± 0.5% accuracy

Microinjection: a Hibar pump is recommended, 0.02 - 20 ml/s, ± 0.5% accuracy (Different models of pump available, please inform the desired range before ordering.)

Weighing Accuracy

± 0.01g

Electrolyte Dispenser

0.3% accuracy

The filling volume of 1.8 Ml/c

Injection Speed

Max 450 ml/min

Connection Port

Inert Port: 6mm diameter

Outlet Port: 4mm diameter

Machine Dimensions

630mm (W) x 530mm (D) x 500mm (H)

Net Weight

140 lbs

Warranty

One Year limited warranty with lifetime support
