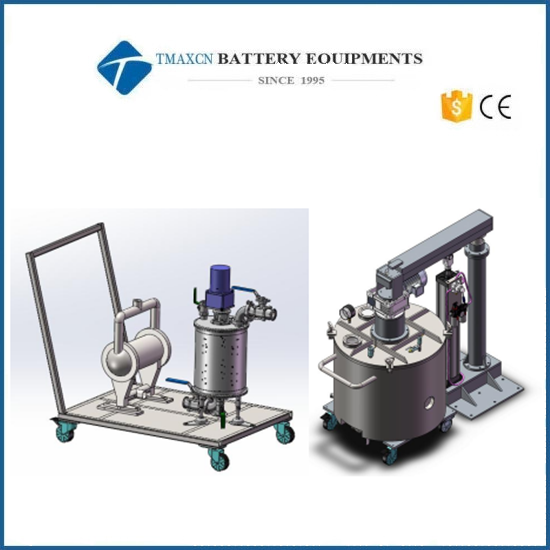

Battery Electrode Slurry Magnetic De-ironing Filtration System for Battery Production Line

  • Model Number:

    TMAX-CTGL
  • Dimension(L*W*H):

    L6600mm x W1200mm x H1850mm
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Battery Electrode Slurry Magnetic De-ironing Filtration System for Battery Production Line


Introduction

This equipment is a specific feeding equipment for lithium ion battery coating machine, which is composed of two parts: turnover barrel + iron removal filter.



Standard composition and key configuration table

Turnover barrel and lifting part

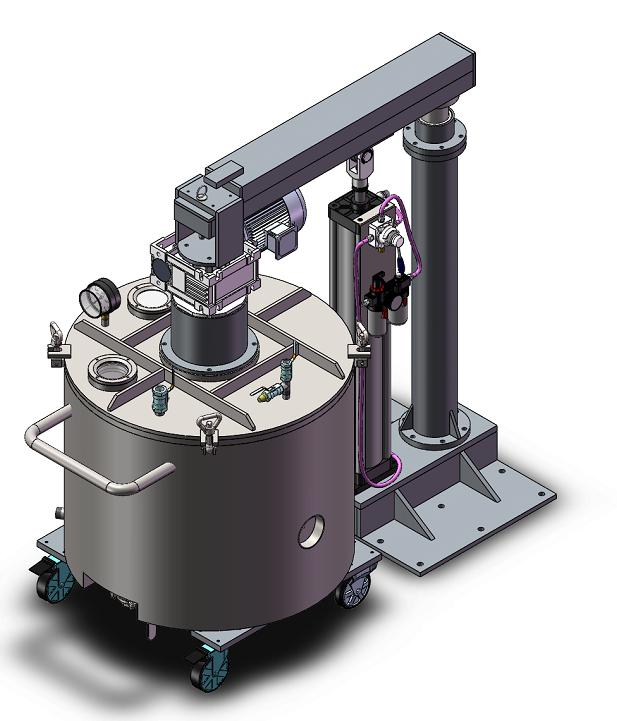

feeding barrel

1.Feeding barrel

Design volume/use volume

150L/100L

The material of the inner tank of the mixing tank in contact with the material: 304 stainless steel.

Mixing barrel specification

About φ650*450

1) Discharge valve: G2” (DN50);

2) The barrel body has push and pull handles, and the barrel bottom has 4 casters (2 orientation + 2 universal);

3) Cooling/heat preservation: with bottom/side wall cooling jacket, cooling water inlet/outlet water distribution pipe union

2.Upper cover

Upper cover specification

Match with the corresponding mixing tank

The material of the part in contact with the material: 304 stainless steel.

1), with 2 small windows, a spotlight, feeding tube DN25 (with 304 ball valve), suction/discharge vacuum interface, vacuum pressure gauge and other spare connections;

2) The upper cover and the mixing barrel are fixed and locked with quick-locking buckles.

1. Mixing accessories and basic parameters

Mixing shaft/Mixing paddle speed

About 25rpm

Material: SUS304

Mixing motor power

1.1kw/4P

Reducer(matched with motor)

NMRV-090-60-FA-F2-Y90S-1.1KW

Mixing paddle form

Combined frame type mixing paddle.

4.Mixing principle

The combined frame-type mixing paddle performs downward pressure rotation to ensure that the material does not deposit.

5.Vacuum guarantee system: 5 skeleton oil seals are installed in parallel, and the vacuum source is provided by the user

1), the vacuum degree is ≤-0.098Mpa, keep for 24 hours not less than -0.08Mpa.

2) Sealing method: A, static seal uses "O"-shaped sealing ring; B, skeleton oil seal.

6. Power distribution box: the stirring switch, spotlight switch, emergency stop and other functional operations during equipment operation are all carried out on the power distribution cabinet.

7. Lifting device: 1 φ125x800 lifting cylinder, equipped with 1 safety pin



Iron removal filter part

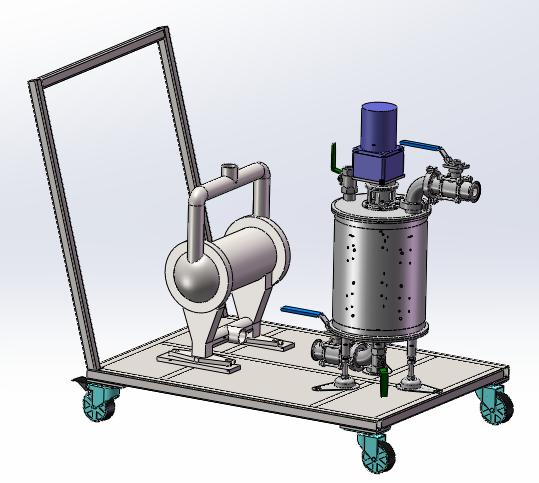

Iron removal filter

No.

Name

Material

Note

1

Shaft seal

Viton

Wear-resistant and corrosion-resistant

2

Blade

Polyester plastic

(imported from UK)Wear-resistant and corrosion-resistant

3

Blade spring

SUS304



4

Sealing ring

Silica gel



5

Shaft assembly

EPDM+SUS304



6

Filter element

SUS316

Accuracy deviation value: ±0.03mm (maximum ±0.05mm), diameter deviation value: ±0.3mm

80 mesh to 200 mesh optional (standard 120 mesh)

7

Shell/Upper and Lower Plate Cover/Blade Holder

SUS304



8

DC motor



24V/60W

9

Separator pump

Aluminum alloyQBY-25





Liquid level sensing system

Working principle: The liquid level sensor transmits the signal to the solenoid valve according to the change of the material liquid level, and the solenoid valve controls the feeding amount of the pneumatic diaphragm pump, thereby realizing the function of automatic feeding.

No.

Name

Model

Quantity

Note

1

liquid level sensor

Domestic brand

1



2

The electromagnetic valve

Taiwan

1



3

Intermediate relay

Domestic brand

1



4

Intermediate relay holder

Domestic brand

1



5

Rotary Switches

Domestic brand

1





Principle

This equipment is filled with dry compressed air into a sealed pressure barrel, and pressurizes the inner cavity of the pressure barrel to press the slurry into the upper trough of the coating machine.
