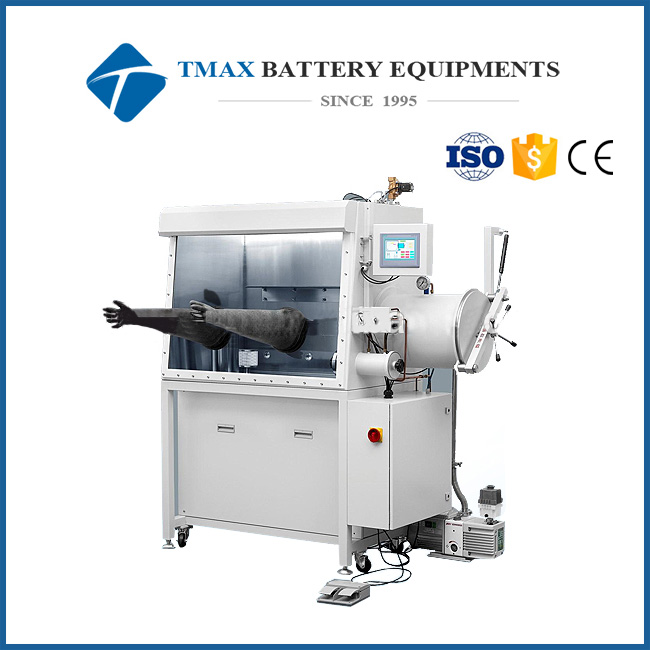

Battery Laboratory Vacuum Glove Box For Lithium ion Battery Lab Research

  • Model Number:

    TMAX-MRX-1220
  • Compliance:

    CE certificate
  • Warranty:

    2 Years with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Battery Laboratory Vacuum Glove Box For Lithium ion Battery Lab Research


Working Voltage

       220V AC, 50/60Hz, Single Phase

Glove Box Chamber

·         Case Material: Stainless Steel 304 with 3mm thickness

·         Dimensions: 1220mm(L) x 760mm(W) x 900mm(H)

·         Removable Front Window Panel

Chamber Condition

·         Water concentration: <1 ppm (20°C, 1 atm)

·         Oxygen concentration: <1 ppm (20°C, 1 atm)

Leak rate

      <0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)

Air-lock Chamber

·         Antechamber Dimensions: 360mm(Dia.) x 600mm(L)

·         Small Chamber Dimensions (for tools): 150 mm(Dia.) x 300mm(L)

Working Gas

·         Operating gas: Inert gas such as N2, Ar, He

·         Regenerating gas: Mixture of H2 (5-10%) and Operating gas

·         For purification system with only water adsorbing function,

·         Regenerating gas will be the same as Operating gas

Gas Purification System

·         Automated Regeneration Process

·         Automated water and oxygen removal

·         Purification Cylinder: made of BASF R3-11

·         Copper Catalyst and Lindy Molecular Sieve

Filter System

·         Inlet and Outlet filter can eliminate particle size > 0.3μm

Pressure Control System

·         Automatic pressure control by PLC for the Glove Box ChamberManual pressure control

·         is allowed via a foot pedal

·         Pressure Range: +/- 12mbar

Purging System

·         Automatic Purging System allows easy operating and reduce gas consumption

Control system

·         Siemens PLC control system with 6" touch screen display

·         Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm

·         Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm

·         Pressure: -2500 to 2500 Pa with an accuracy of 1 Pa

Data

·         Automatic system data logging

Pump

·         England RV-8 EDWARDS pump is included for faster vacuum and removing moisture

·         Vacuum rate: 8 m^3/hr

Purification Pipeline

     304 Stainless Steel, KF40 and KF25 Port

Gloves

     A pair of 9 3/4" butyl glove is included for immediate use

Lighting

     Built in fluorescent lamp

Product Dimensions

     2300mm(L) x 1500mm(W) x 1900mm(H) (91" x 59" x 75")

Warranty

·         One Year limited warranty with lifetime support

·         Rusting and damage due to improper storage condition or maintenance is not covered by warranty
