Laboratory Benchtop Small Single Station Dry Glove Box with Airlock And Vacuum Flange & Gauge
Model Number:
EQ-VGB-3Dimension(L*W*H):
780 x 700 x 650mmCompliance:
CE certificateWarranty:
2 Years with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Laboratory Benchtop Small Single Station Dry Glove Box with Airlock And Vacuum Flange & Gauge

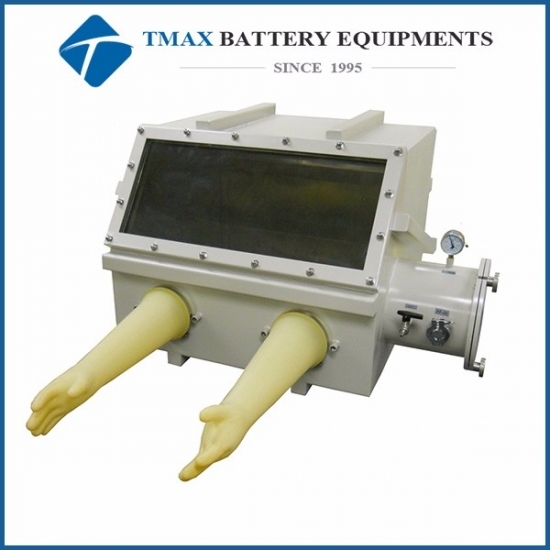

EQ-VGB-3 is a middle size heavy duty stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.
SPECIFICATIONS:
Glove Box Chamber |

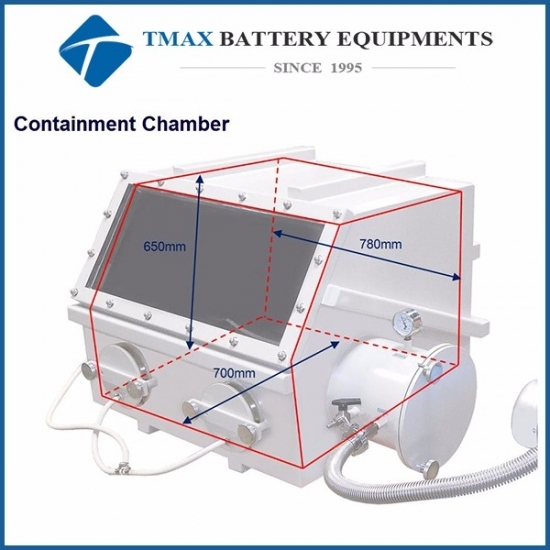

1. Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet with sport frame, which provide heavy duty structure for vacuum 2. Dimensions: 780mm(L) x 700mm(W) x 650mm(H) 3. Max. Positive Pressure: 810 Torr (1.1 atm) o Note: Gloves cannot work if pressure is higher than 810 Torr 4. Max. Vacuum Level: 0.5 Torr o Note: Stainless Steel case may deform at higher vacuum level |

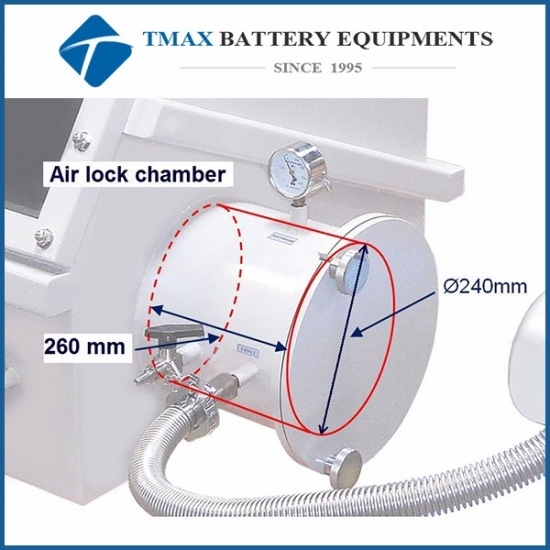

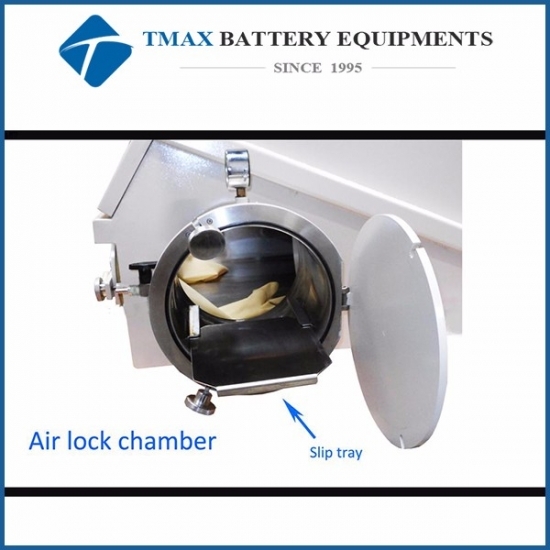

Air-lock Chamber |
1. Dimensions: 240mm(ID) x 260mm(L) 2. Max. Vacuum Level: 0.05 Torr |

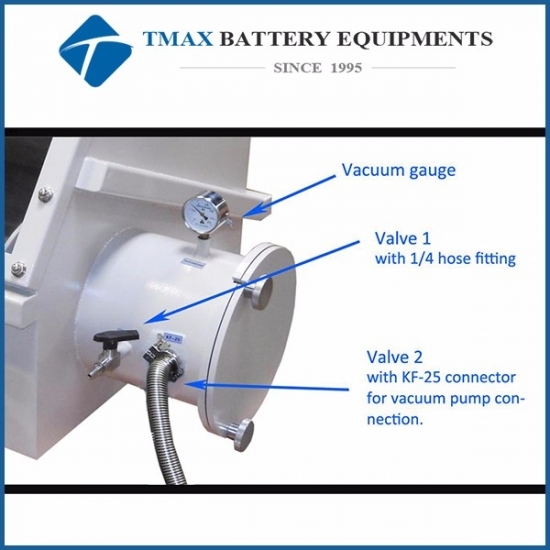

Vacuum gauge and valves |
1. Two KF-25 vacuum fitting ports with Quick Clamps are installed in the back for connecting vacuum pump, electric/fluid feed-through, gas circulating/purifying system, or other testing equipment. |
Power Extension |
1. One extension socket (Max power 1500W) is installed in the glove box main chamber. 2. Note: 110V power cord was included for immediate use. (For 208~240V power supply, no plug will be included) |
Leakage Rate in Glove Box Chamber |
< 6 Torr/hour |
Gloves |
1. One pair of Gloves are included for immediate use 2. Optional: You may order 6'' gloves here because they have: o Increased stretching, bending ability and tear strength o High effectiveness when vaporized hydrogen peroxide (VHP) is present o High resistance to aromatics, hydrocarbons, solvents, fats, and acids o Resistozone o High static dissipative qualities |
Vacuum pump and fittings (Optional) |
Vacuum pump and fittings are not included. |
Warranty |
Two years limited warranty with lifetime support |
Application Notes |
Corrosive liquid (such as LiPF6 electrolyte) must be remain sealed in a container inside the glove box. Otherwise, liquid vapour may condense and corrode the steel chamber and purification pipeline. 1. The H2O & O2 removing rate is largely dependent on the type of purging gas used. For faster chamber purging process, Nitrogen is preferred over Argon due to its lighter mass. 2. By closing the vacuum flange, the glove box can be vacuumed by mechanical pump upto 0.5 torr before filling inert gas, (moisture can be below 180 ppm and oxygen below 200 ppm). Then you can save at least 1-2 tank of inert gas from purging at each operation. |
Dimensions |
790mm(L) x 710mm(W) x 660mm(H) |
Shipping Weight |
530 lbs |
