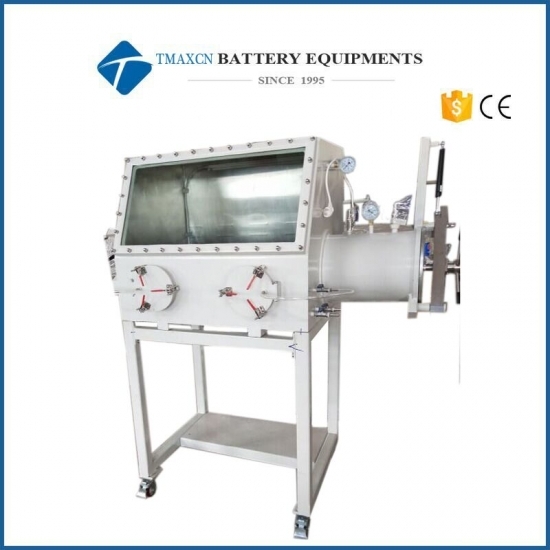

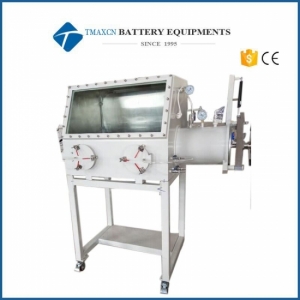

Compact Stainless Steel Vacuum Glove Box with Vacuum Flange & Gauge

  • Model Number:

    TMAX-GBV-1
  • Dimension(L*W*H):

    600mm*500mm*650mm
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Compact Stainless Steel Vacuum Glove Box with Vacuum Flange & Gauge



Introduction

Vacuum glove box is also called vacuum inert gas glove box. During scientific experiments, some substances are easily oxidized and deliquescence in the atmosphere. This makes the chemical reaction of test substances and pre-treatment of samples very difficult, which affects the test process and Test Results. The vacuum glove box (also known as the vacuum inert gas operation box) effectively solves these problems. The device can safely put in and take out the test samples, and operate, react and test freely in an oxygen-free and water-free state to ensure The normal conduct of scientific experiments. This product is an ideal device for scientific experiments in universities, research institutes, and enterprise laboratories, and is widely used in biochemical, metallurgy, electronics, chemical, geological, mineral, pharmaceutical and other industries.

Stainless steel vacuum glove box is a laboratory equipment that fills high-purity inert gas into the box and circulates and filters out the active substances in it. It is also called glove box, inert gas protection box, dry box, etc.

  

Principle

The stainless steel vacuum glove box is mainly composed of a main box body, a transition compartment and a frame. If users have other special requirements, they can also be designed or modified according to their needs; there are two to three glove operation interfaces on the box body, and the operation box is tempered on the front The glass has a wide viewing angle and no dead corners. The operator can clearly observe the operation process inside the box, making the operation process more intuitively displayed in front of the operator's eyes. There are two vacuum ball valves on the box body and transition compartment for air inlet and outlet, and the KF40 vacuum connector is reserved on the box body, which can be used by the user as needed, and can be connected here if water or ventilation is required. The cabinet has built-in lighting and multi-hole sockets.

  

Features

1. The whole box is made of stainless steel, and is reinforced, and the surface is sprayed with plastic, so it is strong, corrosion-resistant and easy to clean;   

2. The operation box is made of plexiglass, the viewing angle is wide and there is no dead angle;   

3. The box is equipped with lights and multi-hole sockets;   

4. The material of the operating gloves is imported butyl gloves. The seal is reliable and durable;   

5. The design of the sealing device is novel, the seal is reliable, and the opening is convenient;   

6. KF40 vacuum connector is reserved in the cabinet, which can be modified and used according to needs;   

7. The two doors of the transition chamber solve the problem of repeated vacuuming of the main box.  


Precautions

1. Before use, you must first check whether the connectors are loose and whether the seals are intact;   

2. It is forbidden to open the hatch, cover the glove mouth or conduct disassembly and repair under vacuum;   

3. The glove mouth should be vacuumed with the box body before or at the same time, and then the vacuum should be stopped with the box body after or at the same time;   

4. The external air supply pipe fittings should be sealed tightly. When the pointer of the vacuum pressure gauge points to 0 when the box is aired, the air inlet valve should be closed;

5. After vacuuming, close the valve and then the vacuum pump;   

6. Check whether the glove valve is open when pumping.



Parameters of Stainless Steel Vacuum Glove Box

No.

Model No.

Outline Dimension

(L*W*H, mm)


Chamber Size

(L*W*H*T, mm)


Transition Cabinet
(mm)

Glove Port
(mm)

Vacuum Degree

1

GBV-1

1030*580*540


600*500*500*5

Ф200*280

Ф150

0-0.1Mpa
Keep vacuum for
more than 12 hours

2

GBV-2

1320*750*690

800*650*650*5

Ф273*350

Ф150

3

GBV-3

1755*800*1024

1200*700*950*6

Ф350*400

Ф196


Items
Name of Parts
Quality Warranty Period
(Month)
Electric Parts
frequency converter
12
motor
12
fan
12
keys
6
travel switch
12
air switch
12
power line
6
socket
6
Machinery Parts
 main assembly parts
12
belt pulley
6
Others
stay bar
12
cage-supported
12
top rod
6
Fragile and Easy-consumed Parts
belt
0
pot/jar/tank
0
mill balls
0
