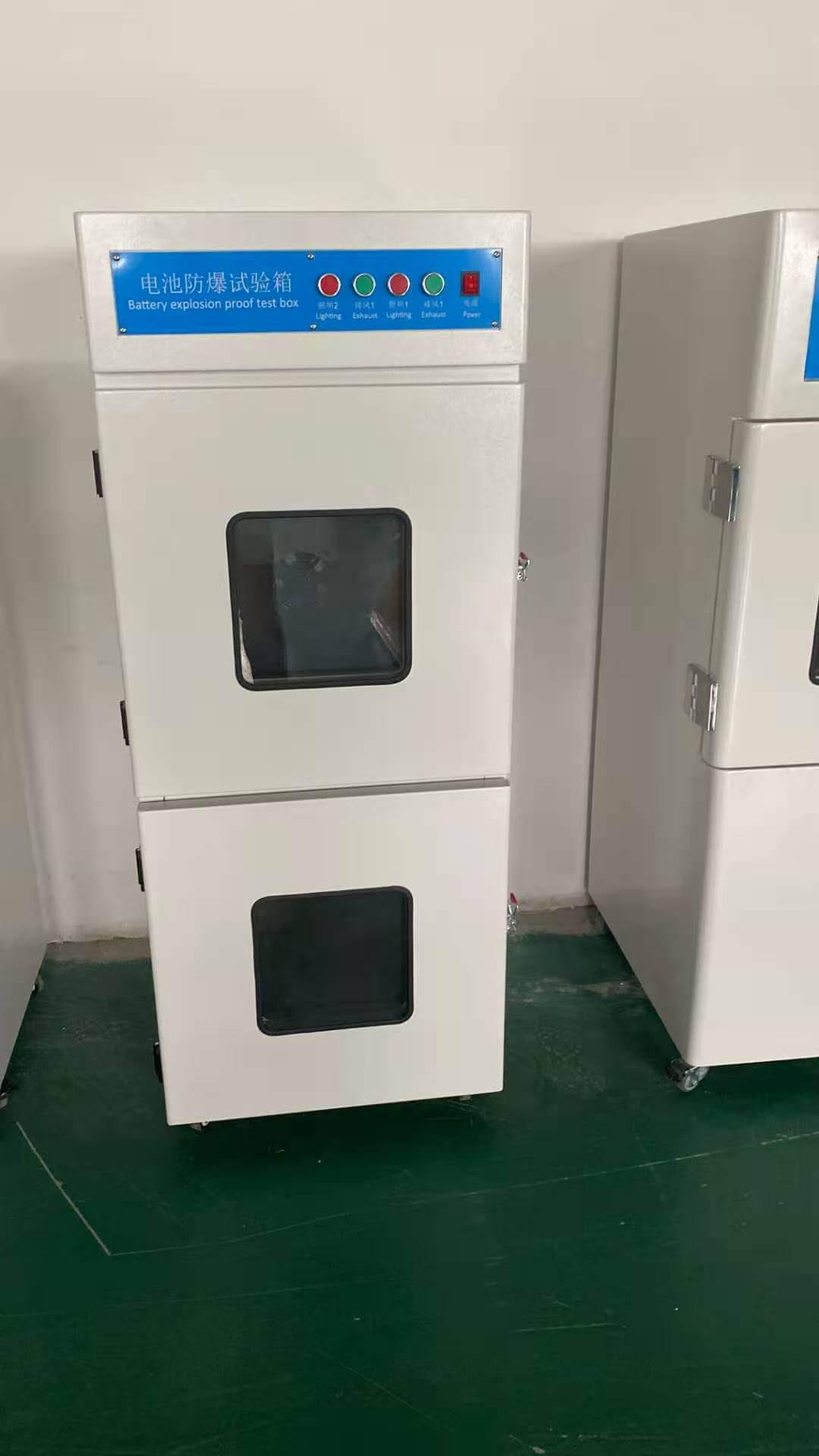

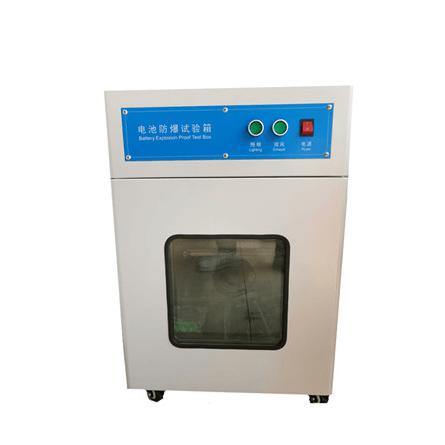

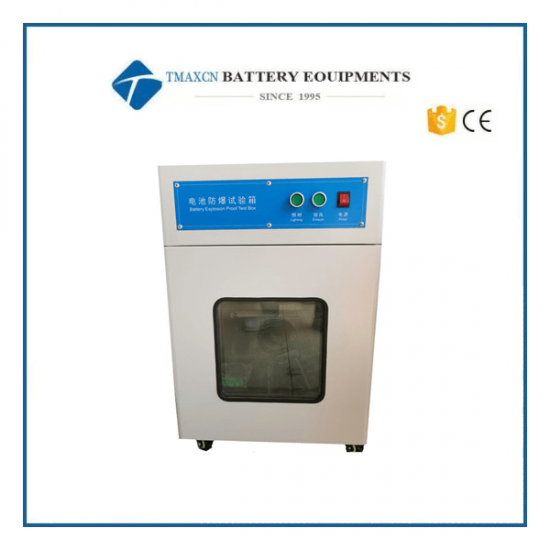

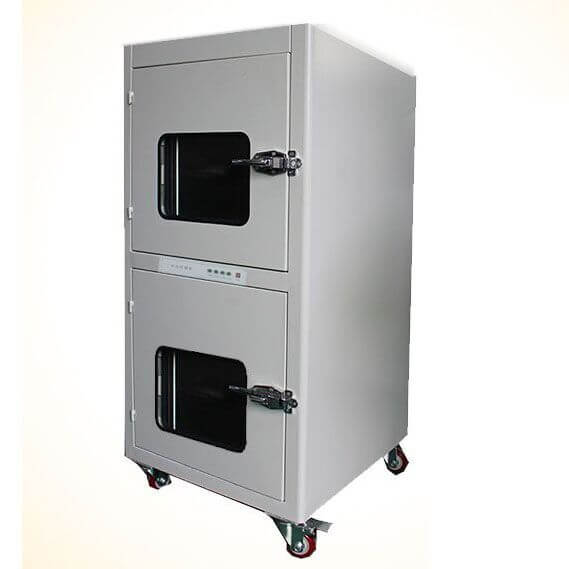

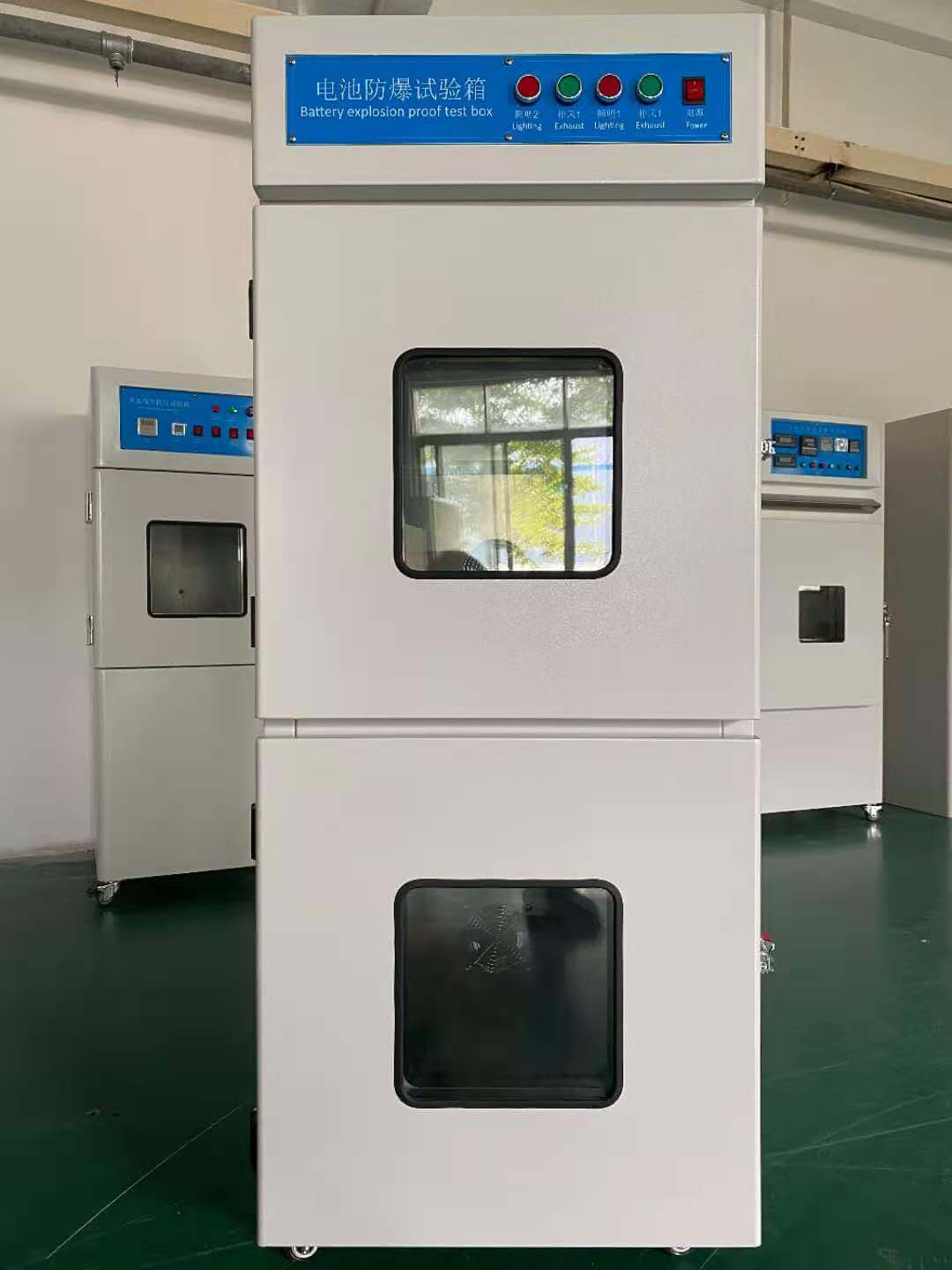

Battery Over-Charging & Forced Discharging Explosion-Proof Test Tester Chamber For Lithium Battery Safety Testing
Model Number:
TMAX-TECompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Battery Over-Charging & Forced Discharging Explosion-Proof Test Tester Chamber For Lithium Battery Safety Testing

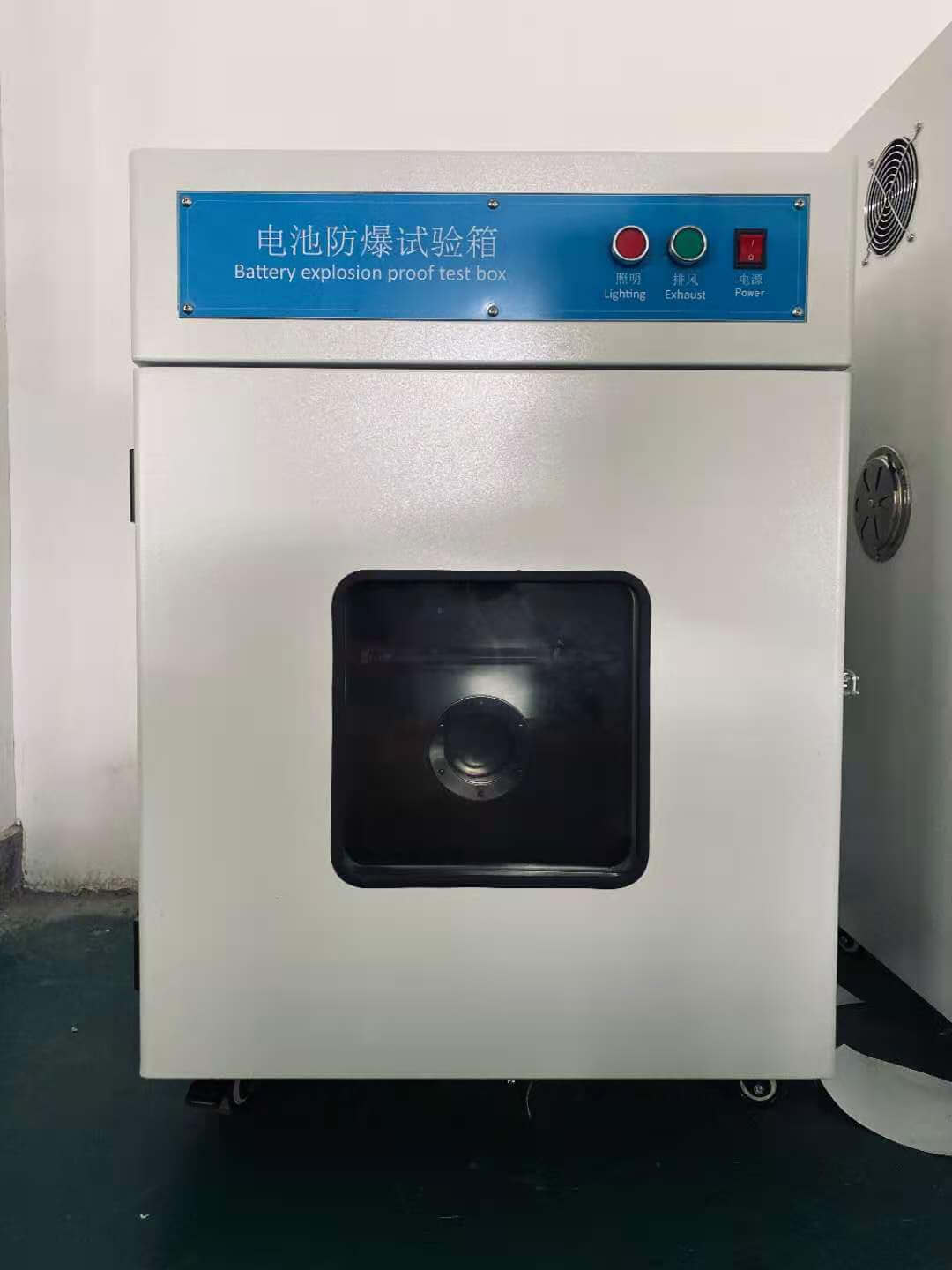

Battery explosion-proof box is mainly used for personal safety protection in battery safety performance test. In over-charge and over-discharge, charge and discharge test and other tests, the battery is placed in explosion-proof box and external charge and discharge tester. Protect operators and instruments.

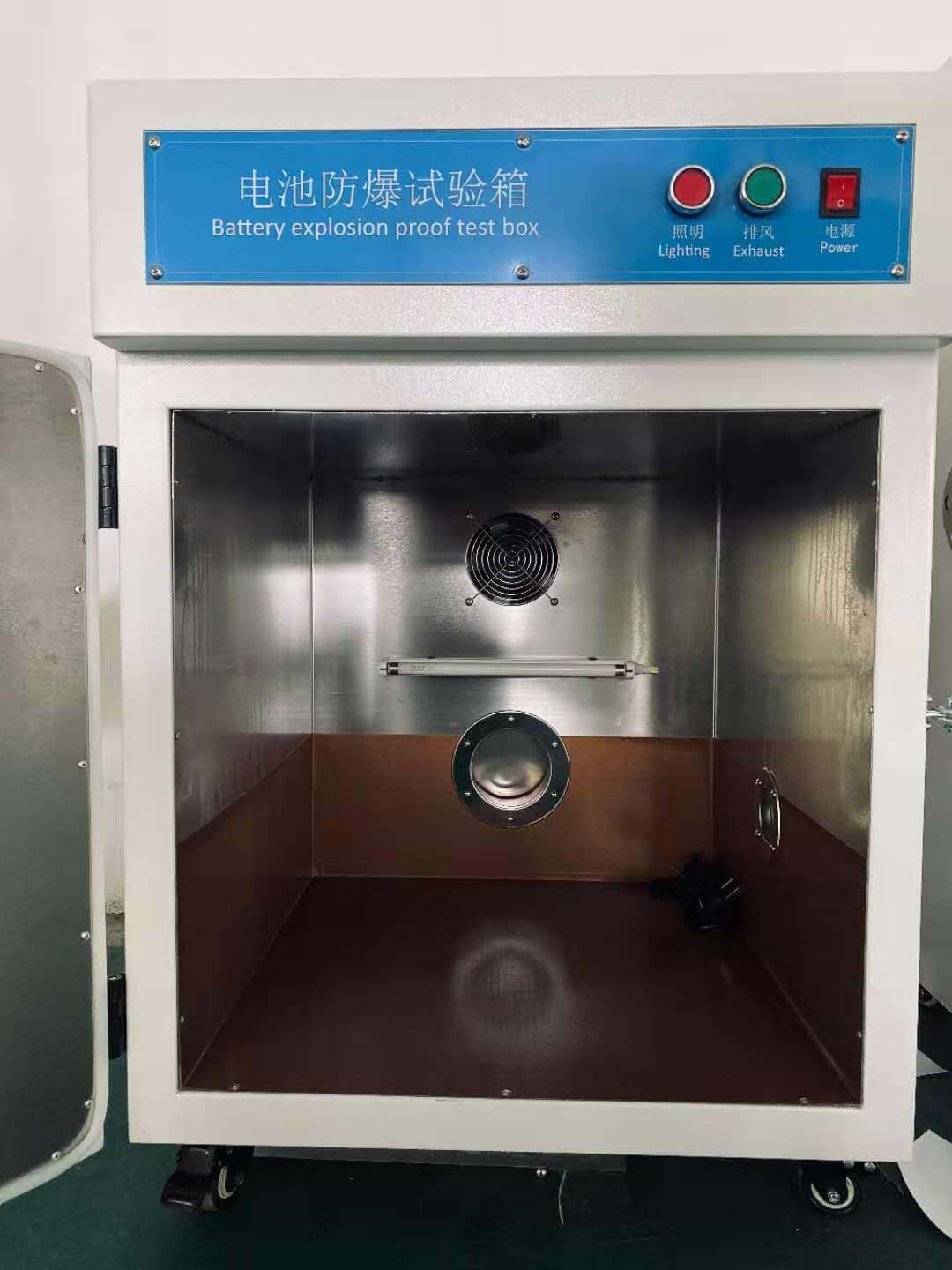

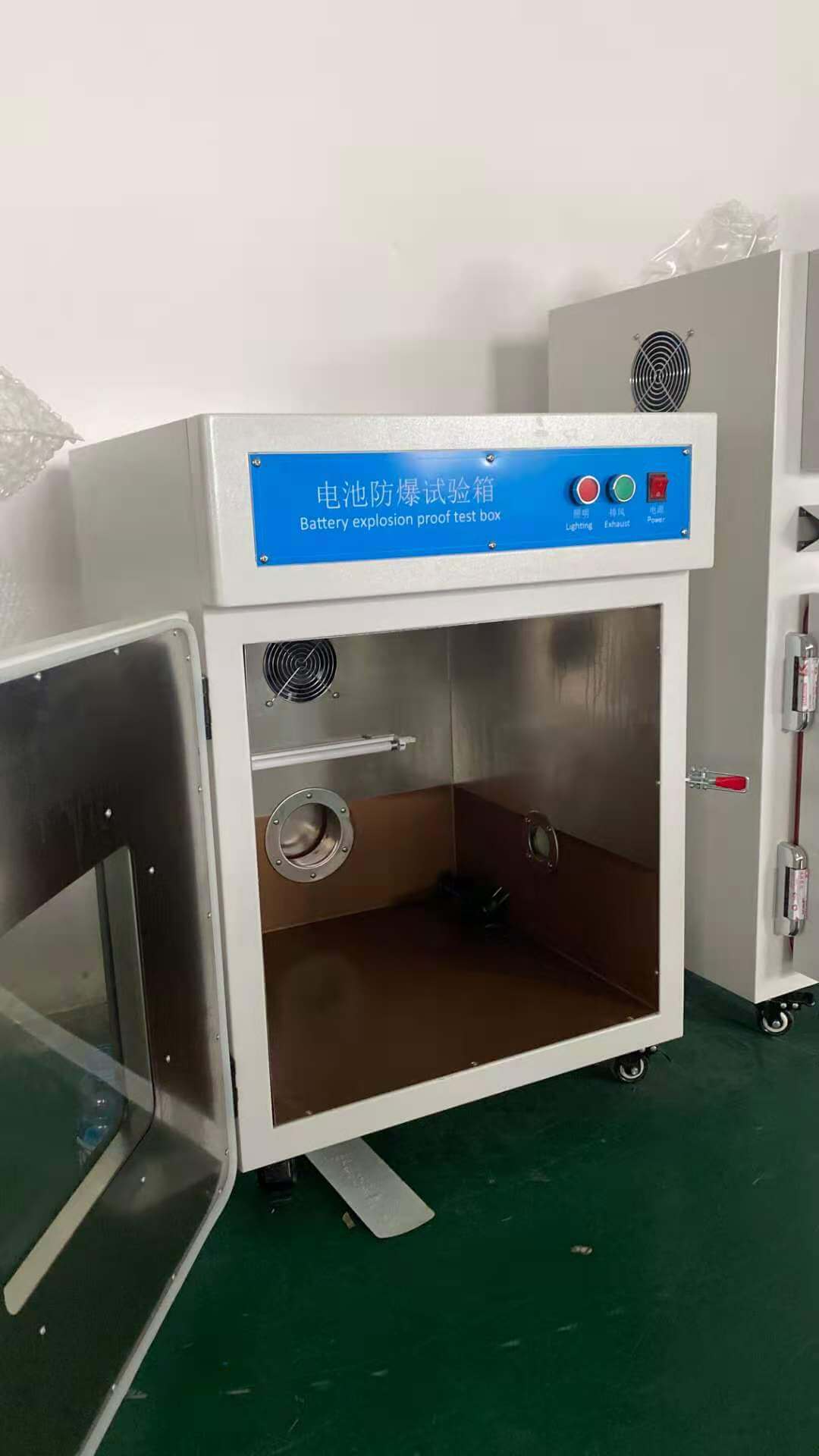

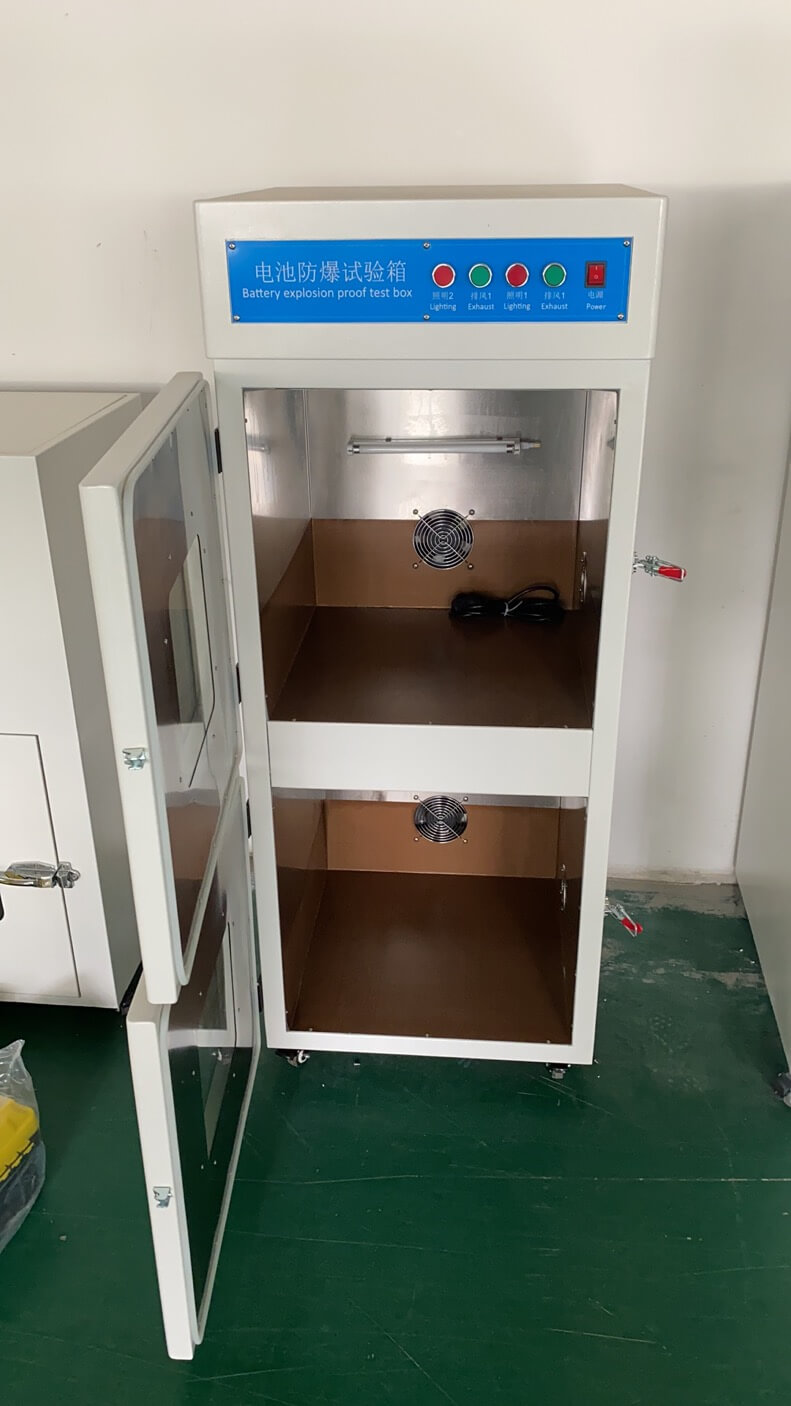

1. Electric wood boards or Te-flon tapes are placed inside the test box, which can effectively insulate and flame retardant, and can be easily cleaned up.

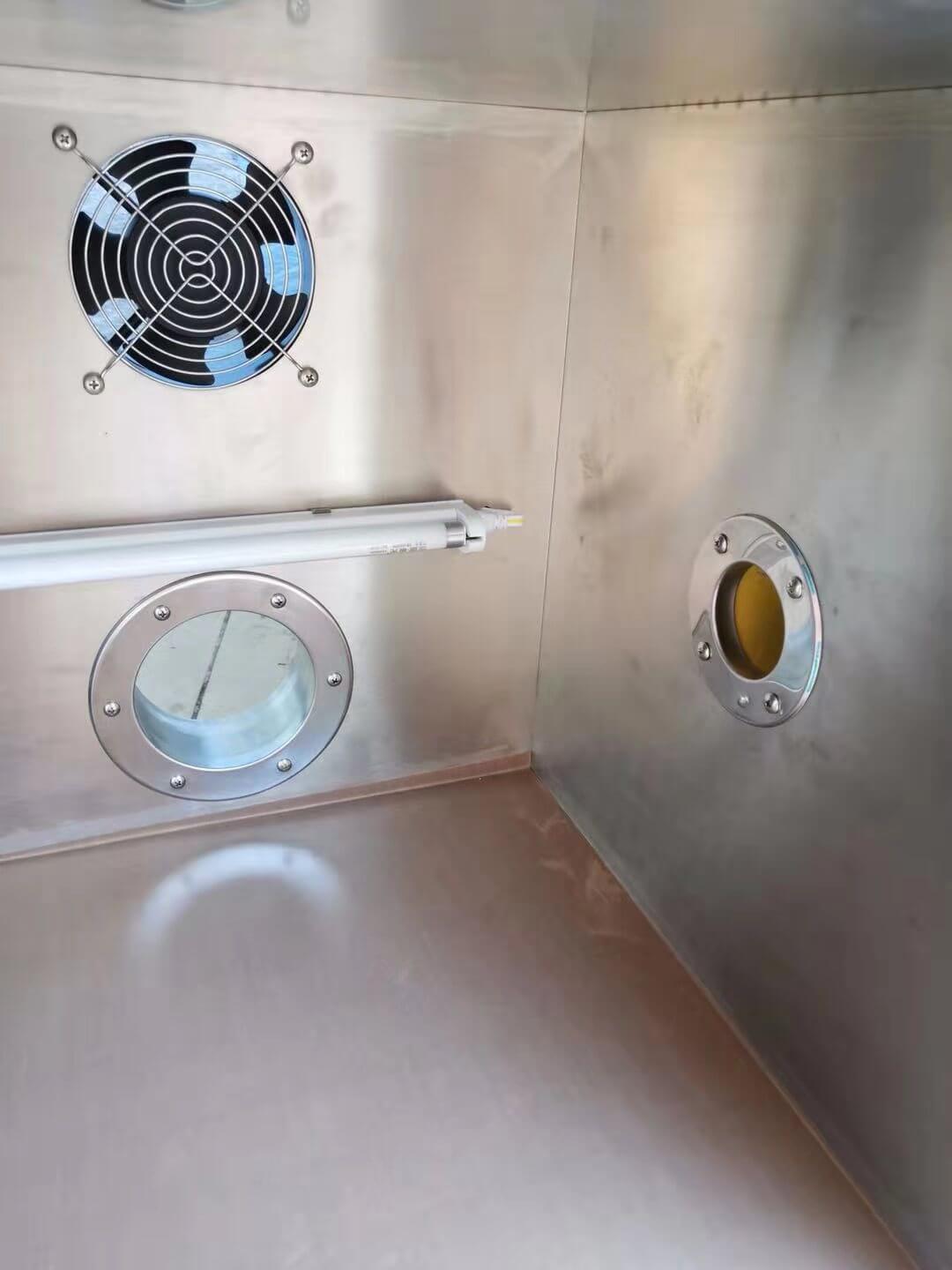

2. There are two circular wiring ports at the rear of each layer of box body to facilitate the passage of test wiring.
3. There is a separate test panel to control the lighting and exhaust of each test room, and an external strong exhaust fan.
4. There is thermal insulation design between each layer, which can avoid mutual influence test.
5. Explosion-proof cold handle door lock;
6. The rear part of the box body is provided with two circular wiring ports with a diameter of 50mm, which is convenient for the test connection to pass.
7. Lighting system with separate exhaust system;
8. The rear side of the box is equipped with an exhaust fan (φ120 mm) and an exhaust duct, which can be connected to a strong exhaust fan in the laboratory.
9. Thermal insulation design can avoid interaction test.
10.The door is connected with the box body by a strong hinge, explosion-proof cold handle door lock
SPECIFICATIONS
Type
TMAX-TE01
TMAX-TE02
TMAX-TE04
TMAX-TE08
Layer number
1
2
4
8
Weight
50KG
80KG
100KG
180KG
Power
0.2KW
0.2KW
0.5KW
0.5KW
Chamber size
500*500mm
Layer number
1/2/4/8 layer selectable
Box thickness
12mm thickness, A3 steel plate with baking paint
Inner chamber material
SUS#201
Box material
Stainless steel
Observation window
10mm thick toughened glass
Side convection window
200 *300 mm openings are opened on the front and back sides of each box (or only front and back sides can be opened), so as to convection heat dissipation, and stainless steel mesh is added to effectively prevent the splash of explosive beacon
Passing standards
GB 31241-2014
GB/T 18287 -2013
GB/T 8897.6-2008
YD/T 2366.1-2011
GB/T 21966-2008
MT/T 1051-2007
Type |
TMAX-TE01 |
TMAX-TE02 |
TMAX-TE04 |
TMAX-TE08 |
Layer number |
1 |
2 |
4 |
8 |
Weight |
50KG |
80KG |
100KG |
180KG |
Power |
0.2KW |
0.2KW |
0.5KW |
0.5KW |
Chamber size |
500*500mm |
|||
Layer number |
1/2/4/8 layer selectable |
|||
Box thickness |
12mm thickness, A3 steel plate with baking paint |
|||
Inner chamber material |
SUS#201 |
|||
Box material |
Stainless steel |
|||
Observation window |
10mm thick toughened glass |
|||
Side convection window |
200 *300 mm openings are opened on the front and back sides of each box (or only front and back sides can be opened), so as to convection heat dissipation, and stainless steel mesh is added to effectively prevent the splash of explosive beacon |
|||
Passing standards |
GB 31241-2014 GB/T 18287 -2013 GB/T 8897.6-2008 YD/T 2366.1-2011 GB/T 21966-2008 MT/T 1051-2007 |
