Lithium ion Battery Nail Penetration Tester Machine For All Types Of Battery
Model Number:
TMAX-NPTCompliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

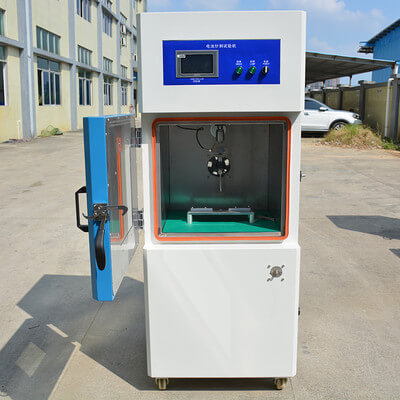

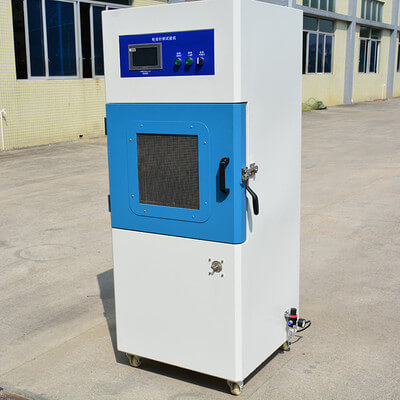

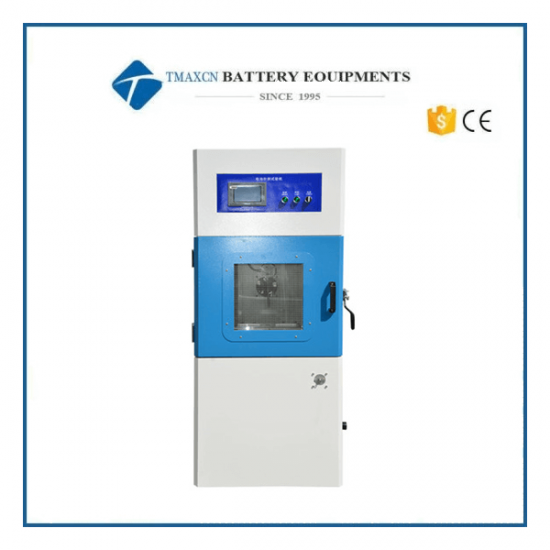

Lithium ion Battery Nail Penetration Tester Machine For All Types Of Battery
Feature
the test should be carried out at the ambient temperature of 20 ℃± 5 ℃. The battery connected with thermocouple (the contact of thermocouple is fixed on the large surface of battery) is placed in the fume hood, and a 2-8mm diameter stainless steel needle is used to pierce the center of the maximum surface of the battery at the speed of 10mm / s-40mm / s, and keep it for any time.
Applicable standards: MT/T 1051 SAE, QC/T473/744 and other test standards.
This is an economic nail penetration tester for all types of rechargeable batteries. The nail penetration is performed inside a safe and vented stainless-steel test chamber using a 2~8 mm diameter steel nail at variable speed from 10~100mm/s. There is a fixture to tighten various type cells, pouches or cylinders in the test chamber. It is an important tool for advanced research on the rechargeable battery.
Specifications
High temperature resistant steel needle |
ф2mm—ф8mm high temperature resistant steel needle, length 100mm |
Distance between needle tip and lower part |
200mm |
Clamping distance |
200mm |
Needling speed |
10-40mm/s, adjustable |
Needing force |
150~200kg |
Force display |
Pressure sensor, LCD display |
Travel distance |
200mm |
Driving mode |
Hydraulic drive |
Chamber features |
Fireproof, corrosion resistant and easy to clean. |
Chamber size |
520 * 500 * 445mm (W * H *D) |
Material of outer box |
Stainless steel |
Material of inner box |
Stainless steel box, high temperature resistance, corrosion resistance |
Power requirements |
220V/110V , 50HZ/60HZ |
