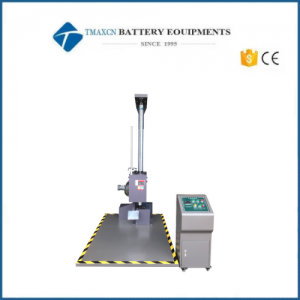

Battery Single arm Drop Tester Machine For Package Damaged Safety Performance Testing

Battery Single arm Drop Tester Machine For Package Damaged Safety Performance Testing

1、 Product Overview:

The single arm drop test machine is specifically designed to test the damage to product packaging caused by falls and evaluate the impact strength during transportation and handling. It is possible to conduct free drop tests on the surface, corners, and edges of the packaging, equipped with a digital height display and using a decoder for height tracking, so as to accurately provide the product drop height, with an error of no more than 2% or 10mm from the preset drop height.

The single arm drop test machine adopts a single column structure, with electric reset, electronic control drop, and electric lifting devices, making it easy to use; Accurate drop height, intuitive display, stable lifting of the drop arm, and small drop angle error.

2、 Usage environment

1. On site temperature: 5 ℃~+28 ℃ (average temperature within 24 hours ≤ 28 ℃);

2. Relative humidity: ≤ 85% RH;

3. Power supply conditions: three-phase five wire;

4. Voltage range: AC380V;

5. Frequency allowable fluctuation range: (50 ± 0.5) Hz;

6. The grounding resistance of the protective ground wire is less than 4 Ω;

7. Users are required to configure corresponding capacity air or power switches for the equipment at the installation site, and this switch must be independent for use by the equipment.

3、 Technical parameter indicators

1. Model: detachable

2. Drop height: 300-1500mm, adjustable

3. Maximum weight measurement: 0-65kg

4. Maximum size of the specimen: 800 × 800 × 800mm

5. Impact panel size: 1700 × 1200 × 14 (solid iron plate, thickness 14mm)

6. Arm size: 160 x 180 x 8mm

7. Drop error: ＜ 2 °

8. Drop height error: ± 10mm

9. Control box size: 370 × 350 × 910mm

10. Boundary dimensions of the test bench: approximately 1700 x 1200 x 2300mm

11. Equipment weight: approximately 550kg

12. Power supply: AC380V 50HZ (please confirm the power supply for on-site use. If other voltages need to be replaced, please provide a quotation in advance)

13. Power: 1.5KW
