Compact Ceramic Jaw Crusher / Mill with Digital Size Control

  • Model Number:

    TMAX-SFM-ALO
  • Compliance:

    CE certificate
  • Warranty:

    1 year limited warranty with lifetime support
  • Delivery Time:

    30 days
contact now
DESCRIPTION

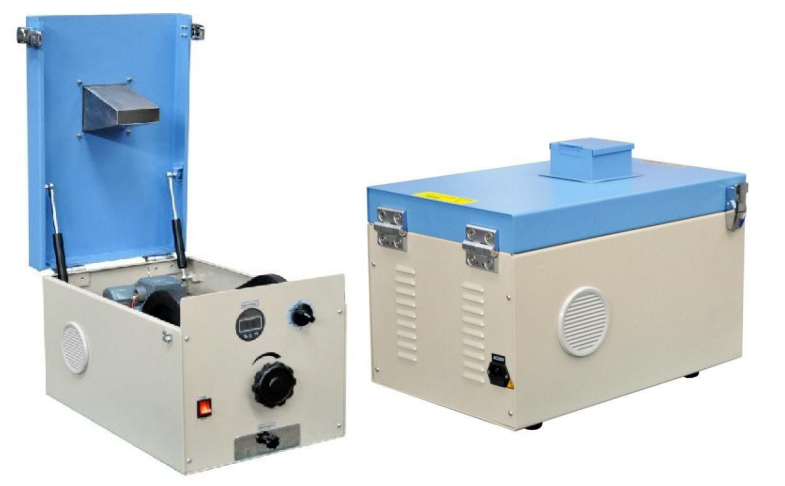

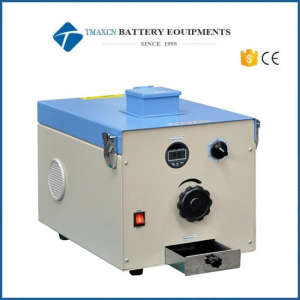

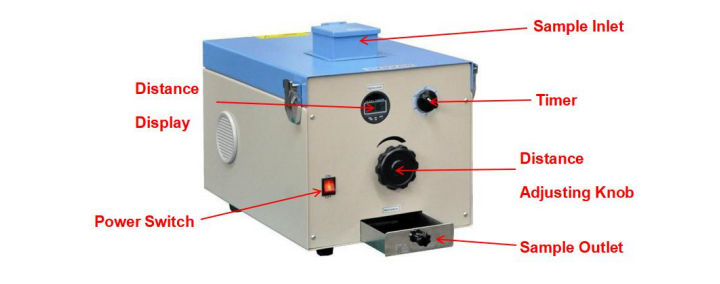

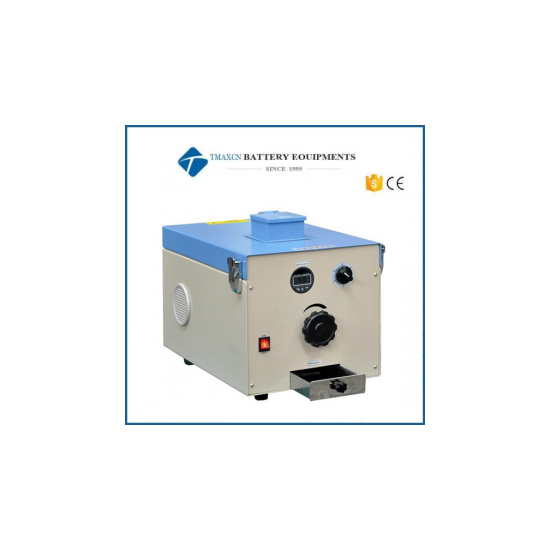

Compact Ceramic Jaw Crusher / Mill with Digital Size Control





TMAX-SFM-ALO is a compact electric jaw crusher with adjustable digital crushing size controller.  Two jaw plates are made of high purity alumina to avoid metallic contamination while crushing materials. It is useful to break up sintered blocks prior to ball milling and saves the researcher labor and time.

SPECIFICATIONS


Working Voltage

  • 208 - 240VAC 50/ 60 Hz, 500W
  • (110 AC version will be included 800W transformer at $80 extra)

Crushing Speed

400 times per minute

Timer

0  to 60 minutes adjustable

Jaw Plates

  • Two high purity alumina  plates
  • Easy to clean. (The sample inlet and outlet are made of stainless steel and so you can clean with a brush.)
  • 90mm x 25mm loading port

Crushing Size



  • Input:
    • Material Hardness must be < Mohs 8
    • Sample size: 5 - 20 mm diameter or thickness
    • ~ 200 g of input materials can be added at once

  • Output:
    • Output size : 0.1 mm -  3 mm (adjustable via a digital micrometer).
    • Crushing quantity:  ~ 200 g is accepted by underneath drawer each time.
    • Use a slide plate instead of the drawer, continuous output of samples can be achieved with continuous feeding of input materials. ( Sliding plate is optional at $200 extra )
    • Output grain size depends on the material properties (Hardness, elasticity, etc.)

Net Weight

150 lbs

Shipping Weight

185 lbs

Dimensions

L325mm×W500mm×H310mm

Compliance

CE certified

Warranty

One year’s limited warranty with lifetime technical support
