Lab Jaw Crusher Machine for Ores and Bulk Materials
Model Number:
TMAX-XPCInput Power:
1.5KWCompliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Lab Jaw Crusher Machine for Ores and Bulk Materials
Introduction of Lab jaw crusher machine
Jaw crusher is mainly used to crush a variety of ores and bulk materials with comprehensive strength of less than 320Mpa in middle granularity. PE series of lab jaw crusher has full specification, its feed size of materials ranges 125mm~1200mm, and it is the preferred primary crushing equipment. The equipment is mainly applied to crush materials in rough, medium and fine scale such as ore limestone, calcium carbide, carbide slag, shale, basalt , river gravel, blue stone, etc. The machine has a significant performance in cement plants, gravel plants, stones factory, thermal power plants desulfurization, calcium carbide plant, and it is widely used in mining metallurgy, chemical industry, building materials, water conservancy, transportation and other industries.
Working Principle of Lab Jaw Crusher Machine
Features of Lab Jaw Crusher Machine
1.The crusher ratio can reach to about 13 in uniform size;2.Adopt gasketed nesting population adjustment device,the adjusting range is big and reliable operation;
3.High efficiency,low energy consumption,compared with common small jaw crusher,it’s processing capacity 20%-35% higher than that of the same specification,and can reduce the energy consumption of 15%-20%;
4.Deep crushing chamber has no dead zone and can increase the feed ability and production capacity;
5.The use of small wear hyperboloid jaw plate service life can be prolonged by more than 3-4 times in the same process conditions,especially to the high abrasive material is more obvious;
6.The lubrication system is safe and reliable, convenient replacement parts, maintenance workload is small.
Specifications
Paremeters of Lab Jaw Crusher |
||||||||
Model No. |
Capacity (kg/h) |
Material Inlet Size(mm) |
Feeding Size(mm) |
Out-put Granularity (mm) |
Spindle Speed (rpm) |
Power (kw) |
Power Supply(v) |
Weight (kg) |
XPC100*60 |
230-400 |
100×60 |
50 |
6-10 |
650 |
1.5 |
3-phase 380 |
350 |
XPC100*100 |
200-1800 |
100×100 |
80 |
3-25 |
600 |
2.2 |
3-phase 380 |
300 |
XPC125*100 |
200-1800 |
125×100 |
80 |
5-25 |
500 |
3 |
3-phase 380 |
300 |
XPC100*150 |
200-1800 |
100×150 |
90 |
6-38 |
500 |
2.2 |
3-phase 380 |
360 |
XPC150*125 |
400-3000 |
150×125 |
100 |
6-38 |
500 |
3 |
3-phase 380 |
417 |
PE150*250 |
700-5000 |
150×250 |
120 |
10-40 |
350 |
5.5 |
3-phase 380 |
500 |
PEF60*100 |
45-550 |
60×100 |
50 |
1-10 |
290 |
1.5 |
3-phase 380 |
80 |
PEF100*100 |
65-850 |
100×100 |
80 |
1-25 |
600 |
2.2 |
3-phase 380 |
320 |
PEF100*125 |
300-2000 |
100×125 |
100 |
2-35 |
375 |
3 |
3-phase 380 |
360 |
PEF150*125 |
500-3000 |
150×125 |
120 |
4-45 |
375 |
3 |
3-phase 380 |
380 |

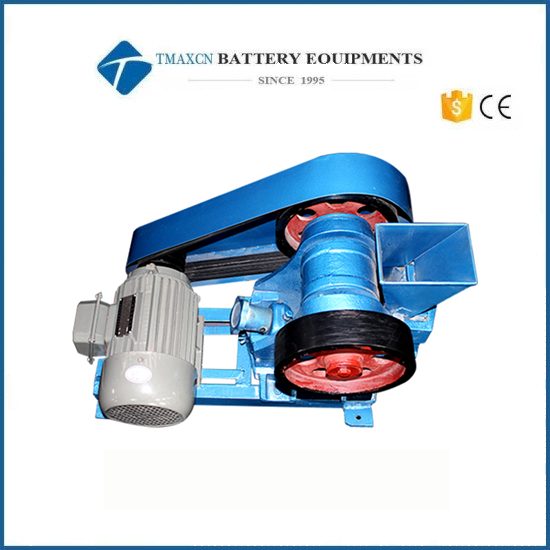

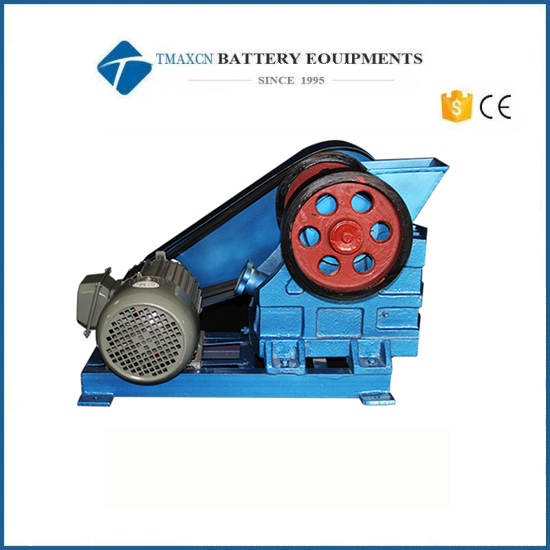

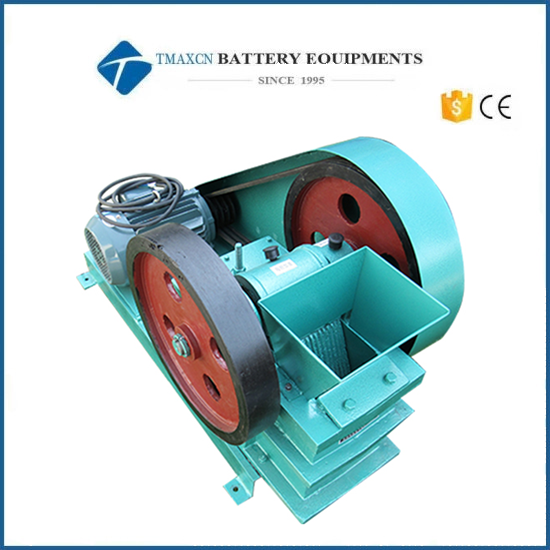

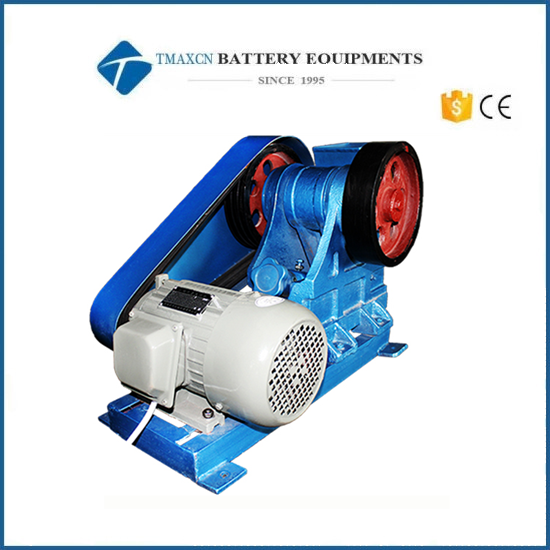

Product Images
