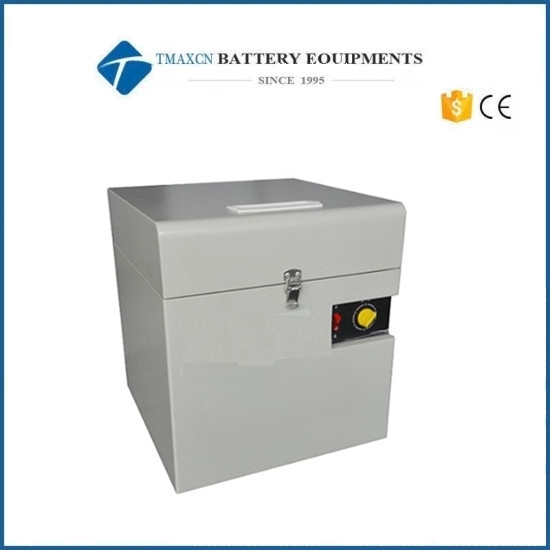

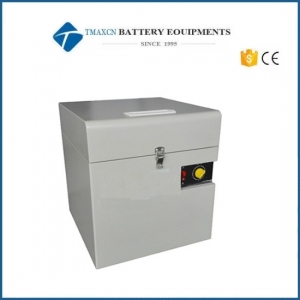

Compact Disk Mill with Steel Grinding Jar suitable for Finer Milling after Sintering

Feature

• Fast Crushing and Grinding to prepare the sample for finer milling.
• Interlock protection is included to cut the power if the lid is open during the crushing process.
• With Four secure fixture, MSK-SFM-DS can be fastened on the platform.
• An ideal miller for coal, ore, rock or ceramic compounds.
• Click the video left to see how it work for crushing

Working Voltage

• 208 - 240V AC 50Hz, 180W AC motor
• For operation under 110V AC, please order a 300W transformer.

Timer

0  to  5 minutes adjustable

Crushing & Grinding Capability



Grinding Jar Dimension

• Manganese steel grinding parts
• 100 mL capacity for about 50g of material

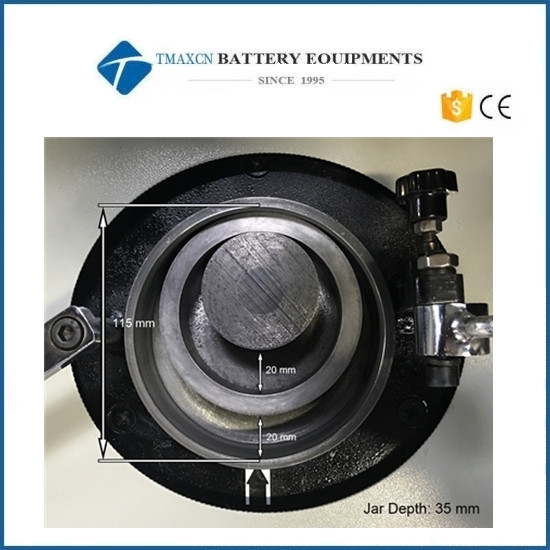

• Grinding Jar: 115mm I.D. x 35mm Depth (See Fig.4)
• Material:
• Material hardness must be lower than Mohs 8
• Space between grinding disc and jar can contain materials under 20mm in diameter. and 35mm in height. (See Fig.3)
• Product optional
• Product size: 80 - 200 mesh according to operating time.
• Please use our 3'' Dia. Sieve Set No.200&450 Mesh   or  Compact Ultrasonic Sieving System - MSK-SYU-3


  to filter the product (See Fig.1 and 2)

Net Weight

75 lbs

Shipping Weight & Dimensions

110  lbs; 40"x30"x27"

Dimension

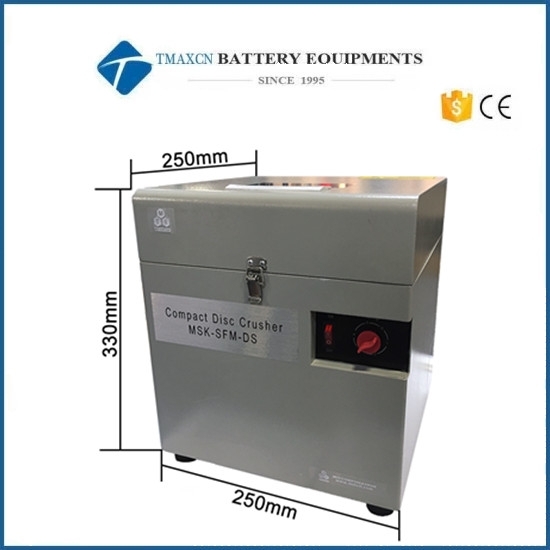

                    Machine: 250×250×330 mm (L x W x H)

Certification

CE Certified
NRTL certification are available upon request

Warranty

One-year limited warranty with lifetime technical support

Application Note

• Place grinder on a firm platform and isolated room to avoid noise, it is suggested to fasten the grinder on the platform.


• Please clean the grinding ring before each use.
• May cause contamination by Mangalloy (manganese steel) grinding disc and jar.
• Material hardness must be lower than Mohs 8
