Compact Comma Blade & Wire Rod Coating Machine
Model Number:
SIMY-LAB-CB300Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

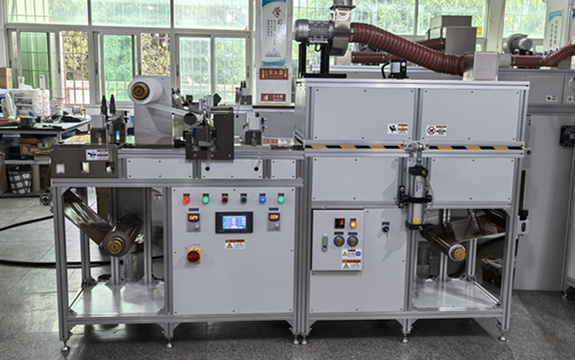

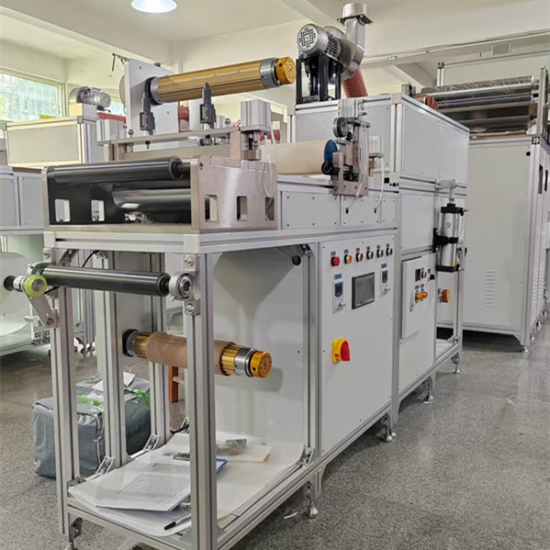

Compact Comma Blade & Wire Rod Coating Machine
The SIMY-LAB-CB300 is aprecision laboratory-grade comma blade coating machine designed forsmall-scale research, testing, and customized production. It is ideal forcoating high-viscosity materials onto PET, film, paper, fabric, and other substrates. With acustomizable design, this machine can be tailored to specific coating requirements, making it an excellent choice fornew material development, battery electrode coating, adhesive coating, and specialty film applications.
Key Features
1. Customizable Coating Width & Thickness
Standard max width:300mm (customizable up to600mm).
Adjustablecomma blade gap for precisecoating thickness control.
2. Precision Coating Technology
High-precisioncomma blade system ensures uniform coating.
Suitable for various materials includingsolvent-based, water-based, and UV-curable coatings.
3. Customizable Heating & Drying Options
Optional heating system for temperature-controlled coating.
Integrated drying system (hot air / IR / UV drying) based on customer needs.
4. Adjustable Speed & Tension Control
Coating speed:0.1-5m/min (customizable).
Automatic tension control for stable and precise coating.
5. User-Friendly Operation
Touchscreen control panel for intuitive operation.
Custom programming available for specific production requirements.
Technical Specifications
|
Parameter |
SIMY-LAB-CB300 |
|
Max Coating Width |
300mm (Customizable: 150mm-600mm) |
|
Coating Thickness |
5-200μm (Adjustable) |
|
Coating Speed |
0.1-5m/min (Customizable) |
|
Substrate Compatibility |
PET, Film, Paper, Fabric, Metal Foil |
|
Comma Blade Adjustment |
Manual / Motorized (Optional) |
|
Heating System |
Optional (Hot Air / IR / UV) |
|
Drying System |
Optional (Based on customer requirements) |
|
Control Panel |
Touchscreen / PLC Control |
|
Power Supply |
AC 220V, 50Hz (Customizable) |
|
Dimensions |
Customizable based on specifications |
|
Weight |
Varies based on configuration |
