Customizable Slot Die Coating Machine
Model Number:
SIMY-SD500Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

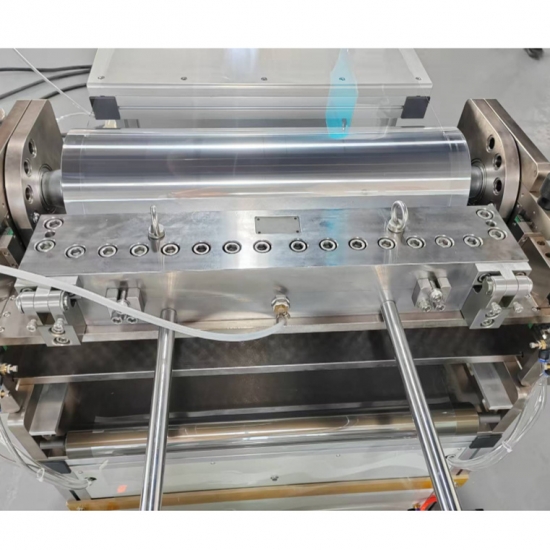

Customizable Slot Die Coating Machine
The SIMY-SD500 Slot Die Coating Machine is ahigh-precision coating system designed foruniform and consistent thin-film coatings. It features a 500mm standard coating width, withfull customization options to meet specific industrial and research requirements. The machine is suitable forbattery electrodes, optical films, electronic materials, and specialty coatings, offeringprecise thickness control and high coating repeatability.
Key Features
1. Customizable Coating Width & Thickness
Standard width:500mm (customizable from100mm to 1000mm).
Slot die gap adjustable forprecise thickness control (1-1000μm).
2. High Precision & Uniform Coating
Slot die coating head with fine adjustment ensures high uniformity.
Supportssolvent-based, water-based, and UV-curable coatings.
3. Custom Drying & Heating Systems
Optionalhot air, infrared (IR), or UV drying system.
Temperature-controlled coating for improved material compatibility.
4. Adjustable Speed & Tension Control
Coating speed:0.1-10m/min (customizable).
Automatic tension control system for stable film processing.
5. Advanced Automation & Control
Touchscreen PLC control system for precise process control.
Real-time monitoring & data logging for quality assurance.
Technical Specifications
|
Parameter |
SIMY-SD500 |
|
Max Coating Width |
500mm (Customizable: 100mm-1000mm) |
|
Coating Thickness |
1-1000μm (Adjustable) |
|
Coating Speed |
0.1-10m/min (Customizable) |
|
Substrate Compatibility |
PET, PI, Glass, Metal Foil, Paper |
|
Slot Die Adjustment |
Manual / Automatic (Optional) |
|
Drying System |
Hot Air / IR / UV (Optional) |
|
Heating System |
Optional (Temperature-Controlled) |
|
Control System |
PLC Touchscreen Interface |
|
Power Supply |
AC 220V, 50Hz (Customizable) |
|
Dimensions |
Customizable |
|
Weight |
Varies Based on Configuration |
