CR2016, CR2025, & CR2032 Manual Button Cell Battery Crimping Crimper Machine

  • Model Number:

  • Dimension(L*W*H):

    300L x 190 W x 310H mm
  • Net Weight:

    35 Kg
  • Compliance:

    CE certificate
  • Warranty:

    One Year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now

CR2016, CR2025, & CR2032 Manual Button Cell Battery Crimping Crimper Machine

TMAX-110 is a newly designed and coin-cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets. In addition, customers can easily replace the original die for disassembling purpose. it is an ideal tool for operations in a glove box.


It's also used for coin cell disassemble in laboratory research .It's suitable for CR20 serial ,CR24 serial button cell ,

with optional it can be used for other size of coin cell research .

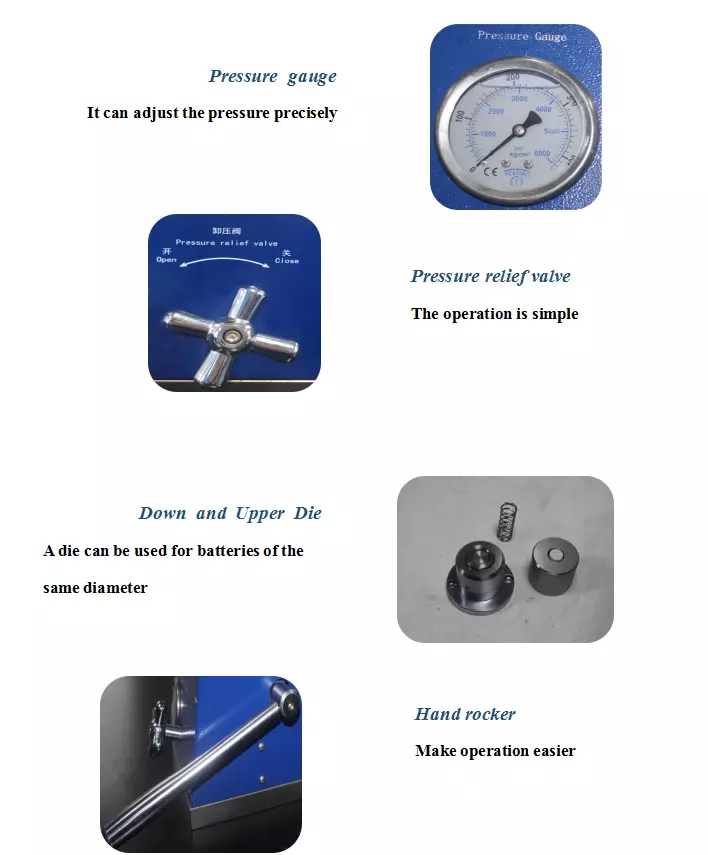

It's designed with built-in pressure gauge ,pressure adjustable .



WIth built-in pressure gauge ,disassembling pressure adjustable .

Pressure can be observed & controlled exactly by pressure gauge . Max 8T.

If battery got stuck when operation ,battery can be easily taken out  by twisting the screw arbor on the top the device.

It's small in size ,can be used in glove box .

With crimping die ,this device can be used for coin cell crimping ,CR20,CR24 and other size coin cell .

Very easy to change  die .



Max 8T , adjustable
Coin cell size
CR20XX ,CR24XX serial ,other size coin cel research is  available
heavy duty steel platform , plating & spraying , no rust
232mm X 190mm X 330mm
33 kg
Operation in glove box


Warranty : 1 year warranty with lifetime support

coin cell crimper

coin cell hydraulic crimper

hydraulic crimping machine for coin cell

coin cell crimping machine

crimping machine mold for coin cell

upper die diagram

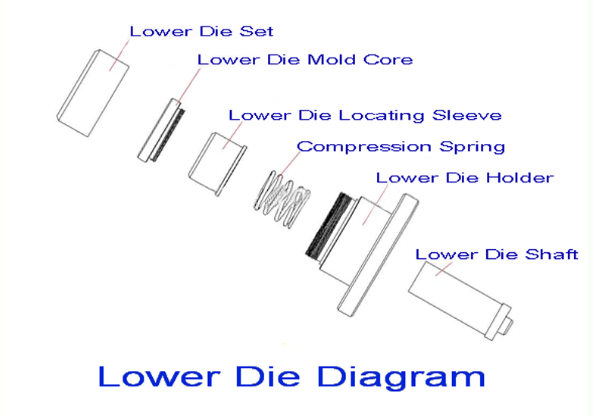

lower die diagram


 battery equipment
