Custom Anilox Roll Coating Machine
Model Number:
SIMY-AR500Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

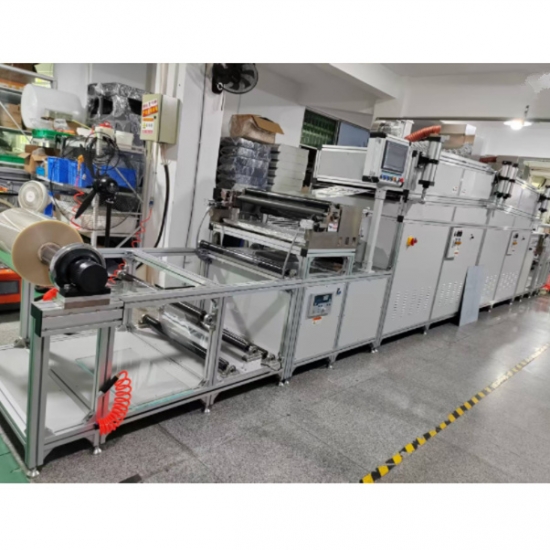

Custom Anilox Roll Coating Machine
Anilox roller coating machine is using an anilox roller to transfer the coating solution onto the substrate. The surface of the anilox roller has many tiny cells that can precisely control the amount of coating solution, achieving a high-precision and uniform coating. The coating width and oven length can be customized.
Specification
|
Control system |
independently developed |
|
Coating width |
200mm-1500mm Custom |
|
Coating method |
Anilox roller |
|
Coating thickness |
0.005-5MM (uniformity ± 3%) |
|
Thickness adjustment |
digital micrometer |
|
Heating channel |
drying channel 2-20 meters (1 meter per section) (customizable) |
|
Heating control |
thermocouple sensor |
|
Tension control |
Adjustable tension |
|
Deviation correction device |
fully automatic deviation correction for feeding/receiving |
|
Drying duct fan |
adjustable speed |
|
Oven insulation |
asbestos insulation layer |
|
Collecting and discharging diameter |
Collecting and discharging material diameter 300mm (customizable) |
|
Rear lamination |
finished lamination (steel pipe+rubber hose) |
|
Wind speed control |
with wind filtering at the outlet of the drying tunnel (uniform wind speed) |
|
Coating speed |
1-30 meters/minute (adjustable according to the drying condition of the adhesive) |
|
Drying passage roller |
304 stainless steel |
|
Drying channel material |
304 stainless steel (box) |
|
Heating method |
stainless steel heating tube |
|
Oven temperature |
room temperature -160 degrees (can be kept at a constant temperature) |
|
Drying track structure |
tiled |
|
Waste heat recovery |
with automatic waste heat collector |
|
Glue supply method |
pressure bucket |
|
Expansion axis |
3-inch gas expansion axis |
|
Drying channel lifting |
cylinder lifting |
|
Exhaust system |
centrifugal fan (external interface 100MM) |
|
Equipment power supply |
380V Control AC24V |
|
Equipment power |
12KW (peak) |
