Plaster Hydrogel Coating & Laminating Machine
Model Number:
SIMY-HC1500Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

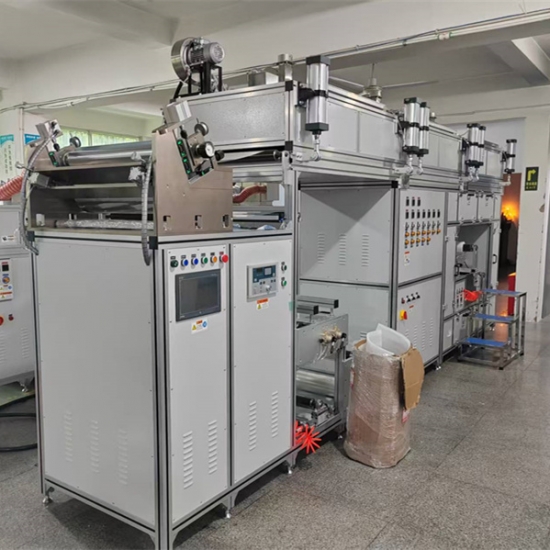

Plaster Hydrogel Coating & Laminating Machine
The Plaster Hydrogel Coating & Laminating Machine is specifically designed for the production of medical plasters and hydrogel products. It integrates the processes of coating, drying, and laminating, ensuring efficient and precise manufacturing. This machine is ideal for producing products such as pain relief patches, cooling gels, and wound care dressings.
Applications:
Pain relief patches
Cooling gel pads
Wound dressings
Hydrogel medical pads
Transdermal drug delivery patches
Features:
1. Customizable Coating System: Equipped with an advanced coating head, it ensures uniform application of hydrogel or adhesive materials.2. Efficient Drying System: The machine includes a multi-zone hot air dryer that provides consistent drying, adjustable temperature control, and energy-efficient operation.
3. High-Precision Laminating: Designed for precise alignment and bonding of films, fabrics, or other substrates with the coated hydrogel layer.
4. Automatic Tension Control: Ensures stable material handling with automated tension regulation for smooth and accurate operation.
5. Edge Position Control (EPC) System: Maintains proper alignment of materials during the coating and laminating processes.
6. User-Friendly Operation: Features a touch screen interface for easy control, monitoring, and adjustment of operating parameters.
7. Customizable Design: Available in various sizes and configurations to meet specific production requirements.
Technical Specifications:
- Coating Width: Up to 1550mm (Customizable)
- Coating Thickness: Adjustable from 0.1mm to 3mm
- Drying Temperature: 80°C to 120°C or cooling dry
- Laminating Speed: Adjustable, depending on the material
- Material Compatibility: Hydrogel, plaster adhesive, PET film, non-woven fabric, release liner, etc.
- Power Supply: 380V, 50Hz (Customizable)
