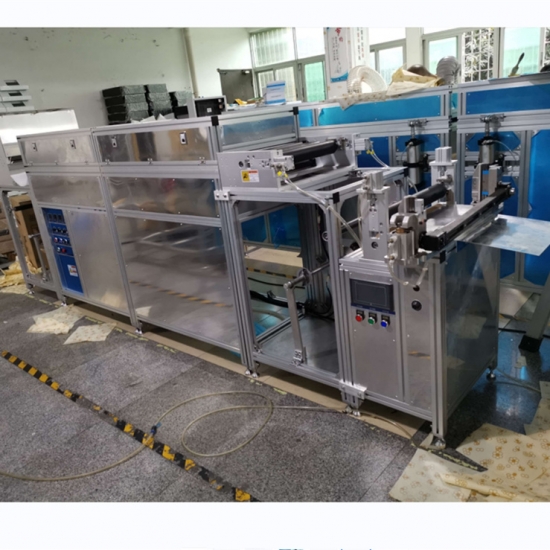

Customizable Beeswax Wrapper Coating Machine
Model Number:
SIMY-BWCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Customizable Beeswax Wrapper Coating Machine
This coater coats cotton fabric with beeswax oil, etc., and makes environmentally friendly packaging wrappers after drying in the air-cooled oven.
Functional description and technological process
1.1 Function description: This coater coats cotton fabric with beeswax oil, etc., and forms environmentally friendly packaging wrappers after curing in a drying oven.
1.2 Equipment technological process
1.2.1. Unwinding of coated substrate (tension control)→→Manual stop, cutting and reloading→→Drawing before coating→→Comma blade coating→→Reserved thickness measurement installation location→→ guide roller oven →→Deviation deviation at the oven exit→→Laminating unit→→Drawer roll discharge
1.2.2. Compound unwinding (overall edge correction)→→Manual cutting and replacement→→Laminating unit
1.2.3. Laminating unit →→Rewinding and cutting piece (optional)
Specification Parameters
|
Control system |
self-developed PLC touch screen |
|
Coating width |
100-1000mm (customizable) |
|
Coating method |
Doctor blade |
|
Drying method |
Air-cooled dry |
|
Cooling oven length |
|
|
Temperature |
normal temperature ~120 degrees |
|
Coating speed |
0-5 meters/min (customizable) |
|
Tension control |
Automatic tension |
|
Winding device |
Automatic winding |
|
Cutter(optional) |
Flat cutter |
|
Heated cylinder |
30L |
|
Power supply |
220V, 50/60Hz, 5000-8000W |
