Customizable Teeth Whitening Strips Coating Machine Dental Stickers Coater
Model Number:
SIMY-TWSCCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

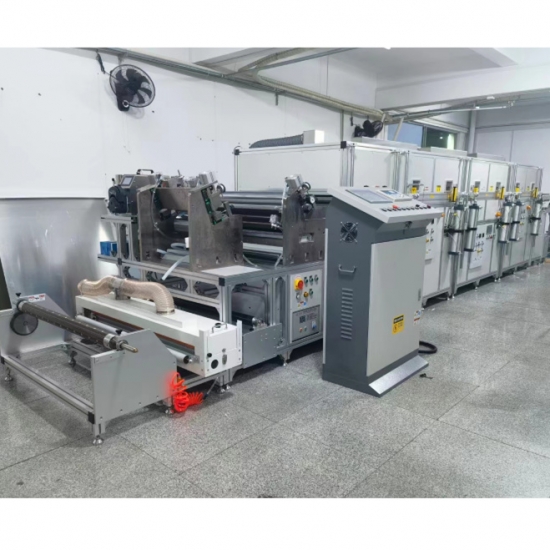

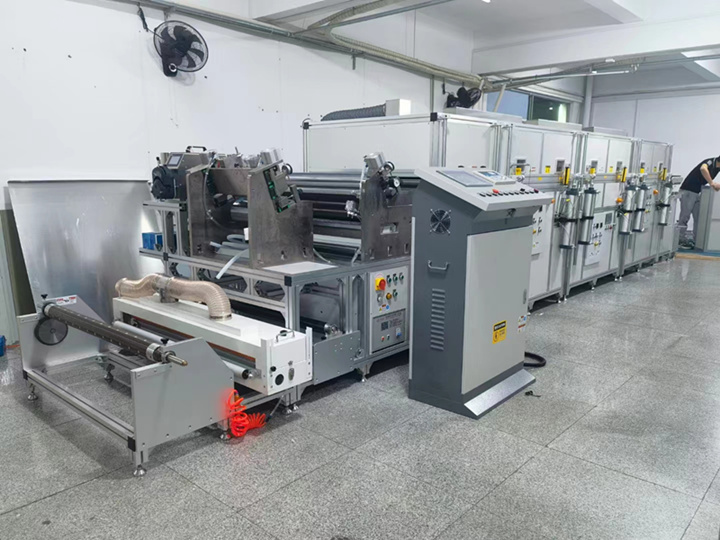

Customizable Teeth Whitening Strips Coating Machine Dental Stickers Coater
This equipment is specialized in making liquid materials into thin film. It can be used to make quick-dissolve oral films, trans films, and mouth freshener strips, having wide application range in pharmaceutical field, food industry and etc.,
Specification
|
Control system |
Independent research and development system |
|
Uniform coating |
＜6% |
|
Coating width |
Effective coating width 300MM（discharge 400MM), customizable |
|
Coating thickness |
0.01-2MM（wet film） |
|
Coating typoe |
Double-sided + single-sided double-ended (can be used separately) |
|
Tension control |
Automatic tension adjustment (according to the membrane tension required to adjust) |
|
Doctor blade lift |
Pneumatic lifting |
|
Oven length |
2-20 meters (2 meters per section, customizable) |
|
Dryingoven temp |
Normal temperature ~100 degrees (can be segmented constant temperature) |
|
Heating method |
Electrical heating |
|
Heating tube |
Adopt stainless steel fin heating tube |
|
Deviation correcting device |
Automatic rectifying of winding |
|
Production speed |
0.1-5 m/min (steady at low speed) |
|
Roll up function |
Double reel up and down |
|
Balance of winding |
Floating roll |
|
Stripe function |
Strip with double edge |
|
Waste collection unit |
Double aeration axis with magnetic powder |
|
Exhaust system |
Adjustable wind power |
|
Oven blower |
Adjustable wind power |
|
Oven lift |
Pneumatic automatic lifting |
|
Glue supply system |
Upward side |
|
Diameter of retraction |
Retracting and discharging diameter 500MM |
|
Type of motor |
3-wire variable frequency motor |
|
Emptying device |
Inflatable shaft 3 inches |
|
Lamination station |
Automatic laminating (with heated roller) |
|
Equipment material |
Aluminum alloy |
|
Power supply |
380V 50Hz |
|
Equipment power |
60KW |
