Customizable UV Foil Transfer Coating Machine Cold Foil Stamping Machine
Model Number:
SIMY-UVTCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Customizable UV Foil Transfer Coating Machine Cold Foil Stamping Machine

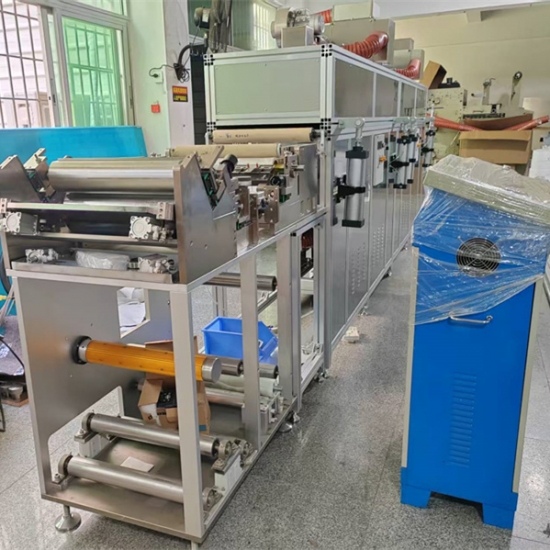

Custom Cold Foil Stamping Machine is designed for high-precision and efficient foil printing applications. Whether you need cold foil stamping for labels, flexible packaging, or specialty materials, we offer fully customizable solutions to meet your specific production needs.
Key Features
1. Customizable Width Options: Available in650mm, 1000mm, or other sizes based on your requirements.2. High-Speed & Precision: Max running speed up to80m/min, ensuring fast and accurate foil transfer.
3. Versatile Material Compatibility: Works withpaper, plastic film, labels, and flexible packaging.
4. Advanced Foil Tension Control: Ensures smooth and consistent stamping results.
5. Flexible Cold Foil Methods: Supports bothoffset cold foil (for litho printing) and flexo cold foil.
6. Multiple Adhesive Options: Compatible withUV-curable adhesives and water-based adhesives.
7. Automated Control System: PLC touchscreen control with anauto registration system for precise alignment.
8. Custom Automation Features: Optional automatic unwinding & rewinding systems.
Technical Specifications
|
Parameter |
Specification (Customizable) |
|
Max Foil Stamping Width |
500mm, 650mm, 1000mm, or custom |
|
Max Material Width |
550mm, 700mm, 1100mm, or custom |
|
Max Running Speed |
Up to 80m/min |
|
Material Thickness |
0.03mm - 0.3mm |
|
Power Supply |
380V 50Hz, Three-Phase |
|
Foil Type |
Metallic Foil, Holographic Foil |
|
Cold Foil Method |
Offset Cold Foil, Flexo Cold Foil |
|
Control System |
PLC Touchscreen |
|
Auto Registration System |
Yes (optional) |
|
Unwinding & Rewinding |
Single or Double Station |
|
Adhesive Type |
UV Adhesive, Water-Based Adhesive |
