Desk-Top Stepless Speed Variation Vacuum Mixer For Li-ion Battery Research

  • Model Number:

    MSK-SFM-7
  • Type:

    Mixing Machine
  • Dimension(L*W*H):

    330*310*510mm
  • Net Weight:

    30kg
  • Compliance:

    CE certificate
  • Warranty:

    2 Years with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

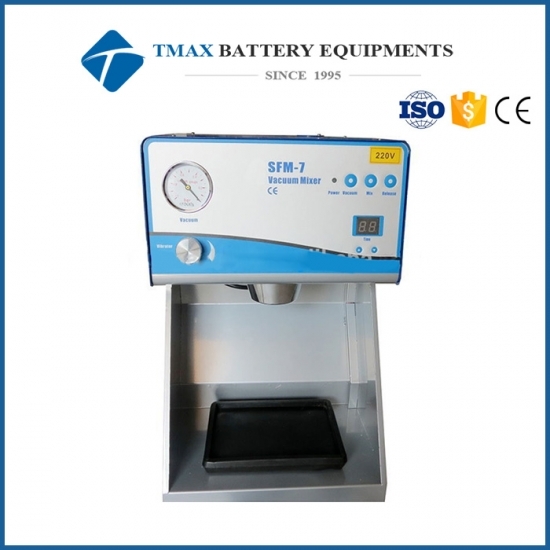

Desk-Top Stepless Speed Variation Vacuum Mixer For Li-ion Battery Research

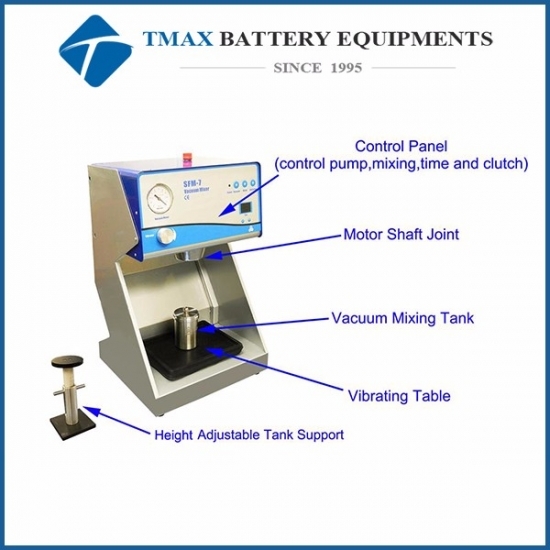

1. MSK-SFM-7 vacuum mixer is with build-in pump which can vacuum the mixing container to -0.08Mpa and the step- less mixing speed at 320rpm. So we don’t need to connect with vacuum pump separately.
2. This vacuum mixer and laboratory vacuum mixing machine are designed to produce coating slurry by mixing small batch of chemical and compound under vacuum to remove gas bubble and protect sample from oxidation.
3. It is excellent for preparing battery electrode paste and various ceramic materials in research lab.

4. The vibration plate is located at the bottom to remove gas bubble before vacuum mixing and disperse the slurry after mixing.

SPECIFICATIONS:

Model

Vacuum mixer MSK-SFM-7

Voltage Input

Single Phase 110VAC or 220VAC, Customized

Power

150W

Power plug

Supply with required power plug according to different country

Rotary Speed

320 rpm

Mixing Container

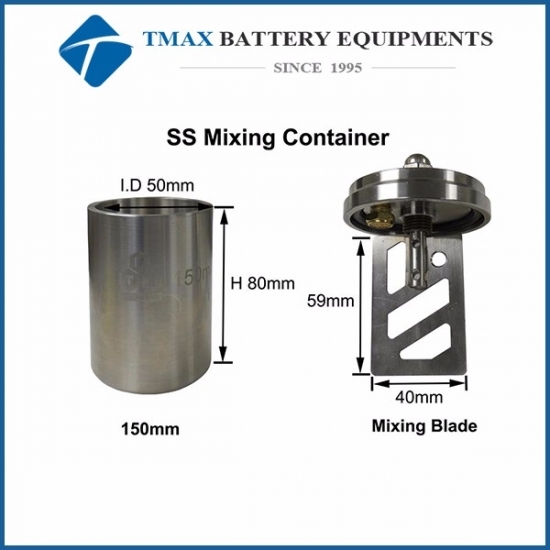

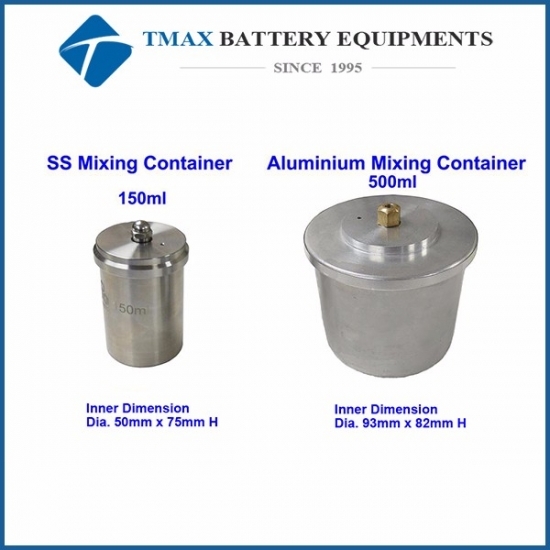

Two vacuum sealed containers are included.

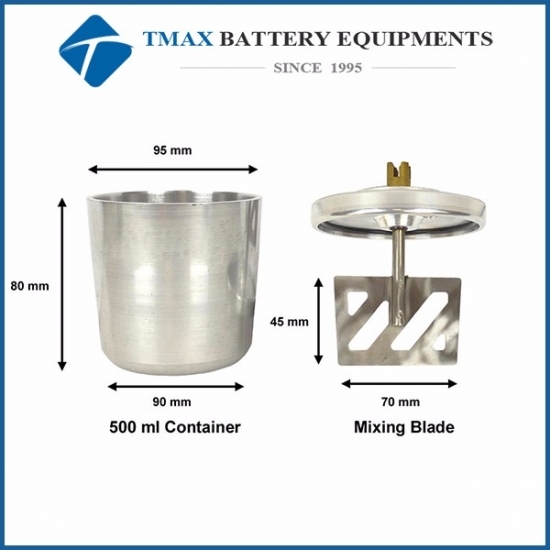

One 150ml stainless steel and one 500ml aluminum

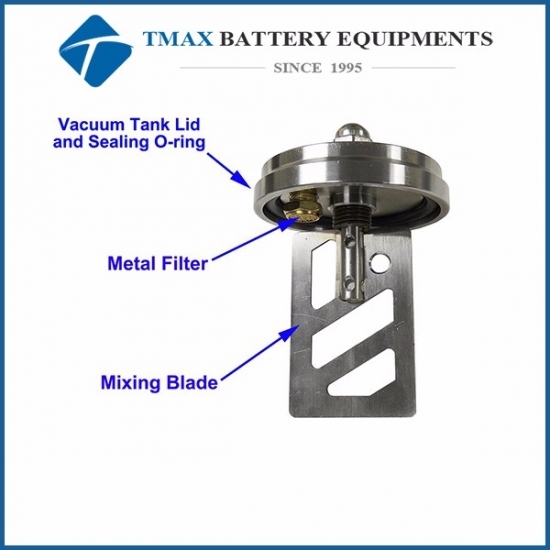

Mixing blade is built in top of cover of container.

Vacuum pump & Vacuum Level

Built in single stage vacuum pump
Vacuum Level: -0.08~0.09 Mpa

Vibration Plate

Vibrating at 1000 HZ

Dimensions (L*W*H)

13''L x 12''W x 21''H, 330*310*510mm

Shipping Dimensions

16''L x 19''W x 24''H, 420*500*600mm

Net Weight

70 lbs, 30kg

Compliance

CE certified



Application Notes

Please note that the main duty of this product is to remove the bubbles from the slurry during the wet mixing stage.

For the best mixing uniformity, please select our professional Vacuum mixer
MSK- SFM-7 system or vacuum planetary disperse mixer

Warranty

 Two years limited with lifetime support
