Electric Heated Dual-Roll Press for Electrode Calendering
Model Number:
TMAX-JS250DCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

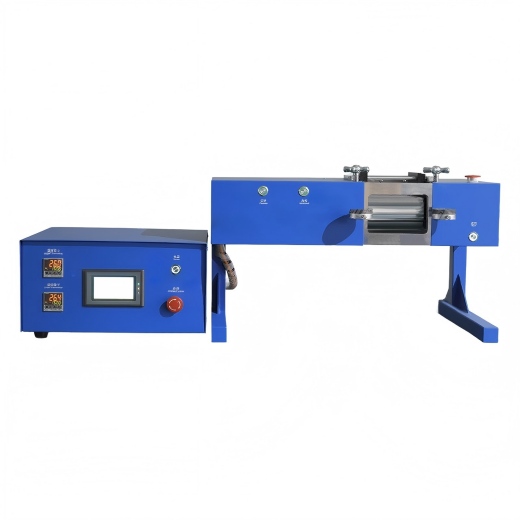

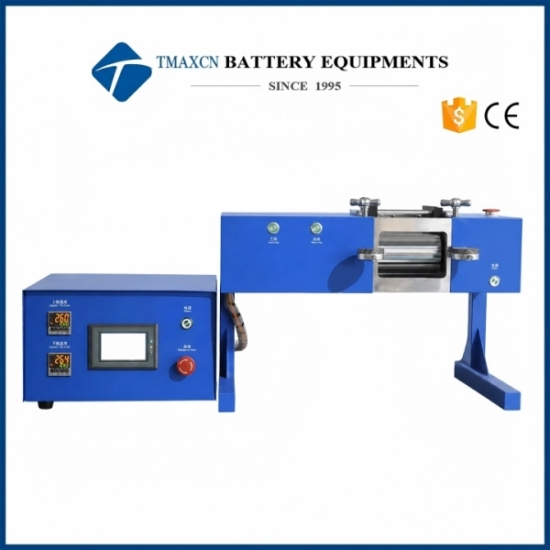

Electric Heated Dual-Roll Press for Electrode Calendering
Application
The TMAX-JS250D electric heated two pess rolling machine is designed for laboratory-scale rolling of battery materials, precious metals (gold, silver), and non-ferrous metals (copper, aluminum) under controlled heating conditions. It allows adjustable rolling thickness and simple operation, making it particularly suitable for thinning and increasing the density of lithium ion battery electrodes in clean energy applications.
Key Features
- Heating rolling with adjustable temperature and digital display
- High hardness rollers with hard chrome plating (up to HRC 62), corrosion-resistant
- Dual-motor drive system for stable and efficient rolling
- Adjustable rolling thickness and speed
- Electric operation for automated processing
- Compact design with easy operation and flexible use
- Split-type structure, suitable for operation inside a glove box
Technical Specifications
|
Parameter |
Specification |
|
Roller Diameter |
Φ96mm |
|
Roller Surface Hardness |
HRC62 or above |
|
Roller Surface Finish |
0.8 |
|
Rolling Thickness |
0-2mm |
|
Pressing Width |
0-250mm |
|
Roller Placement |
Horizontal |
|
Rolling Temperature |
Up to 150°C |
|
Feeding Speed |
Roller1: 0-37mm/s Roller 2: 0-22mm/s |
|
Power Supply |
AC220V or 110V/ 50Hz |
|
Power Consumption |
1.6 kw |
|
Machine Dimensions |
Working unite: L580mm × W700mm × H750mm Control unite: L470mm x W460mm x H260mm |
|
Machine Weight |
150kg |
