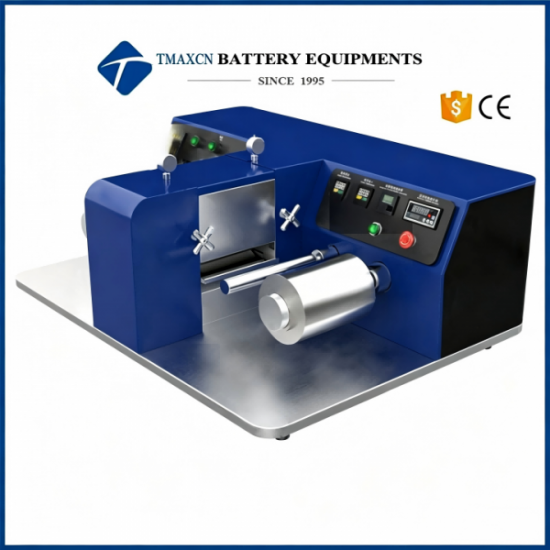

Vertical Heating Roll Press Calender Machine with Unwinder and Rewinder
Model Number:
TMAX-JSF100Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

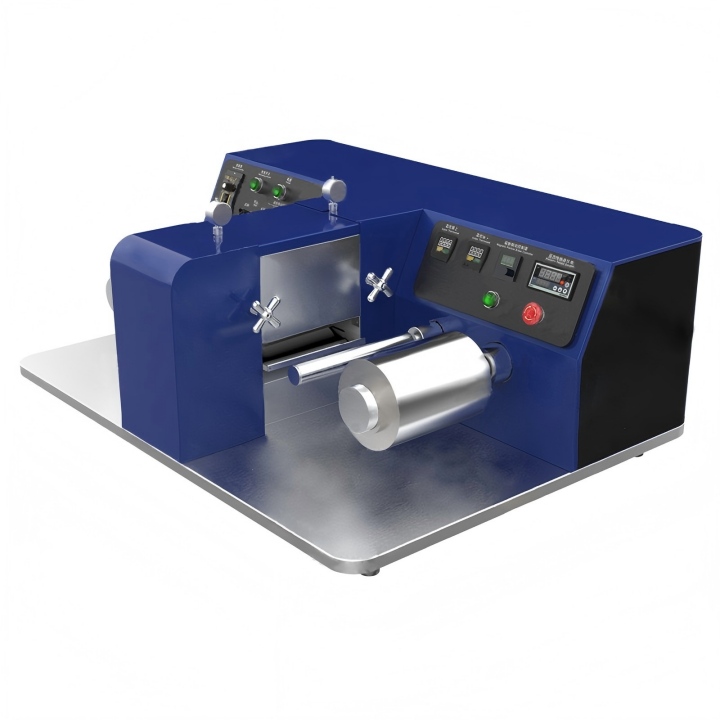

Vertical Heating Roll Press Calender Machine with Unwinder and Rewinder
Application
The TMAX-JSF100 electric heated two pess rolling machine is designed for laboratory-scale rolling of battery materials, precious metals (gold, silver), and non-ferrous metals (copper, aluminum) under controlled heating conditions. It allows adjustable rolling thickness and simple operation, making it particularly suitable for thinning and increasing the density of lithium ion battery electrodes in clean energy applications.
Technical Specifications
|
Parameter |
Specification |
|
Roller Diameter |
Φ96mm |
|
Roller Surface Hardness |
HRC62 or above |
|
Roller Surface Finish |
0.4 or above |
|
Rolling Thickness |
0-2mm |
|
Pressing Width |
0-100mm |
|
Roller Placement |
Vertical |
|
Rolling Temperature |
Up to 200°C |
|
Feeding Speed |
0-10mm/s |
|
Power Supply |
AC220V or 110V/ 50Hz |
|
Power Consumption |
2000w |
|
Machine Dimensions |
L1090mm × W815mm × 375mm |
|
Machine Weight |
200kg |
