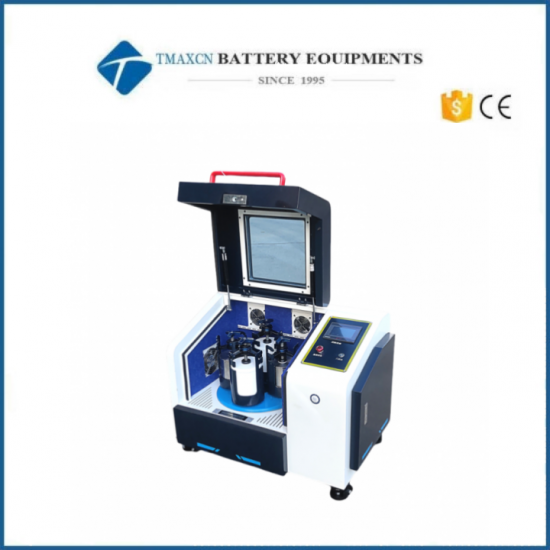

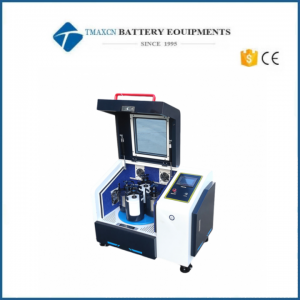

Lab 1620RPM 50ML-1000ML High End Planetary Ball Mill

Planetary ball mill is a necessary device for mixing, fine grinding, sample preparation, nanomaterial dispersion, new product development and small batch production of high-tech materials. The product is small in size, full in function, high in efficiency and low in noise. It is the ideal equipment for scientific research units, colleges and universities, and enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time in each experiment). The vacuum ball mill can be used to grind samples in vacuum. Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, beauty, environmental protection and other departments. Speed, forward and reverse rotation time, and total grinding time can be set according to process requirements.

How it works:

PBM series planetary ball mill is equipped with four ball mill tanks on the same planetary mechanism disk, when the planetary disk rotates, the ball mill tank rotates around the axis of the turntable while rotating around its own axis, making planetary movement. The grinding balls in the tank collide with each other in high-speed motion, grinding and mixing samples. The product can be ground and mixed by dry and wet methods with different particle sizes and materials, and the minimum particle size of the grinding product can be 0.1 micron (that is, 1.0×10mm-4).

Technical parameters:

Product characteristics

a. Equipment through professional appearance design, shell using high precision laser cutting, CNC bending molding, generous and exquisite, high-end stable;

b. The planetary disk and structural components are processed by CNC processing technology, and the nitriding metal heat treatment process ensures that the rotating shaft is wear-resistant to prevent shaft breakage. The transmission gear is made of non-metal and metal combination precision gear with high temperature and wear-resistant resistance, and the gear box is soaked with liquid oil for lubrication, which is safe and reliable, low noise, no pollution and low loss.

c. Equipped with induction light device: the working light is controlled by infrared human body sensor, people come to light, people go light off, which is convenient and energy saving.

d. The ball grinding tank adopts the planetary movement, the ball grinding efficiency is high, the particle size is fine;

e. The inverter has undervoltage and overcurrent protection, which can protect electrical parts such as motors.

f. The cover of the machine adopts the hydraulic support rod to cover, and the electromagnetic safety lock and the latch type limit switch ensure the normal operation of the equipment and the personal safety of the operator;

g. The glass of the window is made of double-layer vacuum tempered glass, which not only soundproofes and reduces noise, but also ensures personal safety. The ball grinding cavity is inlaid with sound-absorbing cotton;

h. Electrical control part through the design of independent control box equipment, 5 sets of exhaust fans forced air heat dissipation, composed of one in one out of the internal circulation heat dissipation system;

i. Low center of gravity, stable performance, compact structure, easy operation, safe and reliable, low noise, no pollution, small loss;

High-energy planetary ball mill products related pictures;

(Patented product -- three-claw self-locking device)
