Lab 20T-100T Fully Automatic Electric Cold Isostatic Pressing Machine
Model Number:
TMAX-ZYJPCompliance:
CE certificateWarranty:
Two Years limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

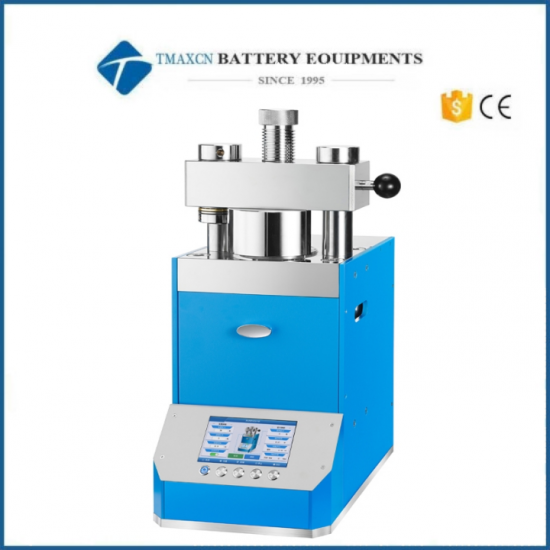

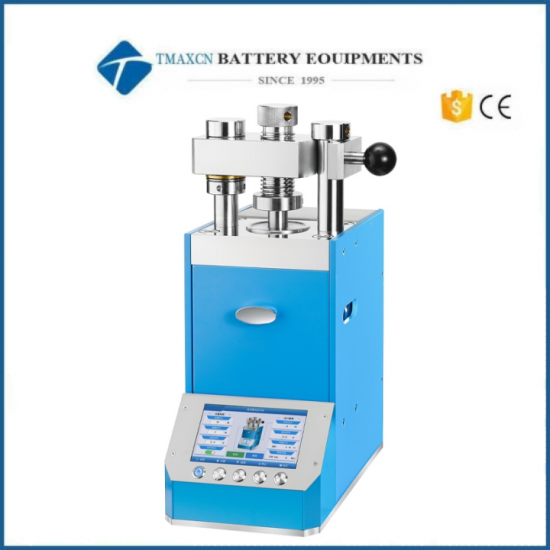

Lab 20T-100T Fully Automatic Electric Cold Isostatic Pressing Machine
1. Instrument Overview:
Hydrostatic press is suitable for the uniformity / density of sample forming requirements more strict users, can through the static pressure chamber of powder is directly forming, can also have formed sample secondary pressure molding to make its density more uniform, has been widely used in scientific research, teaching, testing, pharmaceutical, catalysis, chemical, and other laboratory industries.
TMAX-ZJYP series automatic static machine using plate rocker arm structure, operation is more convenient, automatic operation: program pressure / slow pressure-pressure-pressure-timing pressure relief, steel protection and organexiglass protective door, operation production more safe more assured, stable pressure, easy to operate, is a new nuo relay static press based on research and development of another innovation, at present, the company can undertake non-standard custom products, specific please electric vertical inquiry.
2. Main technical parameters of ZJYP series:
|
Instrument model |
ZJYP-20T |
ZJYP-40T |
ZJYP-60T |
ZJYP-100T |
|
pressure limit |
1-20.0T/0.1t |
1-40.0T/0.1t |
1-60.0T/0.1t |
1-100.0T/0.1t |
|
piston diameter |
Ф110mm |
Ф130mm |
Ф150mm |
Ф200mm |
|
Maximum cylinder trip |
50mm |
|||
|
Pressure mode |
Electric pressure |
|||
|
Pressure process |
Intelligent automatic, program pressure / slow pressure-automatic pressure-automatic pressure-timing pressure relief |
|||
|
display mode |
XNNETS 4.3-inch LCD screen |
|||
|
hold time |
0-999.59 (points.second) |
|||
|
Pressure conversion |
The program automatically converted and digital showed the sample bearing pressure (Mpa) |
|||
|
Equipment protection |
Steel plate protection + plexiglass protection door |
|||
|
structure of equipment |
One type, on the plate rocker arm structure, easy to operate, save time and effort |
|||
|
device power supply |
220V/1500W（50Hz/60Hz） |
|||
|
Isostatic pressure chamber dimensions |
Ф30x150mm |
Ф40x150mm |
Ф50x150mm Or the Ф30x150mm |
Ф60x150mm |
|
The maximum pressure of the cavity |
300Mpa |
300Mpa |
Of either 300 Mpa or 500 Mpa |
300Mpa |
|
outline dimension |
240x390x560mm |
280x460x660mm |
300x500x680mm |
330x580x720mm |
|
instruments weight |
120kg |
180kg |
240kg |
290kg |
