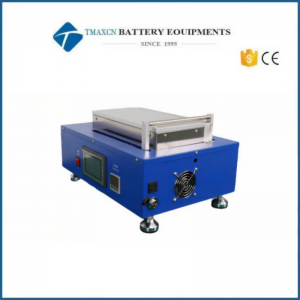

Lab Automatic 300mm Tape Casting Coater Film Coating Machine
Model Number:
TMAX-TM300Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

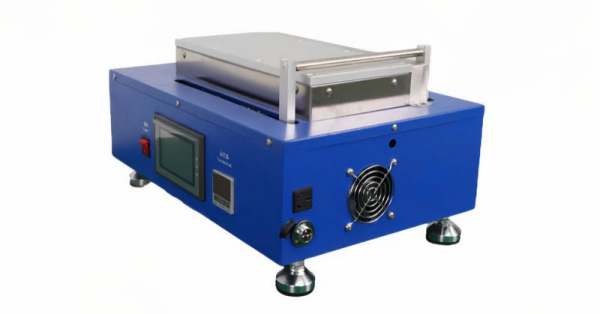

Lab Automatic 300mm Tape Casting Coater Film Coating Machine
The automatic coating machine is widely used in various coating research applications,including ceramic films, crystal films, battery material films, and specialized nano-films.
Key Features
· Adjustable coating speed from 0 to 100mm/sec.
· Vacuum aluminum plate, enabling quick placement and removal of substrates.
· Adjustable stroke range from 10mm to 250mm, controlled by an inductive proximity switch.
· Micron-level adjustable film applicator (accuracy 0.01mm) with a 100mm-wide blade.
· Compact design, saving space.
· Sleek and modern appearance, featuring a three-dimensional geometric sheet metal design.
Technical Specifications
|
Parameter |
Specification |
|
Coating Speed |
0-100 mm/sec (adjustable) |
|
Maximum Stroke |
300mm |
|
Vacuum Plate |
Equipped with a vacuum aluminum plate |
|
Vacuum Plate Size |
L415mm × W200mm × H30mm |
|
Blade Adjustable Range |
0.01 - 3.5mm |
|
Power Supply |
220V / 50Hz |
|
Machine Weight |
50kg |
|
Machine Dimensions |
L500mm × W310mm × H200mm |
