Laboratory Slot-Die Coating Machine For Lith Battery Electrode Coating
Model Number:
TMAX-SLDCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

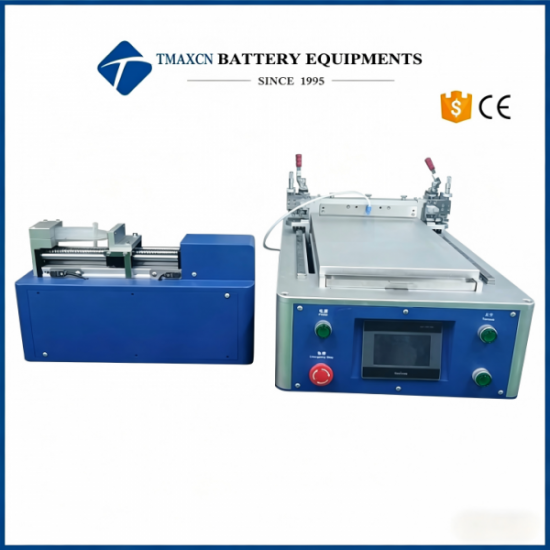

Laboratory Slot-Die Coating Machine For Lith Battery Electrode Coating

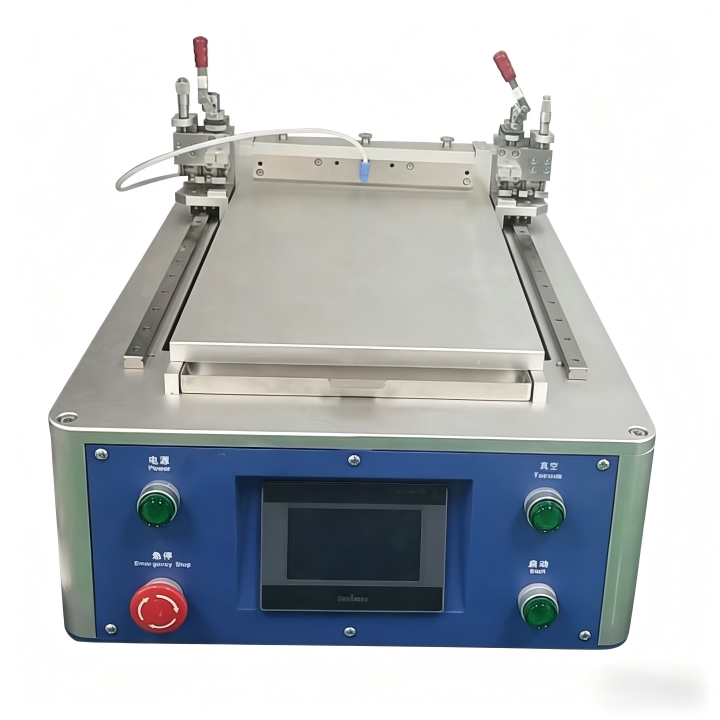

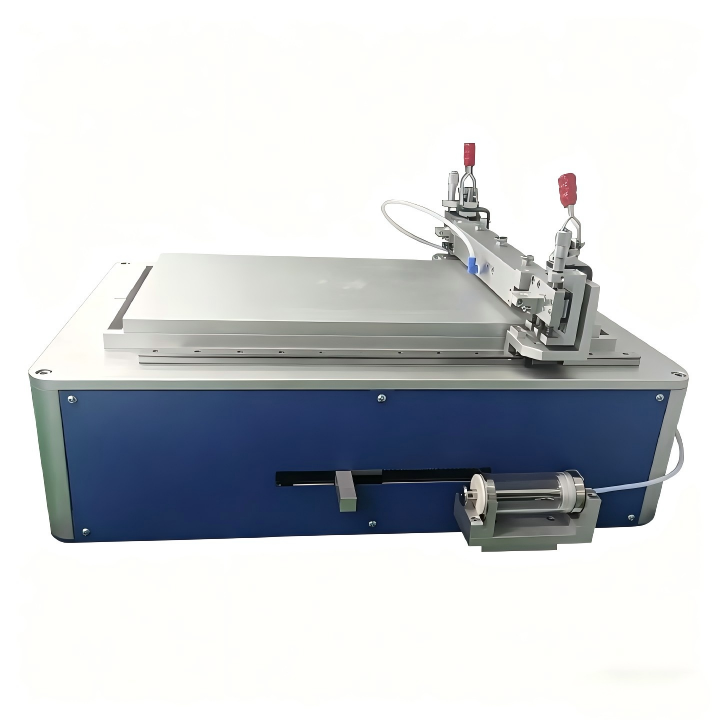

TMAX-SLD is a high-precision laboratory slot die coating system designed for uniform thin-film coating in advanced material research, including lithium battery electrodes, solar films, OLED layers, and conductive polymers.
- High coating uniformity for research-grade results
- Multi-functional coating methods in one system
- Stable and repeatable coating performance
- Integrated heating & vacuum platform
- Ideal for lab research and pilot-scale development
Product Overview:
- Slot die coating system with max 250mm stroke
- Supports multiple coating methods (slot die, doctor blade, wire rod, etc.)
- Designed for lab-scale precision coating and material development

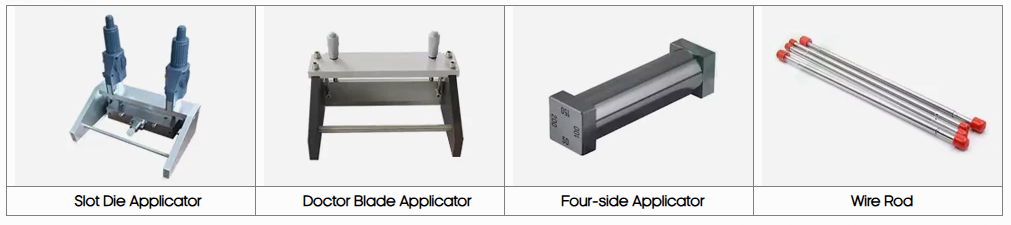

Supported Coating Methods:
- Slot Die Coating
- Doctor Blade Coating
- Four-side Applicator
- Wire Rod Coating
Technical Specifications
|
Parameter |
Specification |
|
Coating Speed |
0-100 mm/sec (adjustable) |
|
Maximum Stroke |
250mm |
|
Vacuum Plate |
Equipped with a vacuum aluminum plate |
|
Vacuum Plate Size |
365mm (L) × 200mm (W) × 30mm (H) |
|
Blade Adjustable Range |
0.01 - 3.5mm |
|
Heating & Drying System |
Room temperature to 200°C, digital temperature controller, accuracy ±1°C |
|
Power Supply |
220V or 110V/ 50Hz |
|
Machine Weight |
65kg |
|
Machine Dimensions |
500mm (L) × 310mm (W) × 330mm (H) |
1. We supply machines with battery technology support.
2. We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
