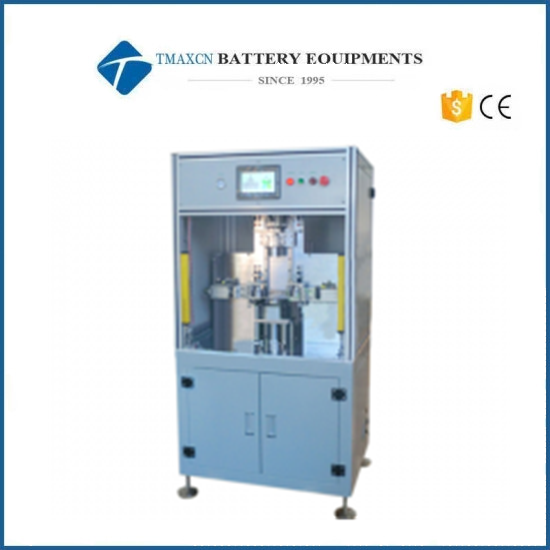

Lab Automatic Grooving Machine For Super Capacitor Shell

  • Model Number:

    TMAX-GC60
  • Type:

    Grooving Machine
  • Input Power:

    1000W
  • Dimension(L*W*H):

    l850mm * W 650mm * 1600mm
  • Net Weight:

    300kg
  • Warranty:

    Two years warranty,one stop service,provide full solutions
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
DESCRIPTION

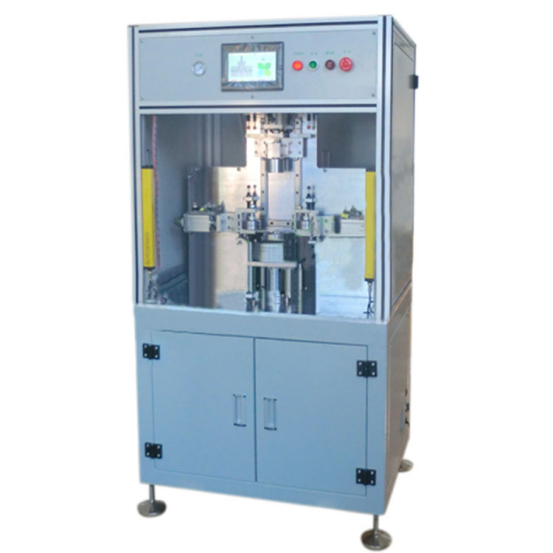

Lab Automatic Grooving Machine For Super Capacitor Shell


Product Description

Suitable for automatic grooving of super capacitor shell.


Main Features

*Using jacket type clamping fixed groove, centering coaxiality is high, rolling groove is even.

*High precision linear guideway group is adopted for guiding feed, with high precision and stable dimension.

*The height of the supercapacitor can be adjusted up and down, and the groove size can also be adjusted.

*Product counting function, convenient to see the processing quantity.

*Rolling groove, product rotation speed is uniform and adjustable.

*It adopts light curtain electronic protection, which is safe and reliable.

*PLC, touch screen control, easy to achieve automation.

*Geometric design, exquisite and beautiful appearance.



Working Process Description

Manually put the product into the jacket, press the foot switch, the lower cylinder will tighten the annular jacket, and the capacitor will be clamped and fixed concentrically. The upper movable spindle pressure head will press the capacitor end cover to make the end cover in a flat state. Then the motor will start to drive the jacket spindle to rotate. The air cylinder will drive the left arm grooving wheel, and the right arm necking wheel will feed at the same time, so that the product can be positioned in the center of the jacket, and the clamping wheel of the right arm will feed at the same time After completion, all parts return to their original position and take out the products.



Technical Parameters

Applicable products

Diameter 60 mm batteries, super capacitor (diameter can be customized), height 50-180mm

Groove depth

0.5 ± 0.05mm (adjustable)

Groove height

11 ± 0.1mm (adjustable)

Feed speed

30mm / s, adjustable speed;

Service life

more than 500000 times.

Capacity

≥ 3pcs

The rate of crop movement

98%

Gas source

0.5 ~ 0.8MPa

Power supply

220 V / 50 Hz

Power

2kW

Overall dimension

l850mm * W 650mm * 1600mm

Weight

300kg
