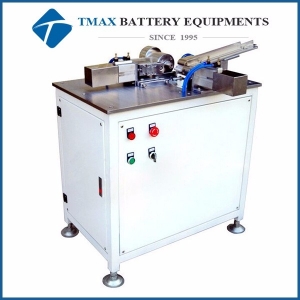

Semi-auto Roll Groover Grooving Machine For Cylinder Battery
Model Number:
TMAX-JK-GCJ-01Input Power:
750WDimension(L*W*H):
800mm(L) x 460mm(W) x 720mm(H)Net Weight:
68kgCompliance:
CE CertifiedWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Semi-auto Rolling Grooving Machine For Cylindrical Cases

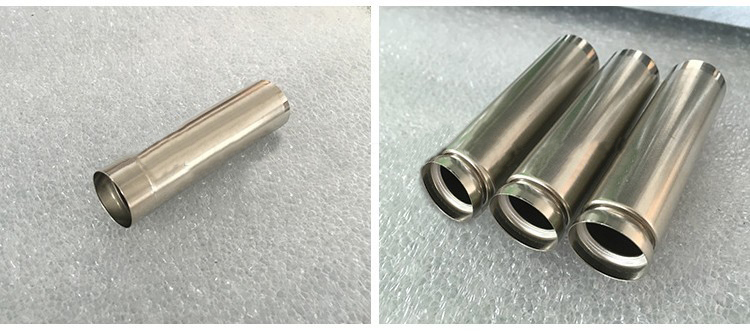

TMAX-JK-GCJ-01 Series is a CE Certified semi-auto grooving machine. It is used for grooving various cylindrical cases including CR123, 18650, 26650, 32650 and AA.
Specifications
|
Working Voltage |
380V AC, 50/60Hz |
|
Max. Power Consumption |
750W |
|
Air Pressure |
>0.5 MPa is required (Air Compressor is not included) |
|
Compatibility |
CR123 / 18650 / 26650 / 32650 / AA |
|
Grooving Dimensions |
1. Depth: 1.2 - 2.0 mm 2. Width: 1.1 - 1.5 mm |
|
Grooving Accuracy |
+/- 0.1 mm |
|
Grooving Blade Durability |
>1 million times |
|
Productivity |
2400 grooving per hour |
|
Product Dimensions |
800mm(L) x 460mm(W) x 720mm(H) |
|
Net Weight |
68 kg (150 lbs) |
|
Warranty |
One year limited with lifetime support |
|
Application Notes |
1. Customized die for other cylindrical cell types is available upon request 2. Each type of cylinder cell can only be grooved specifically by the certain model of this equipment. |
