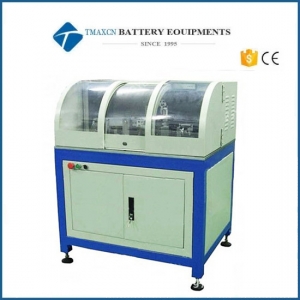

Ultracapacitor Roll Grooving Groover Machine For Supercapacitor

  • Model Number:

    TMAX-ZGC32
  • Compliance:

    CE certificate
  • Warranty:

    1 year limited warranty with lifetime support
  • Delivery Time:

    30 days
contact now
DESCRIPTION

Roll Grooving Groover Machine For Supercapacitor


It is used in the channeling process of cylindrical battery that is producted in laboratory and enterprise in small scale.

CE Certificate semi-auto grooving machine for all kinds of cylindercial battery 18650, 26650, CR123A and supercapacitor with changing die.



Functional characteristic:

The channeling molds that are equipped withstandard 18650 cylindrical battery;

It can be used in the channeling process of the steel shells of 26650 and other cylindrical battery by relace molds;

The dimension of the channeling can be adjusted slightly,the size is small,which makes it easy to operate and the appearance is attractive;

The channeling is high precision and the dimension is stable.



SPECIFICATIONS:

Model

TMAX-ZGC32 Roll Groove Machine

Power source

AC200V/50HZ

Total power

200W

Air source

0.5-0.7Mpa

Depth of the channeling

1.2-2.0mm(adjustable)

Width of the channeling

1.5mm(The thickness of the hob can be customized)

Machining accuracy

±0.1mm

Hob life

>One million times

Capacity

semi-automatic 400 ea/h

Channeling molds

18650,26650,etc.

Channeling time

0-99s(adjustable)

Dimensions

720(L)*380(W)*480(H)mm

Weight

52Kg

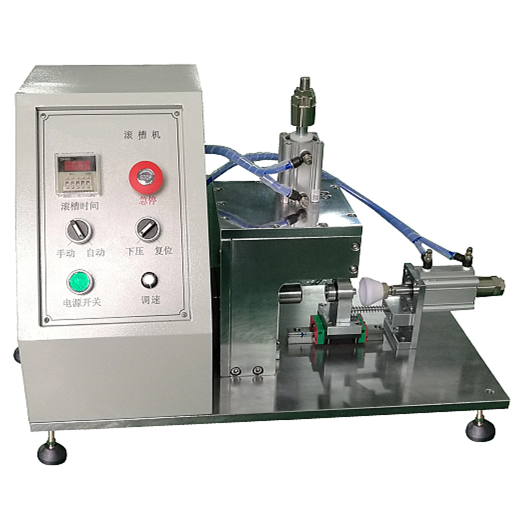

vUltracapacitor Production Equipments



 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
