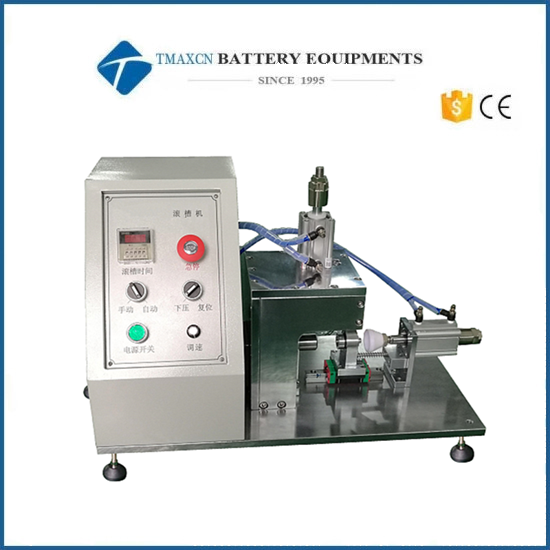

Lab Ultracapacitor Roll Grooving Groover Machine For Supercapacitor
Model Number:
TMAX-ZGC32Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Ultracapacitor Roll Grooving Groover Machine For Supercapacitor
It is used in the channeling process of cylindrical battery that is producted in laboratory and enterprise in small scale.
CE Certificate semi-auto grooving machine for all kinds of cylindercial battery 18650, 26650, CR123A and supercapacitor with changing die.
Functional characteristic:
The channeling molds that are equipped withstandard 18650 cylindrical battery;
It can be used in the channeling process of the steel shells of 26650 and other cylindrical battery by relace molds;
The dimension of the channeling can be adjusted slightly,the size is small,which makes it easy to operate and the appearance is attractive;
The channeling is high precision and the dimension is stable.
SPECIFICATIONS:
Model |
TMAX-ZGC32 Roll Groove Machine |
Power source |
AC200V/50HZ |
Total power |
200W |
Air source |
0.5-0.7Mpa |
Depth of the channeling |
1.2-2.0mm(adjustable) |
Width of the channeling |
1.5mm(The thickness of the hob can be customized) |
Machining accuracy |
±0.1mm |
Hob life |
>One million times |
Capacity |
semi-automatic 400 ea/h |
Channeling molds |
18650,26650,etc. |
Channeling time |
0-99s(adjustable) |
Dimensions |
720(L)*380(W)*480(H)mm |
Weight |
52Kg |
