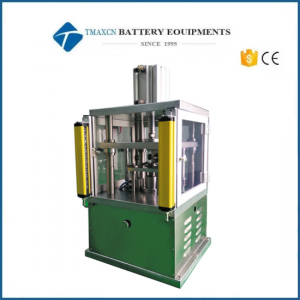

Ultracapacitor Electric Sealing Machine For Supercapacitor
Model Number:
TMAX-XFK26Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Wechat:13506084915
Ultracapacitor Electric Sealing Machine For Supercapacitor
For columnar super capacitor capping of laboratories.
This model suitable for your max super capacitor:D30mm*L50mm
Functional characteristics:
l Motor-driven spinning and capping principle adopted.
l Standardized fixtures used for quick replacement of fixtures
l Reliable capping.high accuracy and uniform size.
l Accuracy servo motor locating
l Standardized capping roller.standard configuration(18650,non-standard aluminum cases are customized)
Technical parameter
Model |
TMAX-XFK26 |
Power source |
AC220v/50hz |
Air source |
0.5-0.7Mpa |
Standard accessories |
Sealing mould for supercapacitor diameter 30mm*length 50mm |
Optional accessories |
18650,26650,32650,50100......standard aluminum shell mould |
Capacity |
5-10ea/min(Depending on manual proficiency ) |
Dimensions |
324*352*600(mm). L*W*H |
Weight |
110kg |
