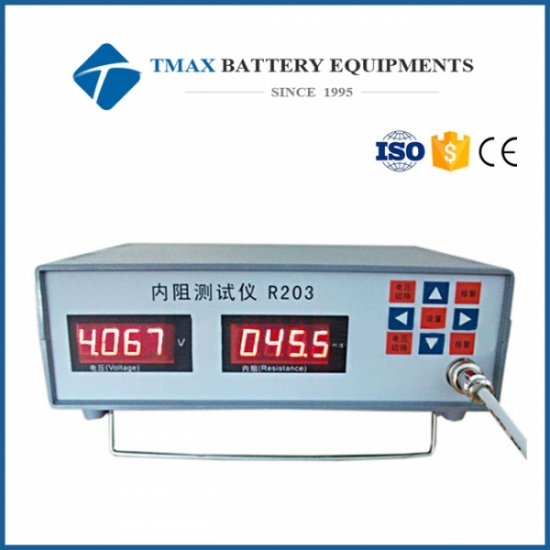

Lab Battery Internal Resistance Tester Analyzer For Lithium Battery R&D

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

1 Usually the smaller resistance for the battery or battery core, the higher quality for the battery.

So testing battery resistance is a rapid and accurate method to check battery performance.

2 TMAX-R203 Battery internal resistance tester adopts four line acquisition method, can test the resistance orimpedance with or without power supply.

3 This battery internal resistance tester is widely used for battery manufacture and battery sellers to check the battery performance.

Machine model	Battery internal resistance tester TMAX-R203
Source voltage	AC110V-240V, 50/60HZ
Power	10-30W
Testing speed	100ms
Advantages	Can connect with computer Suitable varies kinds battery and battery core Buzzer alarm
Voltage test V1	Voltage range : 0-4.999V
	Minimum resolution : 0.001V
	Accuracy : ±0.002V
Voltage test V2	Voltage range : 0-29.99V
	Minimum resolution : 0.01V
	Accuracy : ±0.01V
Resistance test R1	Resistance range : 0.1—200 mΩ
	Minimum resolution : 0.1mΩ
	Accuracy : ±0.5 mΩ
Resistance test R2	Resistance range :1—2000 mΩ
	Minimum resolution : 1mΩ
	Accuracy : ±2 mΩ
Suitable batteries	Lithium battery, lithium pouch cell(Lithium polymer battery), Nickel metal hydride, nickel cadmium battery, lead-acid battery and so on.
Dimension	25019090mm
Weight	2kg
Warranty	One Year limited warranty with lifetime support

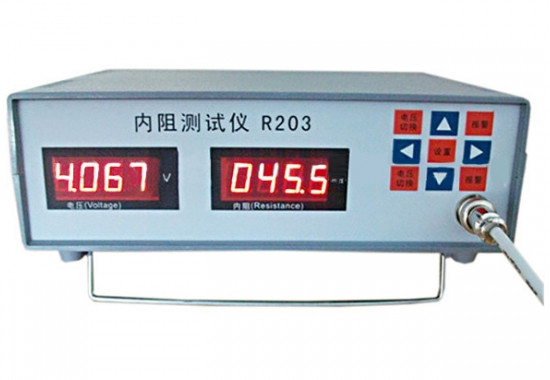

Internal resistance tester

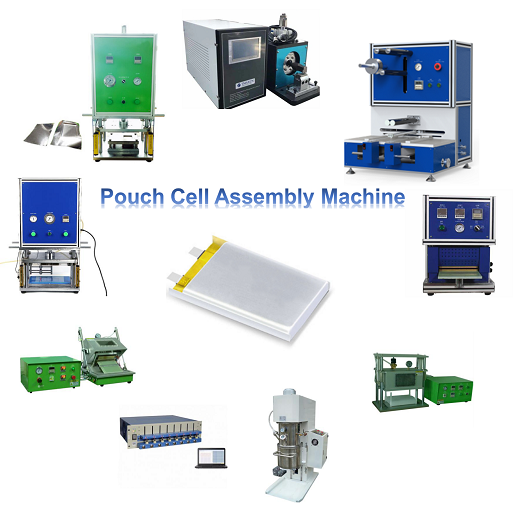

pouch cell assembly machine

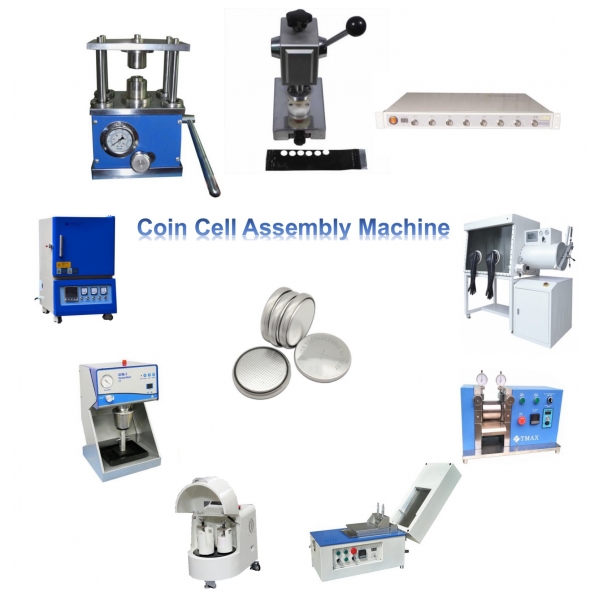

coin cell assembly machine

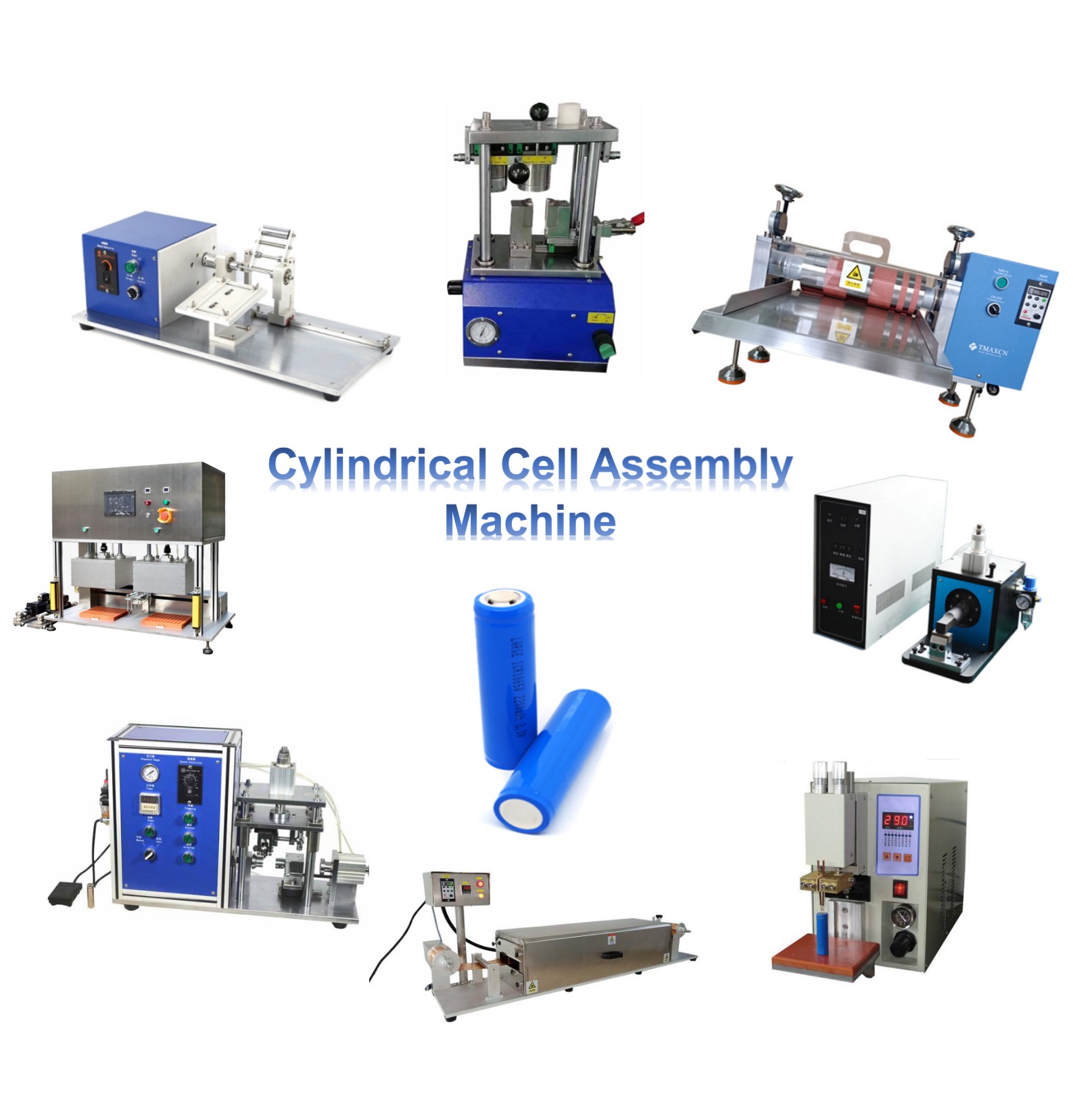

cylindrical cell assembly machine
