Lab Battery Vacuum Sealer Sealing Machine for Pouch Cell Pre-Sealing

  • Model Number:

    TMAX-YF
  • Type:

    Vacuum Sealing Machine
  • Compliance:

    CE certificate
  • Warranty:

    Two Year Limited Warranty With Lifetime Support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

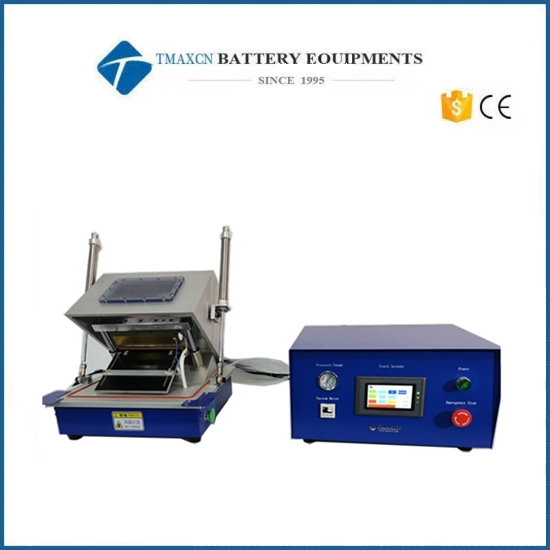

Lab Battery Vacuum Sealer Sealing Machine for Pouch Cell Pre-Sealing


This equipment is mainly suitable for vacuum hot sealing of pouch cell after electrolyte filling and standing; the machine can automatically complete vacuum thermal sealing of aluminum laminated film by precisely controlling the main vacuum pumping box and pneumatic heat sealing components.


Main features

* the head is made of copper material, which has good heat transfer effect, saves power consumption, improves work efficiency and saves energy compared with similar products;

*The pressure of upper and lower heads can be adjusted by pressure regulating valve to meet the requirements of different process parameters;

*The upper and lower heads are driven by cylinder and guided by two linear guide sleeves, which can move up and down flexibly and guide accurately

*Ensure the requirement of parallelism after edge sealing;

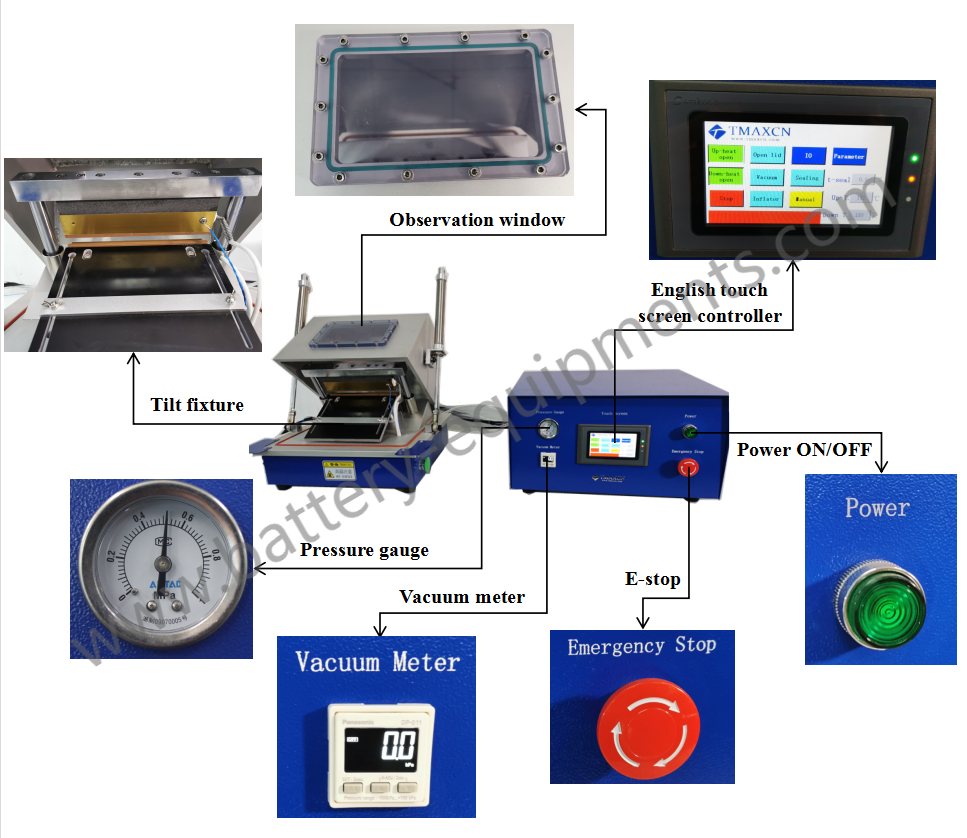

*Through the perspective window, we can observe the changes in the cavity when working.

*The cover cavity is driven by cylinder and guided by rotating guide sleeve, which can move up and down flexibly and guide accurately to ensure the sealing requirements of products.

*It can be used for batteries of different specifications, and the adjustment is simple and convenient.

*The main engine and control box are designed separately, so that the machine can work in glove box or on assembly line.

*Simple operation, beautiful appearance, small volume and light weight.


Specification

Chamber

The chamber is made of aluminum alloy, which is corrosion resistant and has a firm structure;

Vacuum degree

The vacuum degree can be adjusted up to -95Kpa (the buyer shall provide the vacuum pump);

Head temperature

Room temperature~250℃, temperature adjustable;

Temperature control accuracy

±2℃;

Heat sealing pressure

0~7Kg/cm2 adjustable;

Heat sealing time

0~99 seconds adjustable;

Edge sealing width

5±0.4mm (can be customized)

Maximum edge sealing length

200mm

(can be customized, such as 300/400/500mm sealing length)

Seal thickness range

60~300um

Seal thickness accuracy (mm)

Sealing thickness difference between any two points<15um

Air consumption

About 0.2L compressed gas per seal once.

Working speed of air compressor

≥180 times/h

power

Using 300w heating tube, the power consumption when heating is about 0.6KW.

Power Supply

220V/50Hz;

Compressed air source

0.5~0.8Mpa; When used in the glove box, the cylinder power source must use the same working gas used in the glove box;

Working chamber

470mm*485mm*435mm;

Control box

420mm*325mm*225mm

Equipment weight

About 50Kg
