Lab Battery Manual Pipette Filler For Coin Cell Electrolyte Filling
Model Number:
TMAX-0.2MLType:
Electrolyte Filling MachineDimension(L*W*H):
20-200ulNet Weight:
5KGCompliance:
CE certificateWarranty:
2 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

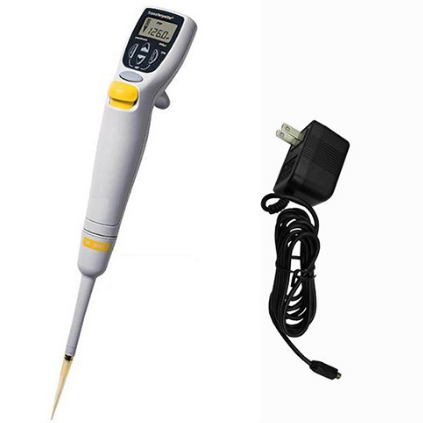

Lab Battery Manual Pipette Filler For Coin Cell Electrolyte Filling
11 The system pipette is an ergonomic, intuitive electronic pipette made in Germany used for dispensing electrolyte (LiPF6 for Liion Battery) to small Coin Cells from battery research and material coating for Spin coating in most material research.
2 This Pipette Filler with soft touch pipette key, adjustable finger rest, light weight and innovative tip cone minimizestatic strain and operational forces, reducing the risk of repetitive stress injuries.
3 TMAX series Pipetting device has five volume ranges for reliable dispensing volumes from 0.5µL to 5mL upon request.
4 Five kinds pipetting mode, wider application range : Choose from five convenient operating modes that are simple to set and simple to use: standard pipette(PIP Mode), sample mixing(PlPmix Mode), reverse pipette(RevPIP Mode), step dispensing(DISP Mode), and gel loading (GEL Mode).
5 According to the need, can charge and discharge;Long battery life, a charge can be used 4000 times.
6 Cooperate with different joint adapter can make pipetting device is suitable for various brands of suction.
|
Single Channel Pipette |
Range |
Accuracy |
Error |
Suction |
||
|
Model |
ul |
≤ ±% |
ul |
≤±% |
ul |
|
|
0.5-10ul |
0.01 |
1.0 |
0.1 |
0.4 |
0.04 |
N,A,F |
|
2-20ul |
0.02 |
1.0 |
0.2 |
0.4 |
0.08 |
N,A,F* |
|
20-200ul |
0.2 |
0.8 |
1.6 |
0.2 |
0.4 |
B,C,G*,H*,l |
|
100-1000ul |
1.0 |
0.6 |
6 |
0.2 |
2 |
D,U,J |
|
500-5000ul |
5.0 |
0.6 |
30 |
0.2 |
10 |
E |
|
Warranty |
Two-years limited warranty with lifetime support |
|||||
|
Package |
Electric digital Pipette - 1pcs 220V AC adapter with charging cable Joint adapter - 2pcs Suctions Operating manual- 1 book |
|||||
