home >Coating Machine >Dip Coater >Lab Five Stations Dip Coater with Stainless Steel Oven Chamber
PRODUCTS LIST
products
Dip Coater
  • Lab Five Stations Dip Coater with Stainless Steel Oven Chamber

    • Lab Five Stations Dip Coater with Stainless Steel Oven Chamber

    • Model Number:

      TMAX-PTL-OV5P-L

    • Compliance:

      CE certificate

    • Warranty:

      Two Year Limited Warranty With Lifetime Support

    • Payment:

      T/T, Credit Card, Paypal, LC, Western Union

    • Delivery Time:

      3 Days
    contact now
    Email:David@battery-equipments.com
    Whatsapp:+86 18659217588
    Wechat:18659217588
    DESCRIPTION

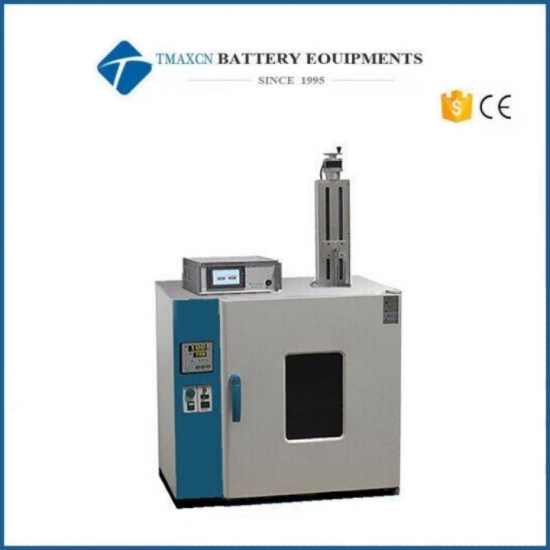

    Lab Five Stations Dip Coater with Stainless Steel Oven Chamber





    Specifications：

    Structure

    · 5 positions programmable rotary stage

    · stepping motor control pulling system with control resolution as low as 1mm/min

    · Stainless steel pulling wire

    · quick sample clip for up to 10" x 3" sample

    · Stainless steel oven chamber

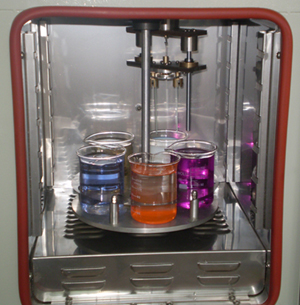

    Rotary dipping stage

    The rotary dipping stage has five slots to place coating solution containers. It is controlled by the program to send each container sequentially in position for sample coating. According to the program which user can coat their sample with one or multiple layers of coating at one go.

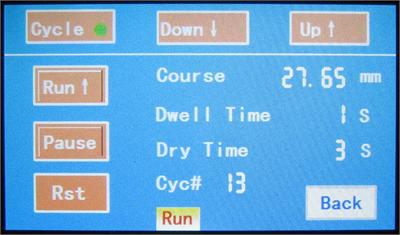

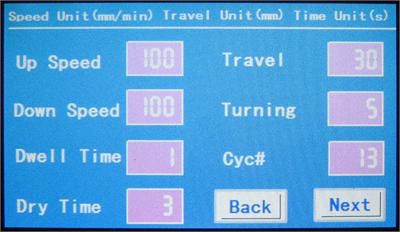

    Touch screen controller

    6" color touch screen controller


    Travelling Distance

    300 mm max.

    Dipping/Pulling Speed

    1-200 mm/min Adjustable

    Max. Working Temperature

    200°C (+/- 1.5°C accuracy)

    Max. Sample Size

    10" x 3"

    Max. Sample Weight

    4 kg

    Dipping/Pulling Motor

    Stepping Motor

    Oven

    · Working Voltage: 208-240V AC

    · Max. Power Consumption: 2300W

    · Inside dimensions: 600 x 500 x 750mm (L W H)    ( 225L)

    Compliance

    CE Certified

    Warranty

    One year limited with lifetime support

    Application Notes

    · In order to get better film coating, the substrate shall be treated by plasma cleaner

    · Use ultrasonic processor to disperse nanopowder or homogenize solution to get better coating

    Net Weight

    100 kg (220lbs)

    Shipping Dimensions

    40"(L) x 40"(W) x 60"(H)

    Shipping Weight

    182 kg (400 lbs)
