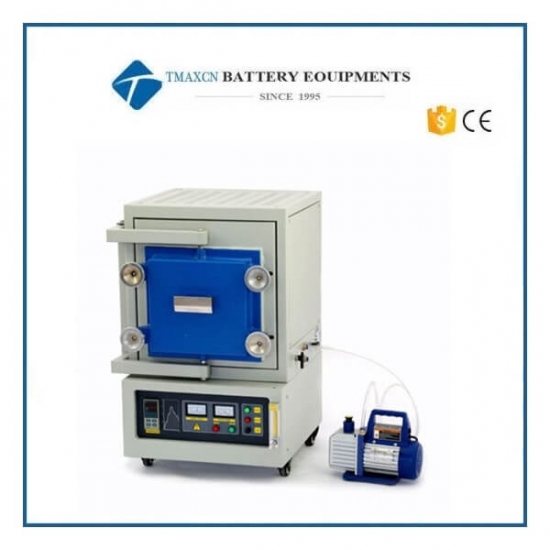

Lab High Temperature 1600°C Interior Controlled Atmosphere Box Furnace
Model Number:
TMAX-1600CAtmosphereCompliance:
CE compliantWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

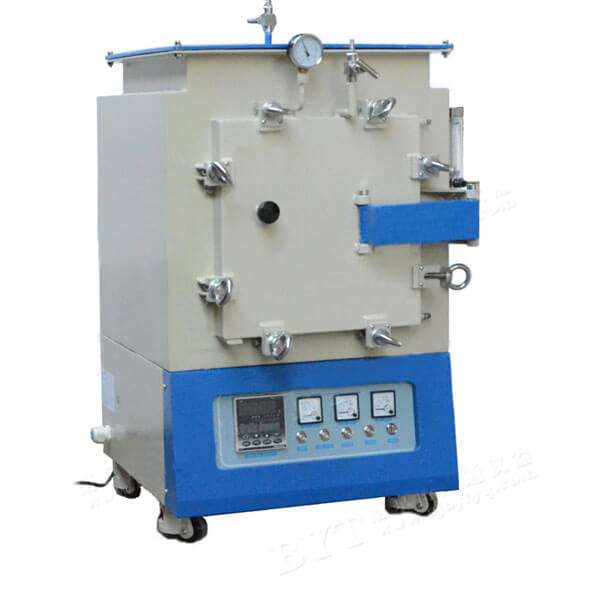

Lab High Temperature 1600°C Interior Controlled Atmosphere Box Furnace
TMAX-1600CAtmosphere has many advantages of uniform temperature field,low surface temperature,heating or cooling promptly and so on. it is the ideal atmosphere muffle furnace for atmosphere protection sintering,atmosphere reducing in Industry, Scientific research institutes, Universities,which offer Heating element of Sic and double layer housing,phase-shift trigger,controlled silicon. Operation system is Shimaden 40-segments digital controller imported from Japan. The chamber is made of Polycrystalline alumina fibre. There is wind cooling system between the double walled housing to help the furnace heat or cool promptly. Sealed housing,silicon gel sealed cover,sealed door with silicon gel gasket and water cooling system,gas float through flow meter,then come out from back side, there are many gas inlets and gas outlets on the furnace with burning mouth,which can pre-vacuum and pass H2,Ar,N2,O2,CO,NH3 and so on.
Features:
1.Temperature controller: Shimaden FP93
40 programmable segments (Shimaden fp93 made in Japan), It can separate into 4,2,1
programs, ie. 4x10 segments.
FP93 have 6 PID controls, different PID are used for low,middle,high temperature for
precise control.
Over-temperature and over-current protection, shutdown automatically when
thermocouple is broken( it will shut down power when temperature is higher than
1420⁰or thermocouples is broken, "ON" on the board is off and "OFF" is on)
There is Fahrenheit (F) and Celsius (C) for option.
With 485 communication interface: which can stop the furnace automatically.
2.Cover opening protection system: overtravel-limit switch is installed to protect user, it will cut
off power when the cover is opened.
3.Chamber:it is imported from Japan, good performance of heat preservation, high
reflectivity, even temperature field, good ability of anti thermal expansion and cold contraction.
4.Heating elements:This furnace is installed with Sic to ensure uniform temperature field and long
service life.
5.Leakage protection function:the furnace is installed with leakage air switch, it will cut off power
Automatically when electricity leak or current exceed rated current.
6.Software controlling system:this furnace can control every parameter directly and observe PV
and SV on the computer by communication interface and software, computer can draw and save
actual heating curve, it is convenient to call these dates at any time.
7.Controlling system:
Power control: Chint; Controlled silicon:Germany Semikron 106/16E; Trigger:Phase-shift trigger
8.Gas system:floating flow meter or digital flow meter is for option to control gas Speed.
9.Vacuum system: Vacuum level can be 10-1 or 10-4 with German molecular pump. TW-1.5
vacuum pump is for option.Pre-vacuuming can help remove air in the chamber quickly.
Parameters
Item No. |
I |
II |
III |
IV |
V |
VI |
Chamber size (DxWxH) |
150X160X160 mm |
200X200X200 mm |
300X200X200 mm |
300X250X250 mm |
400X300X300 mm |
500X400X400 mm |
Power |
3KW |
5KW |
7KW |
9KW |
13KW |
18KW |
Voltage |
110-220V |
380V |
||||
Phase |
|
|
||||
Max. Temperature |
1600℃ |
|||||
Constant temperature |
1550℃ |
|||||
Thermocouple |
Type B |
|||||
Heating Element |
MoSi2 |
|||||
Heating Rate |
≤30℃ /min |
|||||
Recommended Heating Rate |
≤15℃ /min |
|||||
Temperature Accuracy |
+/- 1°C |
|||||
Temperature Controller |
Shimaden fp93 (imported from Japan) with 4 programs and 40 segments (ie. 4 x 10 segments or 2 x 20 segments) |
|||||
Chamber Material |
Polycrystalline 98% alumina fibre. Imported from Japan, |
|||||
Trigger |
Phase-shift trigger |
Maximum temperatures
NO2,CO2,O2,Air |
1600℃ |
He,Ar,Ne |
1550℃ |
SO2 |
1500℃ |
CO,N2 |
1500℃ |
Wet Hydrogen(H2) |
1300℃ |
Dry Hydrogen (H2) |
1250℃ |
Part name |
Quantity |
GF Series atmosphere furnace |
1pc |
Thermocouple GF11Q-B: Type K GF11Q: Type K GF14Q: Type S GF16Q: Type B GF17Q: Type B |
1pc |
Alumina cushion block |
1pc |
Furnace door block |
1pc |
Stainless steel clamp |
1pc |
Thermal gloves |
1pair |
Alumina crucible |
5pcs |
Heating element GF11Q-B: Kanthal resistance wire GF11Q: Kanthal resistance wire GF14Q: Sic GF16Q: MoSi2 GF17Q: MoSi2 |
2pcs |
Spare fuse |
2pcs |
485 computer interface port |
1set |
Water pump |
1pc |
Owner manual |
1pc |
Shimaden fp93 temperature controller software and manual |
1pc |
