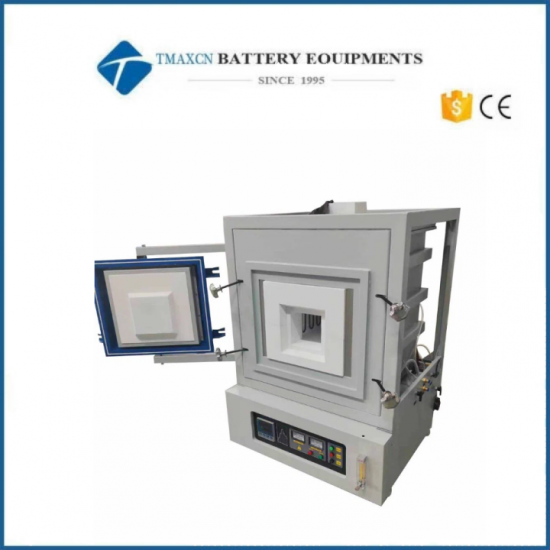

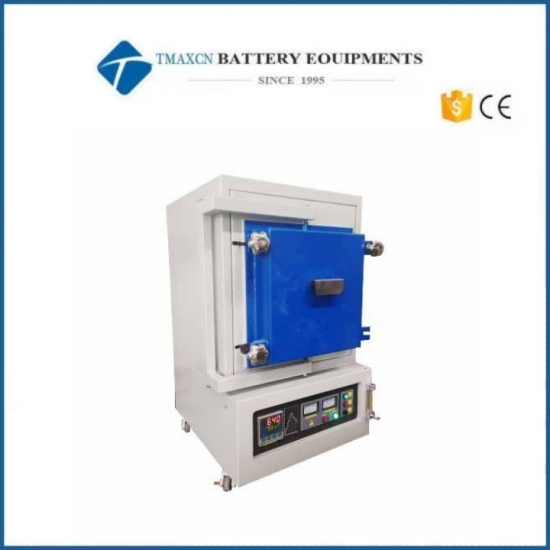

Lab High Temperature 1700C 1800C Box Type Atmosphere Furnace

Furnace size

Depth 400* width 300* height 300mm

Maximum temperature

1800℃

Common use temperature

0-1700℃

Power

16kw

Heating element

1800 c silicon molybdenum rods

Thermocouple

Type B

Temperature control accuracy

±1℃

Operating Voltage

380V 50hz/60hz

Maximum vacuum

-0.1Mpa

Furnace structure

Integrated compact design, stepped splicing structure, in line with the laws of mechanics, uniform force during heating, heat energy is not easy to lose.

Furnace material

High-quality high-alumina polycrystalline ceramic fiber (alumina>92%), resistant to rapid cold and rapid heat, and excellent thermal insulation effect.

Temperature control

Using the international Eurotherm 3504, high-performance temperature and process controllers, they combine the advantages of liquid crystal display and microprocessor technology, showing a completely reliable and superior control effect. The five-digit LED with extra-large font provides a clear and bright display of the process value, the four-line LCD displays important customized or standard information to the user, and the program setter can store up to 50 programs. With special function blocks such as carbon potential calculation, special control functions can be performed, and the software and hardware adopt a modular structure.

Heating rate

0--20℃/min can be set arbitrarily, suggest ≦10℃/min

Safety protection

It has protection functions such as partial temperature protection, over temperature protection, broken couple protection, over current protection, over pressure protection, etc.

Passable gas

Various inert gases such as oxygen, carbon monoxide, nitrogen, argon, and water vapor.

Gas control

The air inlet can be provided with one or more near air ports, and each air inlet is equipped with a needle valve, which is connected to a vacuum gauge. One air outlet is connected to the air outlet, and all holes are equipped with needle valves. Equipped with a vacuum pump.

Sealing method

The 304 stainless steel flange is used, which is easy to install and unload, anti-oxidation, anti-acid and alkali, and double-layer sealing to ensure the tightness.

Warranty period

Furnace body is guaranteed for one year (except heating body), lifetime warranty

Standard accessories

One vacuum pump, one crucible tongs, one pair of anti-high temperature gloves, one instruction manual, certificate of conformity, and warranty card.

Package

Packed in wooden box and filled with foam, plastic film wraps the furnace body.
