Lab Roll Ball Mill For Ultra-fine Grinding And Mixing

  • Model Number:

    TMAX-QM
  • Type:

    Planetary Ball Mill
  • Input Power:

    0.37KW
  • Dimension(L*W*H):

    730*415*260mm
  • Compliance:

    CE certificate
  • Warranty:

    2 years limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION


Lab Roll Ball Mill For Ultra-fine Grinding And Mixing


Lab roll ball mill is a kind of equipment used for ultra-fine grinding and mixing for laboratory and small batch production. The machine is preferred equipment for scientific research, education, experiment and production due to its advantages such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity. It is widely applied to industries of electronic material, magnetic material, biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials, and etc.


Application of horizontal ball mill

1.Geology and Mineralogy: rock, gravel, sand, minerals

2.Ceramics: porcelain, sintered ceramics, clay, fireclay

3.Chemistry: pesticides, fertilisers, salts, inorganic and organic materials

4.Biology: plants, leaves, freeze-dried samples

5.Pharmaceuticals: ophthalmological agents, gels, creams, extracts, drugs, pastes, dragees, tablets

6.Metallurgy: ores, sinters

7.Material technology: pigments, precious materials, new materials, alloys, mechanical alloying and activating

8.Analysis preparation: spectroscopy, X-ray fluorescence, X-ray structure analysis, chromatography


Features of horizontal ball mill

1. Compact structure, easy operation

2. High efficiency and uniform granularity

3. Milling pot in different size can be put on the driven rubber roller within a certain range by means of adjusting space between the rubber rollers.

4. It is convenient to change pots and suitable for both wet and dry grinding.

5. More kinds of sample material can be ground each time.

6. It can be operated intermittently or continuously.

7. Timing can be set as per users’ needs.

8. Suitable for ultrafine grinding with high efficiency of pulverizing.

9. Rubber roller is made of special materials and durable in use.

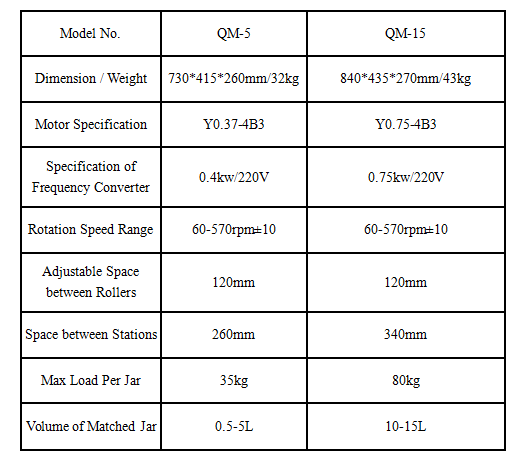

Technical specifications of horizontal ball mill

technical specifications of horizontal ball mill


Mill Jars  and Mill Balls of horizontal ball mill

We provide all kinds of mill jars in any matched size, which are made from following materials of 304 stainless steel ,zirconia,corundum,tungsten carbide,nylon,PTFE,PU,agate and etc.Available mill balls 304 stainless steel,zirconia,alumina,tungsten carbide,agate and etc.

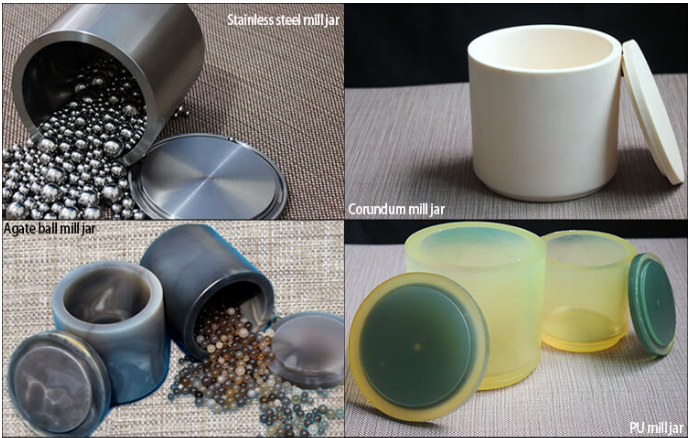

material of ball mill1

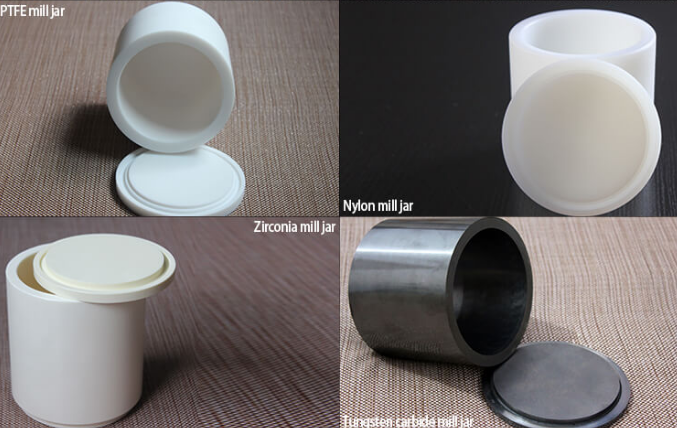

material of ball mill2

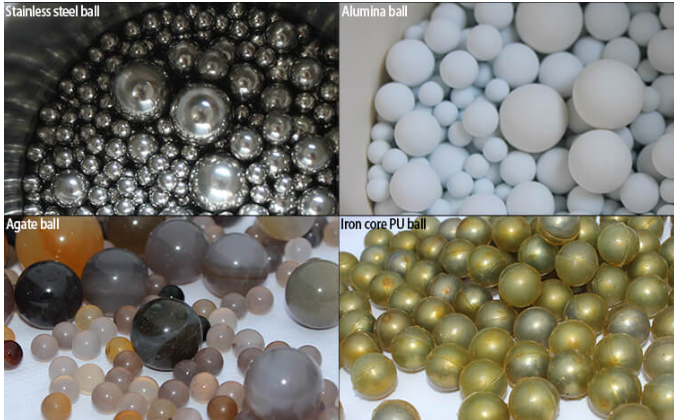

material of ball mill3

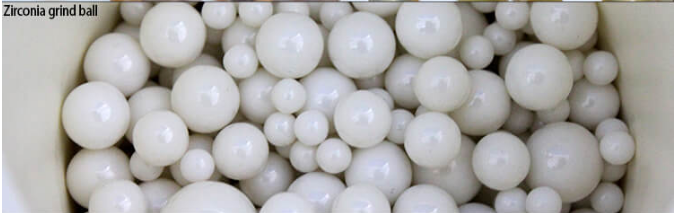

material of ball mill4

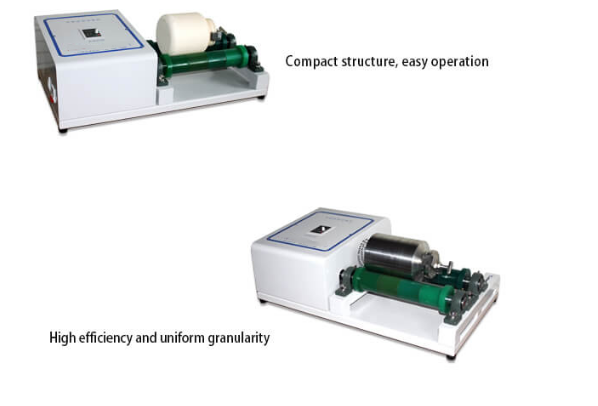

roll ball mill1

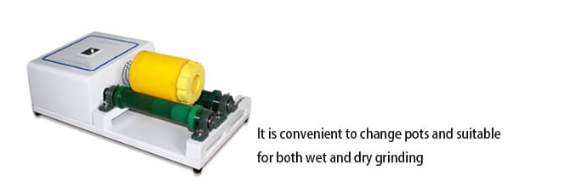

roll ball mill2
