Lab Rolling Machine Altar Jar Ball Mill For Ultra-fine Grinding And Mixing
Model Number:
TMAX-RBType:
Planetary Ball MillInput Power:
0.75KWCompliance:
CE certificateWarranty:
1 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

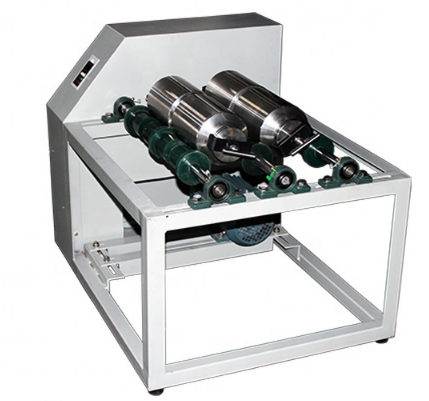

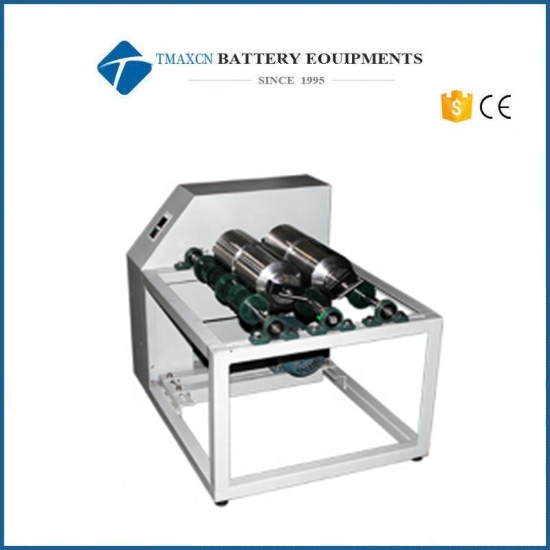

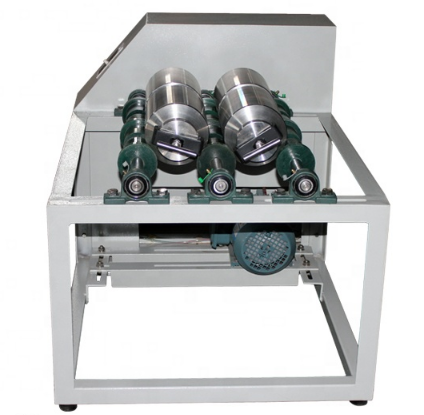

Lab Rolling Machine Altar Jar Ball Mill For Ultra-fine Grinding And Mixing
Product Description
Jar mill is a kind of equipment used for ultrafine grinding and mixing for laboratory and small batch production,
which is also called rolling machine altar. The machine is preferred equipment for scientific research, teaching,
experiment and production due to its advantages such as beautiful design, compact structure, easy operation,
high efficiency,and uniform granularity. It is widely applied to industries of electronic material, magnetic material,
biological medicine, ceramic glaze, metal powder, nonmetallic minerals, new materials and etc. Optimal design of rotating
speed is adopted in the machine, where mill jar is dragged to rotate by rubber roller, balls inside the jar make incline flow
movement and disperse materials, thus it obtains best effects of grinding. As result, materials are grinded to micron powder.
Timing control panel is adopted in the machine with controlling functions of pausing and cumulative timing, and you may set
working time according to requirement at any time. It saves time and labor, and is easy for operating.
Principle
When ball mill works, the grinding media and the materials of the cylinder are rotated to a certain height. Due to the gravity,
they fall down from the tube wall. The materials are crushed by impact action of the grinding media, and friction and shearing
action of grinding media's rolling and sliding. The final granularity can be amounted to 5μm-13μm.
Matched Accessory - Mill Pots and Mill Balls
Besides the ball mill machine, our factory provides all kinds of mill pots stainless steel pot, zirconiapot, alumina pot, nylon pot, PU pot, tungsten pot, hard metal pot tempered nylon pot etc. Further, we alsoprovide stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, etc.
